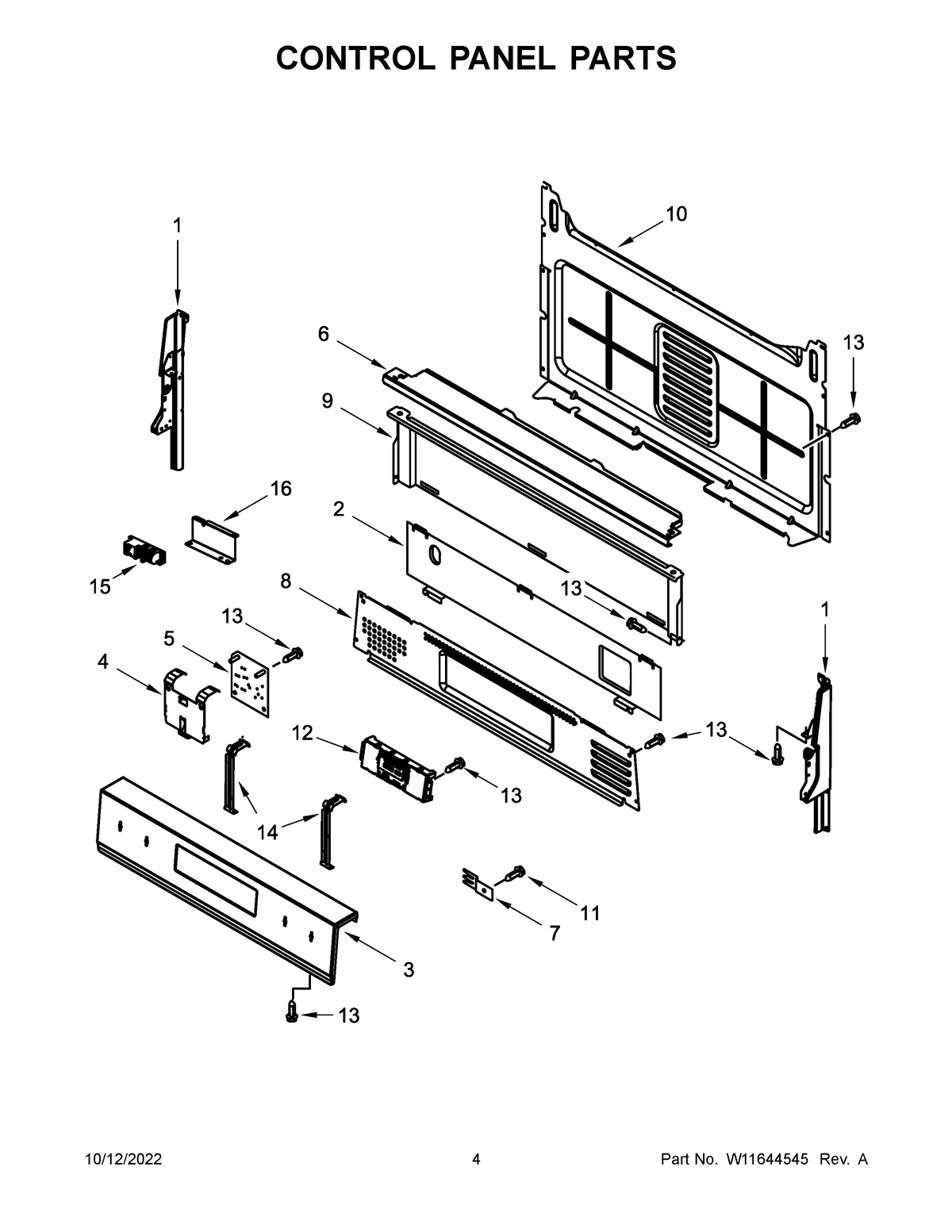

MGR7700LZ4 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	W11026866 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	W10158780 Whirlpool Rear Cover
11	WP3196557 Whirlpool Screw
12	W11620569 Whirlpool Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	WPW10475149 Whirlpool Spark Module
16	W10901176 Whirlpool Bracket Assembly
