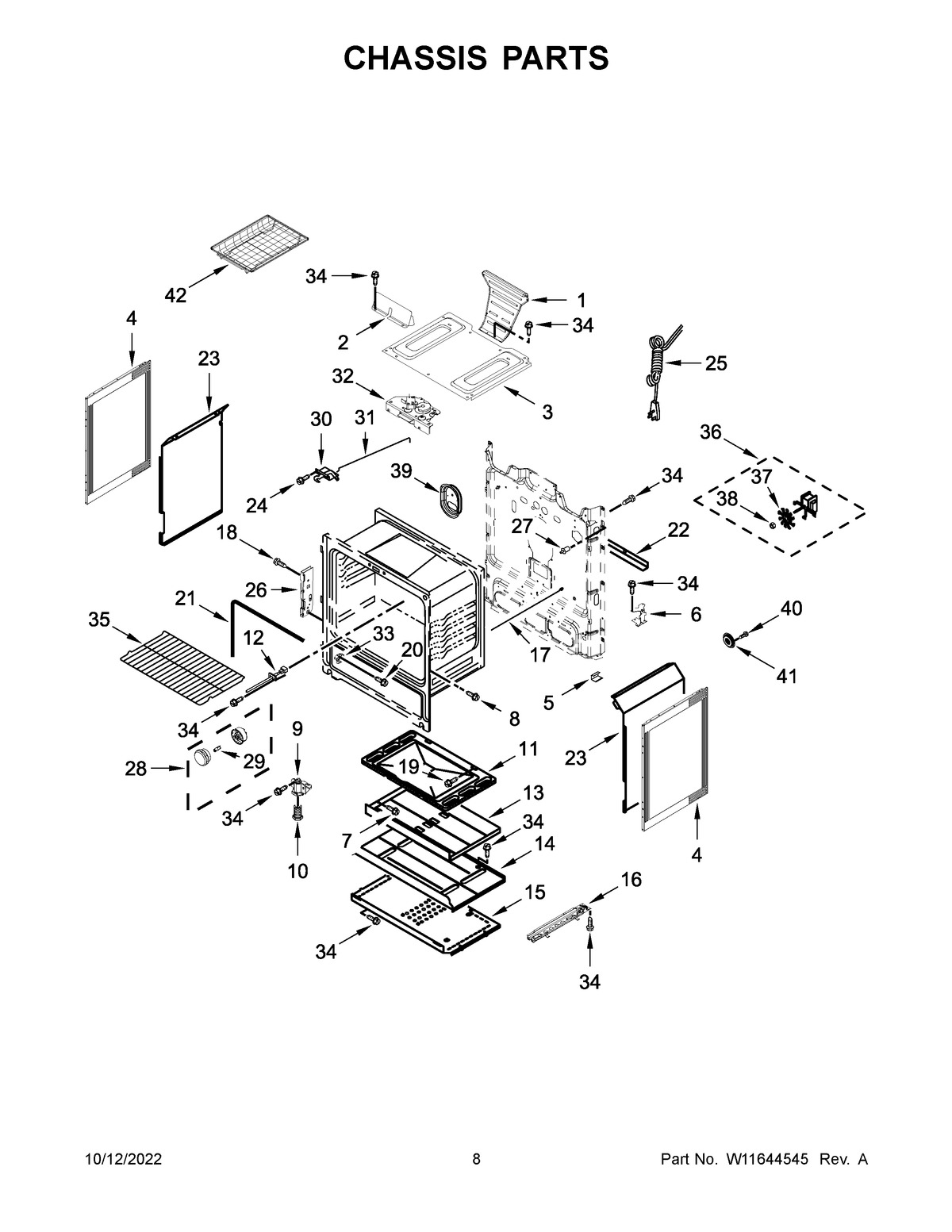

MGR7700LZ4 05 – CHASSIS PARTS

Products

PositionProduct
NIW11688737 Whirlpool Insulation
NIW11684915 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4W11730303 Whirlpool Side Panel
5W10137382 Whirlpool Clip
68523249 Whirlpool Oven Support Bracket
9WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12SENSOR-RANGE
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16AWPW10306546 Whirlpool Base Rail
179757239 Whirlpool Oven Door Rod
18W10777162 Whirlpool Screw
19W10379120 Whirlpool Screw
20Screw
21W11542153 Whirlpool Door Gasket
22W10435470 Whirlpool Brace
23AW11379943 Whirlpool Retainer
23W11379353 Whirlpool Retainer
24W11169708 Whirlpool Screw
25W11582239 Whirlpool Range Power Cord
26W10647259 Whirlpool Hinge Receiver
27SWTCH-LITE
28W11594170 Whirlpool Light Socket
29BULB-LIGHT
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
33W10807823 Whirlpool Drawer Glide
34SCREW
35RACK-OVEN
36W11548751 Whirlpool Convection Fan
37W11548753 Whirlpool Convection Fan
38W11548755 Whirlpool Nut
39W10134126 Whirlpool Cover
40WP4449809 Whirlpool Screw
41WPW10134124 Whirlpool Fan Cover
42W11692811 Whirlpool Fryer Basket
