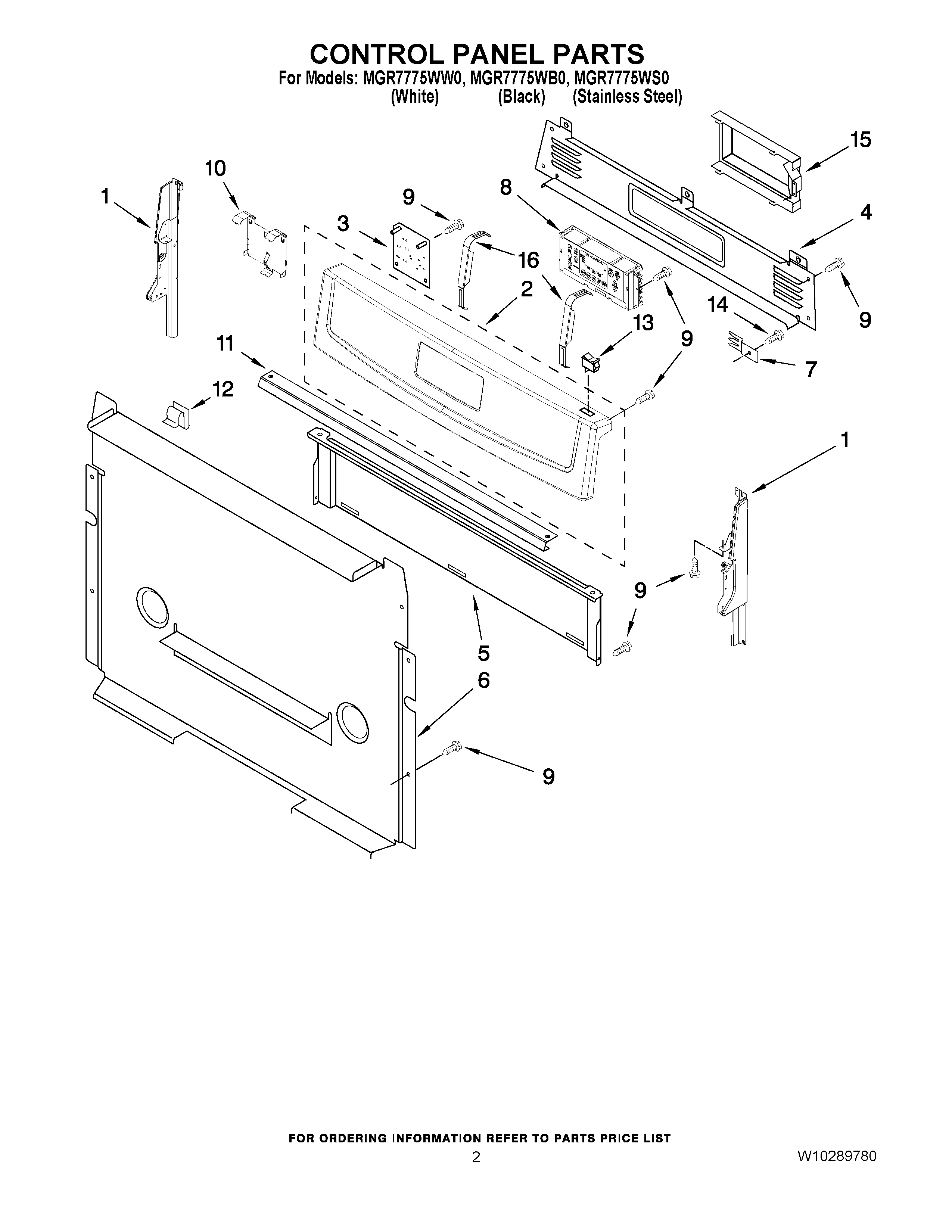

MGR7775WB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2MAY W10225555
2MAY W10225553
2MAY W10225554
3MAY 9758080
4COVER, UPPER
5SHIELD, HEAT
6Cover, Back
7BRACKET, REAR COOKTOP
8MAY W10236272
8MAY W10236273
9SCREW
10Brkt-Mntg, DSI
11BRKT-MNTG,CONSOLE
12MAY 8273564
13SWITCH, ROCKER (BLACK)
13SWITCH, ROCKER (WHITE)
14SCREW
15Cover
16BRACKET, MOUNTING, EOC
