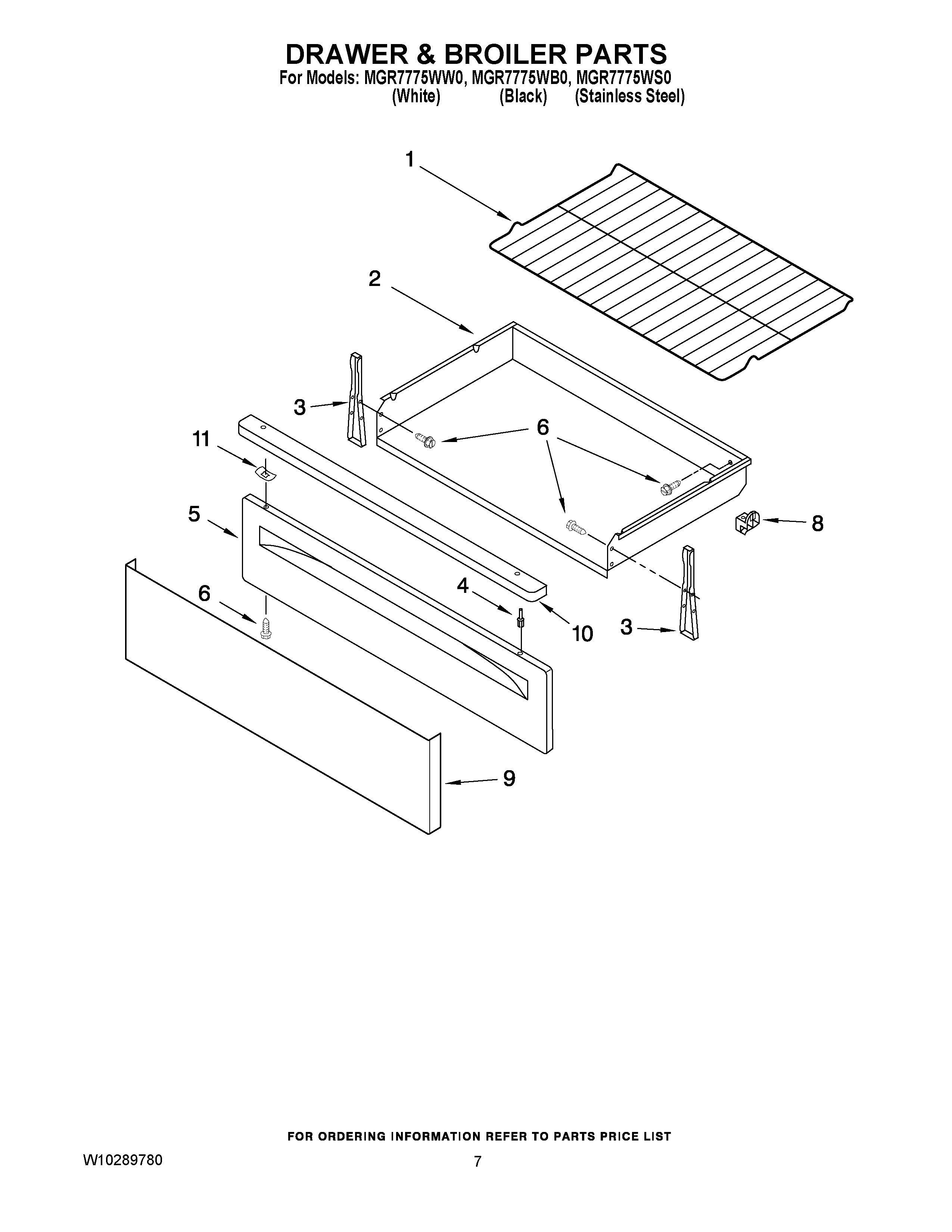

MGR7775WB0 05 – DRAWER & BROILER PARTS

MGR7775WB0 05 – DRAWER & BROILER PARTS

Written by

in

MGR7775WB0 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY 9761031
3	Bracket, Drawer(2)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	MAY W10022100
5	MAY W10022090
6	Screw (Black)
8	GLIDE, DRAWER
9	PANEL (STLS STEEL)
10	Handle(Stls.Model)
11	CLIP(STLS.MODEL)
