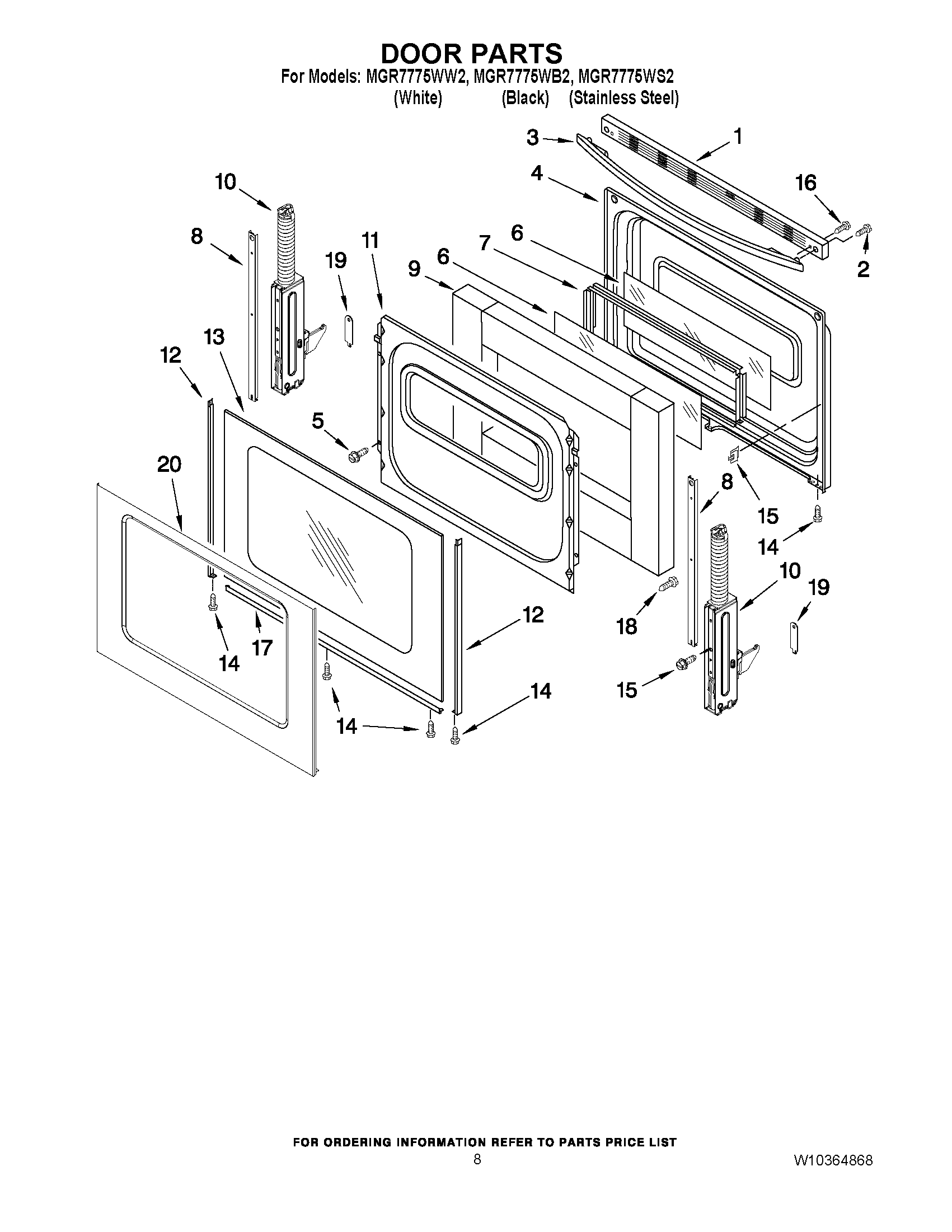

MGR7775WB2 06 – DOOR PARTS

MGR7775WB2 06 – DOOR PARTS

Written by

in

MGR7775WB2 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323584
3MAY W10323581
3MAY W10171750
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8STRAP, DOOR
9INSULATION, DOOR STRIP
10HINGE, DOOR (PASSIVE)
10HINGE, ACTIVE (WITH SPRING)
11RETAINER, INSULATION
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
13MAY W10106405
13GLASS, OUTER (WHITE)
13GLASS, OUTER (STAINLESS)
14MAY 3196160
15CLIP, PANEL
16SCREW
17TRIM, LOWER (BLACK)
17TRIM, LOWER (WHITE)
18SCREW
19Clip,Door Mntg(2)
20GLASS, OUTER (STAINLESS)
