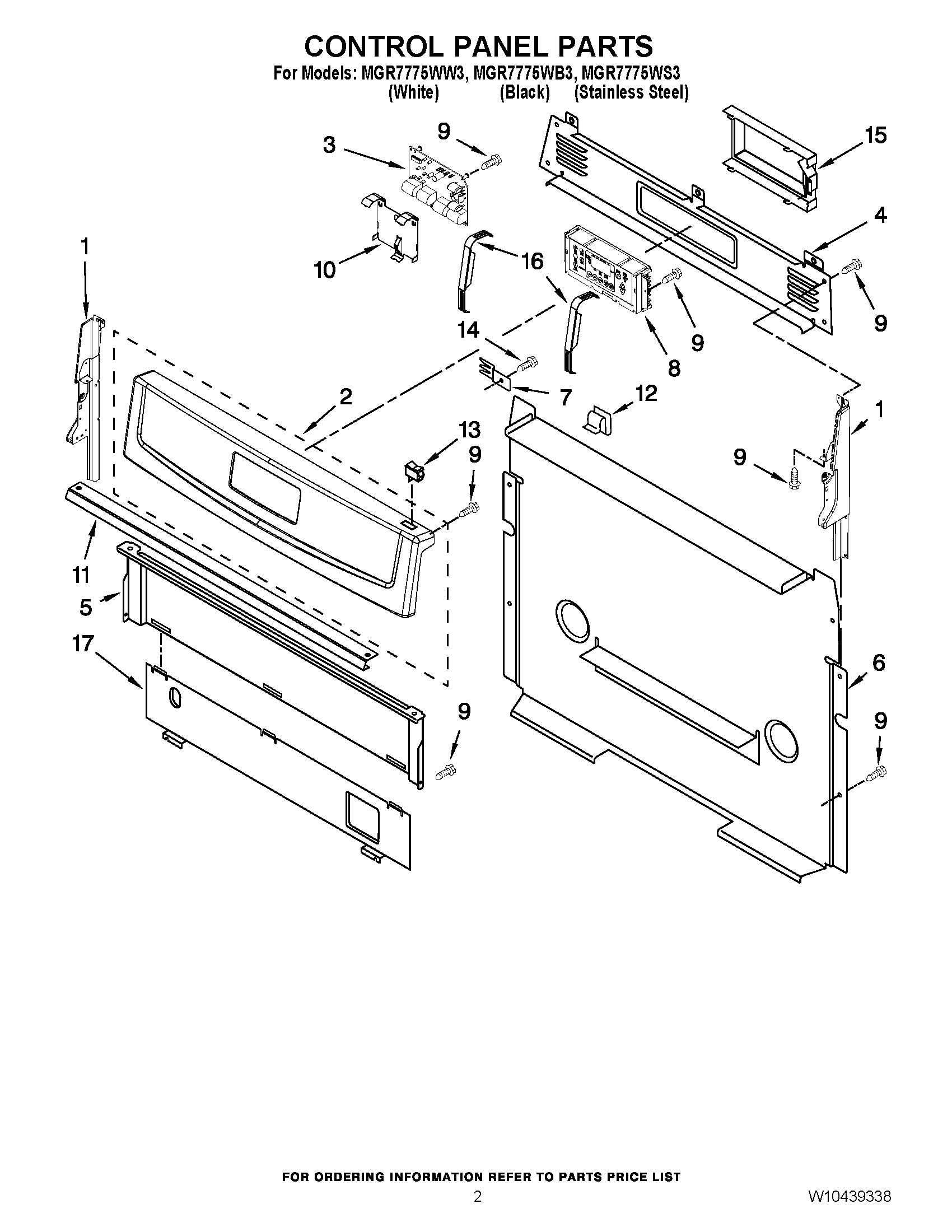

MGR7775WB3 02 – CONTROL PANEL PARTSadmin2025-04-26T09:14:28+00:00MGR7775WB3 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | MAY W10292036 |
| 2 | MAY W10292035 |
| 2 | MAY W10292034 |
| 3 | MAY W10331686 |
| 4 | COVER, UPPER |
| 5 | SHIELD, HEAT |
| 6 | Cover, Back |
| 7 | BRACKET, REAR COOKTOP |
| 8 | MAY W10271779 |
| 8 | MAY W10271780 |
| 9 | SCREW |
| 10 | Brkt-Mntg, DSI |
| 11 | BRKT-MNTG,CONSOLE |
| 12 | MAY 8273564 |
| 13 | SWITCH, ROCKER (BLACK) |
| 13 | SWITCH, ROCKER (WHITE) |
| 14 | SCREW |
| 15 | Cover |
| 16 | BRACKET, MOUNTING, EOC |
| 17 | SHIELD, HEAT |
