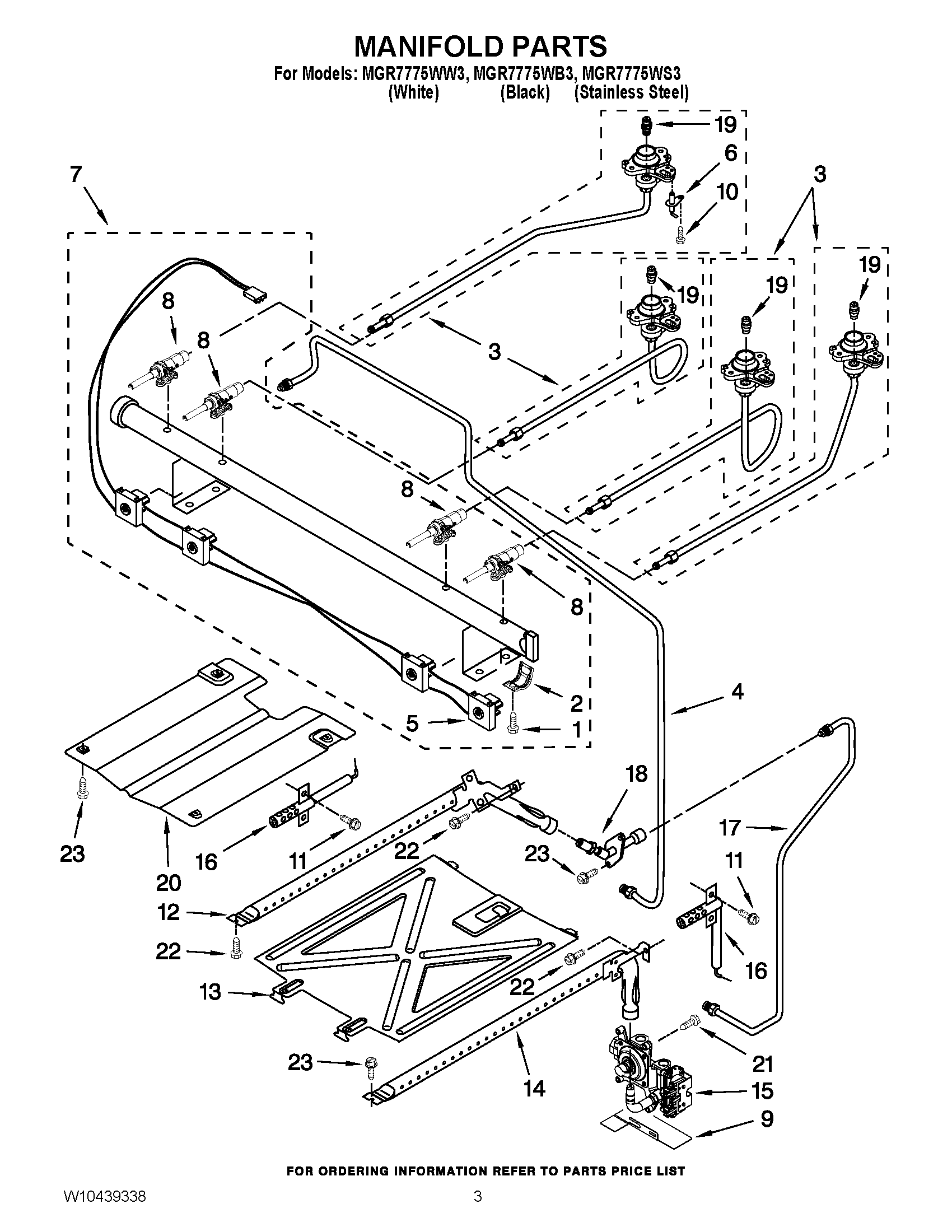

MGR7775WB3 03 – MANIFOLD PARTS

MGR7775WB3 03 – MANIFOLD PARTS

Written by

in

MGR7775WB3 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 4)
1SCREW, VALVE
2BRACKET, SADDLE VALVE
3MAY W10157418
3MAY W10170346
3MAY W10170345
3MAY W10157415
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314241
8VALVE, GAS (RIGHT REAR)
8VALVE, GAS (LEFT REAR)
8VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9BRACKET, AEGIS
10MAY 8273062
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15MAY W10224914
16Igniter (Broil)
16ELECTRODE, BAKE
17TUBE, BROILER SUPPLY
18MAY W10340259
19ORIFICE, BURNER (LEFT FRONT)
19ORIFICE, NATURAL (5K) (RIGHT REAR)
19ORIFICE, NATURAL (9.5K) (LEFT REAR)
20SPREADER, FLAME (BROILER)
21SCREW
22SCREW
23Screw
