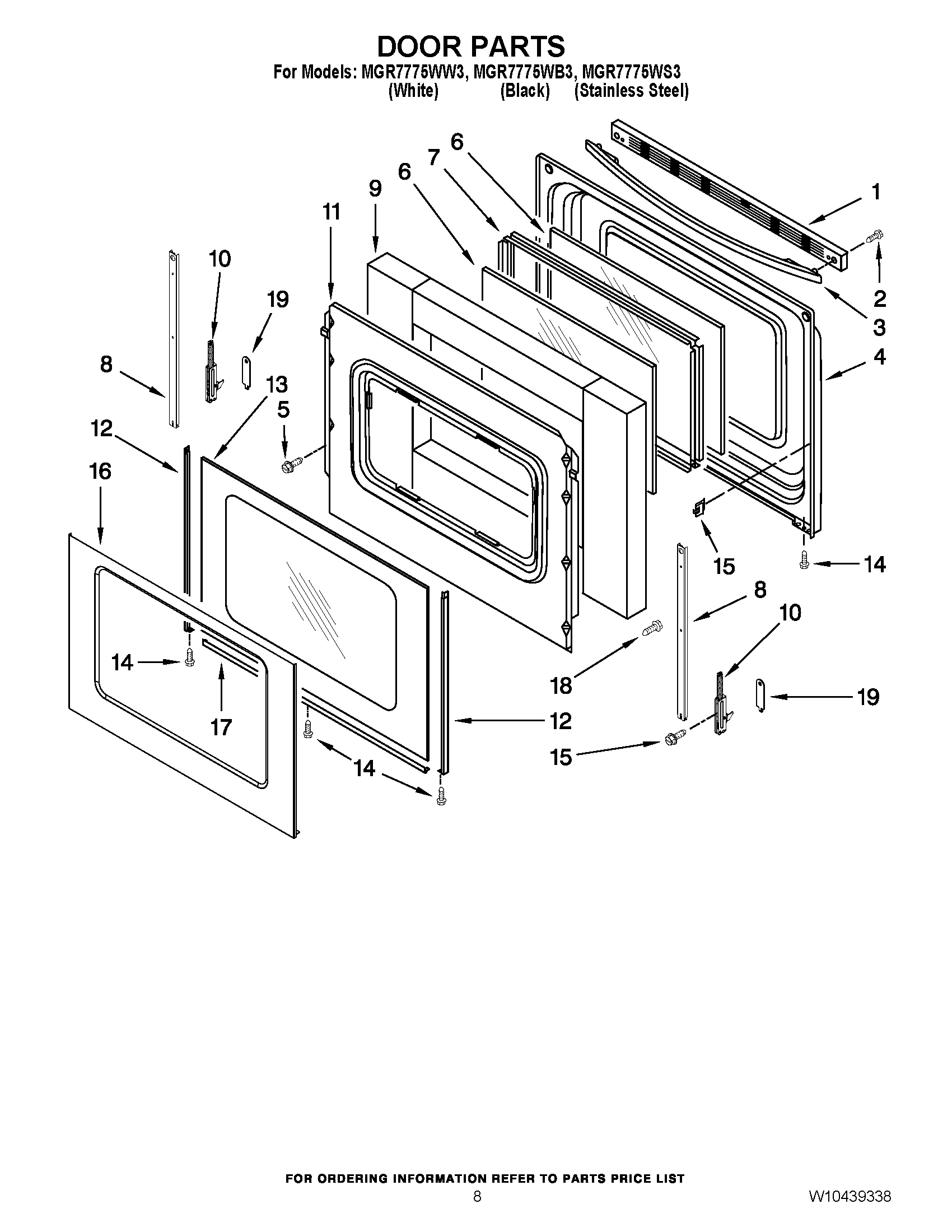

MGR7775WB3 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323581
3	MAY W10171750
3	MAY W10323584
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	STRAP, DOOR
9	INSULATION, DOOR STRIP
10	HINGE, ACTIVE (WITH SPRING)
10	HINGE, DOOR (PASSIVE)
11	RETAINER, INSULATION
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (LEFT))
13	GLASS, OUTER (STAINLESS)
13	MAY W10106405
13	GLASS, OUTER (WHITE)
14	MAY 3196160
15	CLIP, PANEL
16	GLASS, OUTER (STAINLESS)
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
18	SCREW
19	Clip,Door Mntg(2)
