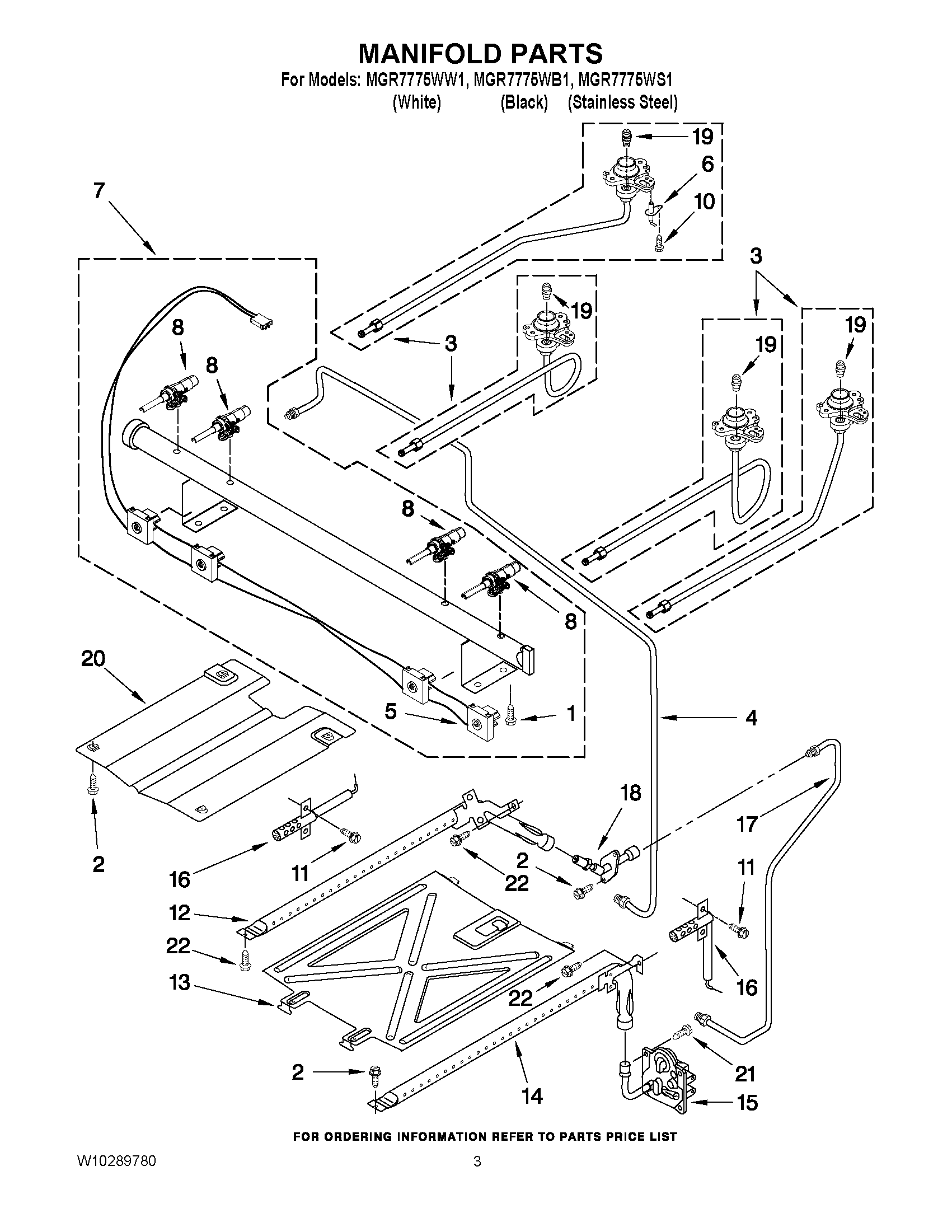

MGR7775WS1 03 – MANIFOLD PARTS

MGR7775WS1 03 – MANIFOLD PARTS

Written by

in

MGR7775WS1 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 4)
1MAY 8273096
2Screw
3MAY W10170346
3MAY W10170345
3MAY W10157418
3MAY W10157415
4Tubing (Manifold to Regulator)
5MAY 8523406
6Electrode (4)
7MAY W10170208
8Valve (LF – RF – LR)
8VALVE(RIGHT REAR)
10MAY 8273062
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
19ORIFICE, BURNER (LEFT FRONT)
19ORIFICE, NATURAL (9.5K) (LEFT REAR)
19ORIFICE, NATURAL (5K) (RIGHT REAR)
20SPREADER, FLAME (BROILER)
21SCREW
22SCREW
