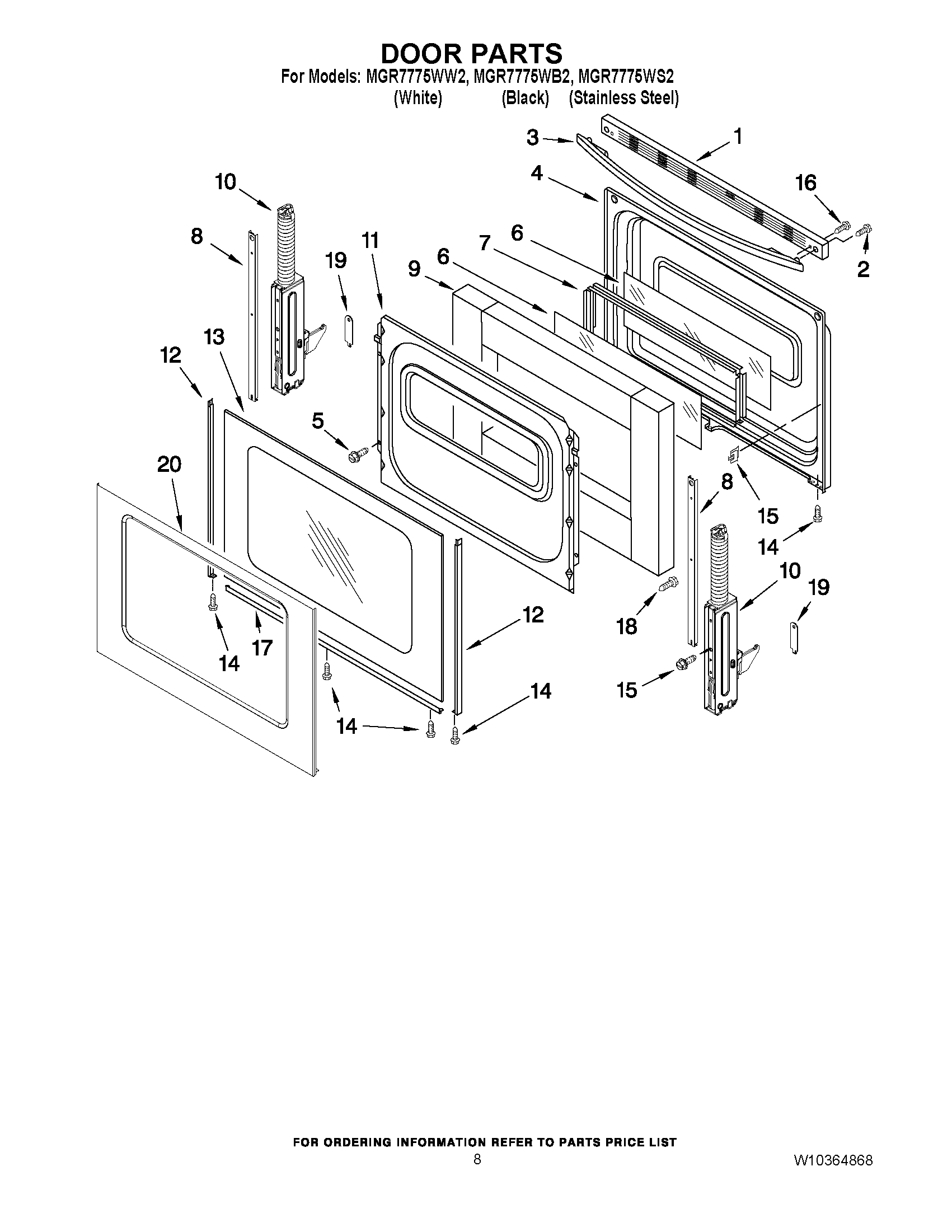

MGR7775WS2 06 – DOOR PARTS

MGR7775WS2 06 – DOOR PARTS

Written by

in

MGR7775WS2 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323584
3	MAY W10323581
3	MAY W10171750
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	STRAP, DOOR
9	INSULATION, DOOR STRIP
10	HINGE, DOOR (PASSIVE)
10	HINGE, ACTIVE (WITH SPRING)
11	RETAINER, INSULATION
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (BLACK, LEFT HAND)
13	MAY W10106405
13	GLASS, OUTER (WHITE)
13	GLASS, OUTER (STAINLESS)
14	MAY 3196160
15	CLIP, PANEL
16	SCREW
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
18	SCREW
19	Clip,Door Mntg(2)
20	GLASS, OUTER (STAINLESS)
