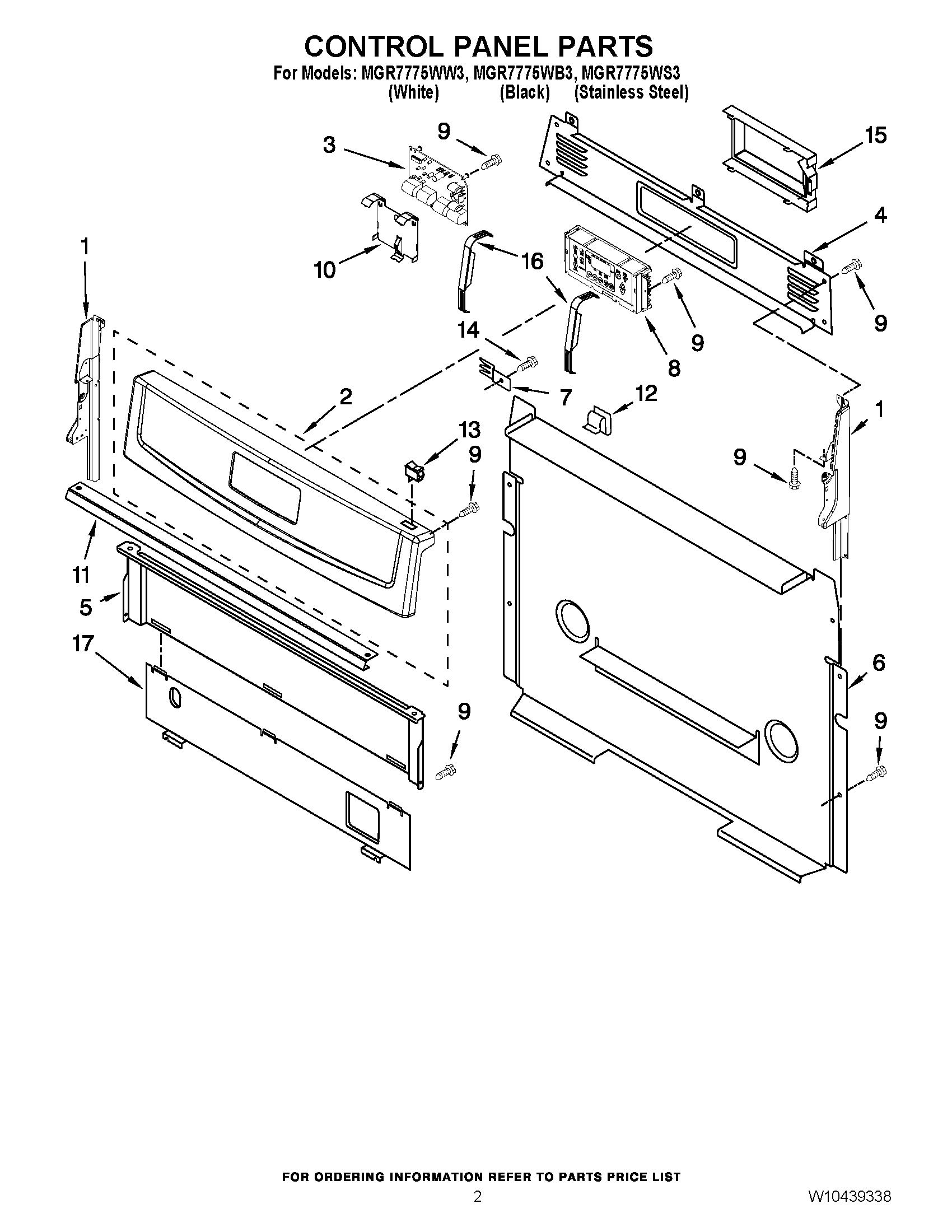

MGR7775WS3 02 – CONTROL PANEL PARTS

MGR7775WS3 02 – CONTROL PANEL PARTS

Written by

in

MGR7775WS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2MAY W10292036
2MAY W10292035
2MAY W10292034
3MAY W10331686
4COVER, UPPER
5SHIELD, HEAT
6Cover, Back
7BRACKET, REAR COOKTOP
8MAY W10271779
8MAY W10271780
9SCREW
10Brkt-Mntg, DSI
11BRKT-MNTG,CONSOLE
12MAY 8273564
13SWITCH, ROCKER (BLACK)
13SWITCH, ROCKER (WHITE)
14SCREW
15Cover
16BRACKET, MOUNTING, EOC
17SHIELD, HEAT
