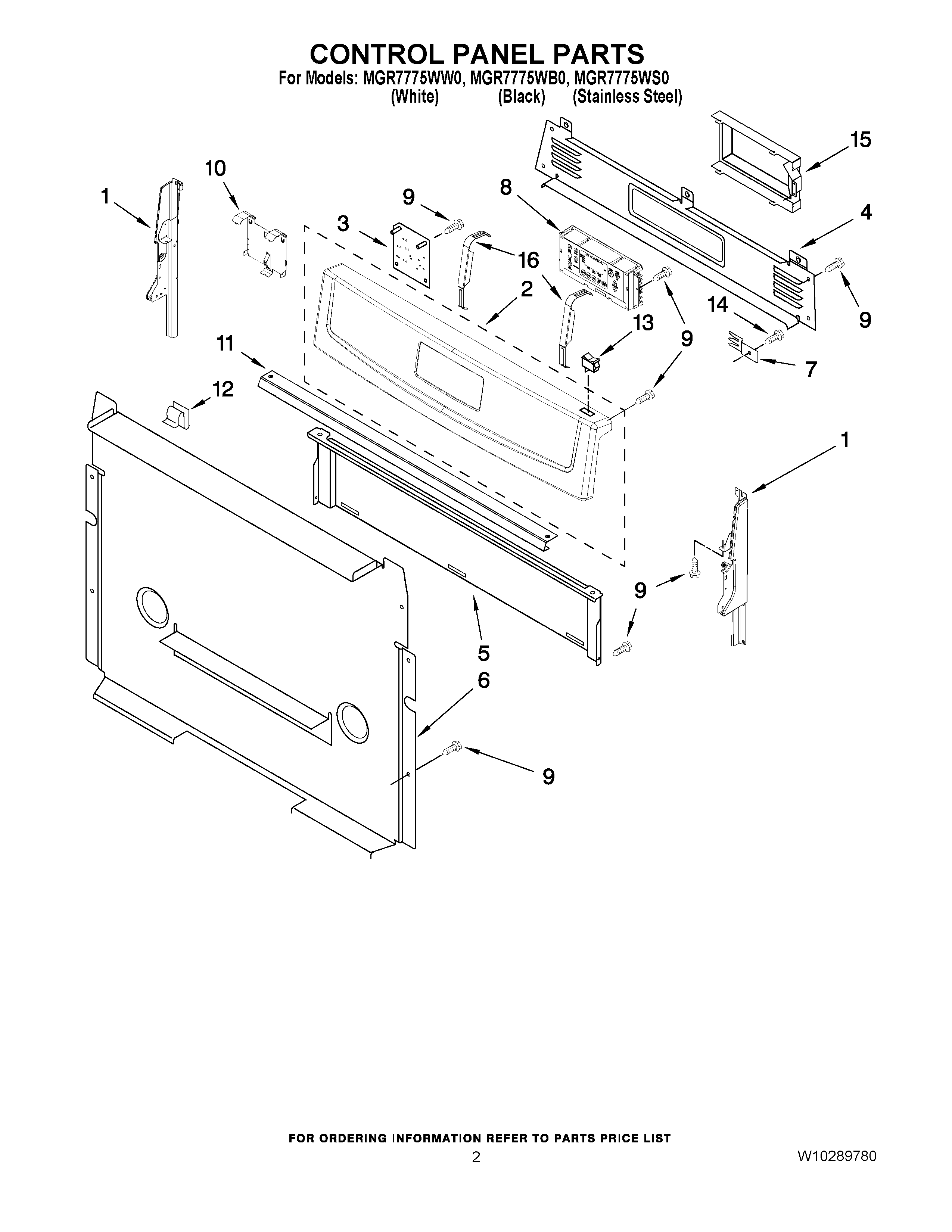

MGR7775WW0 02 – CONTROL PANEL PARTS

MGR7775WW0 02 – CONTROL PANEL PARTS

Written by

in

MGR7775WW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	MAY W10225555
2	MAY W10225553
2	MAY W10225554
3	MAY 9758080
4	COVER, UPPER
5	SHIELD, HEAT
6	Cover, Back
7	BRACKET, REAR COOKTOP
8	MAY W10236272
8	MAY W10236273
9	SCREW
10	Brkt-Mntg, DSI
11	BRKT-MNTG,CONSOLE
12	MAY 8273564
13	SWITCH, ROCKER (BLACK)
13	SWITCH, ROCKER (WHITE)
14	SCREW
15	Cover
16	BRACKET, MOUNTING, EOC
