MGR7775WW0 06 – DOOR PARTS

MGR7775WW0 06 – DOOR PARTS

Written by

in

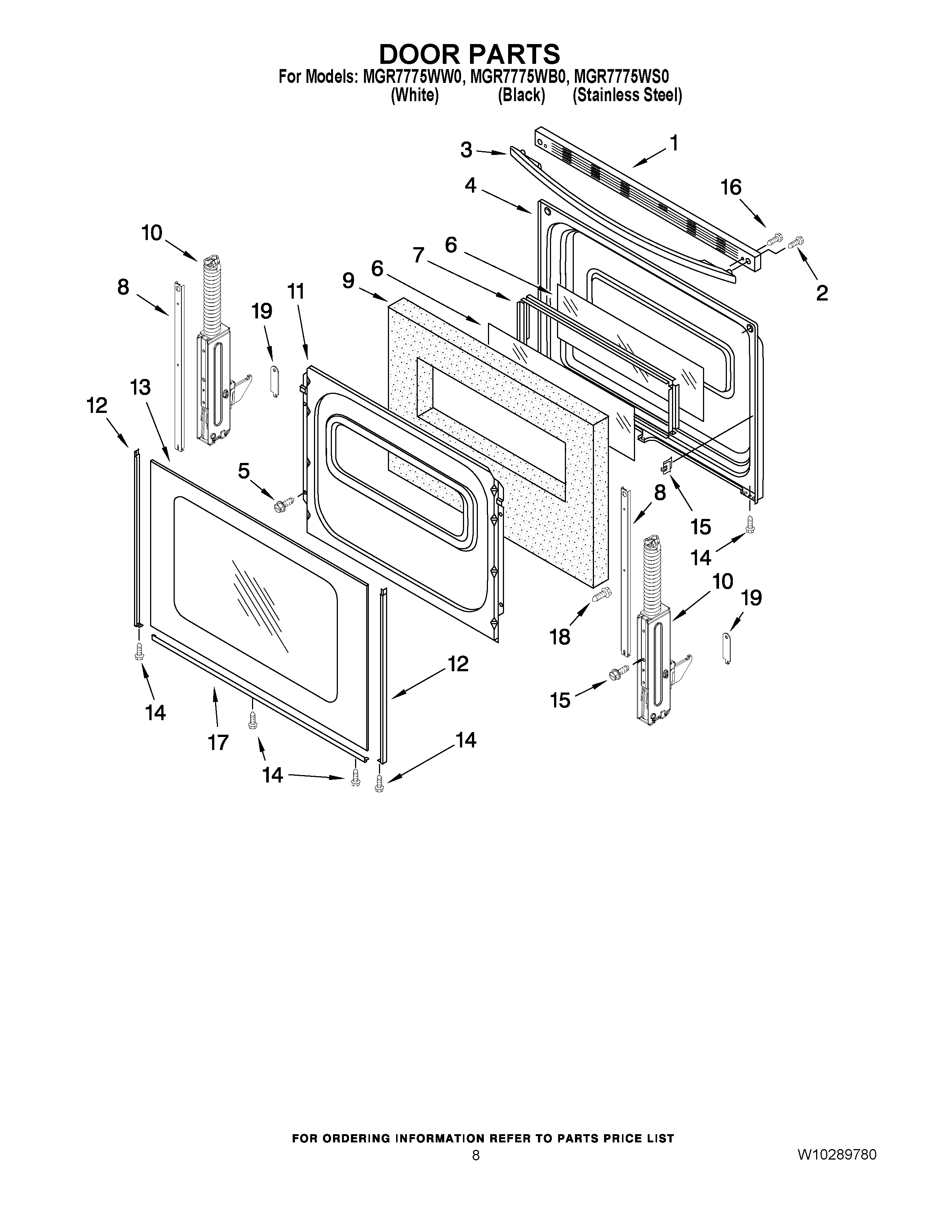

MGR7775WW0 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10118310
3	MAY W10171750
3	MAY W10111309
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	STRAP, DOOR
9	MAY 8272618
10	Hinge, Door
10	Hinge, Door (2) (Stainless Model)
11	RETAINER, INSULATION
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK, LEFT HAND)
13	GLASS, OUTER (WHITE)
13	MAY W10106405
14	MAY 3196160
15	CLIP, PANEL
16	MAY W10031780
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
18	SCREW
19	Clip,Door Mntg(2)
