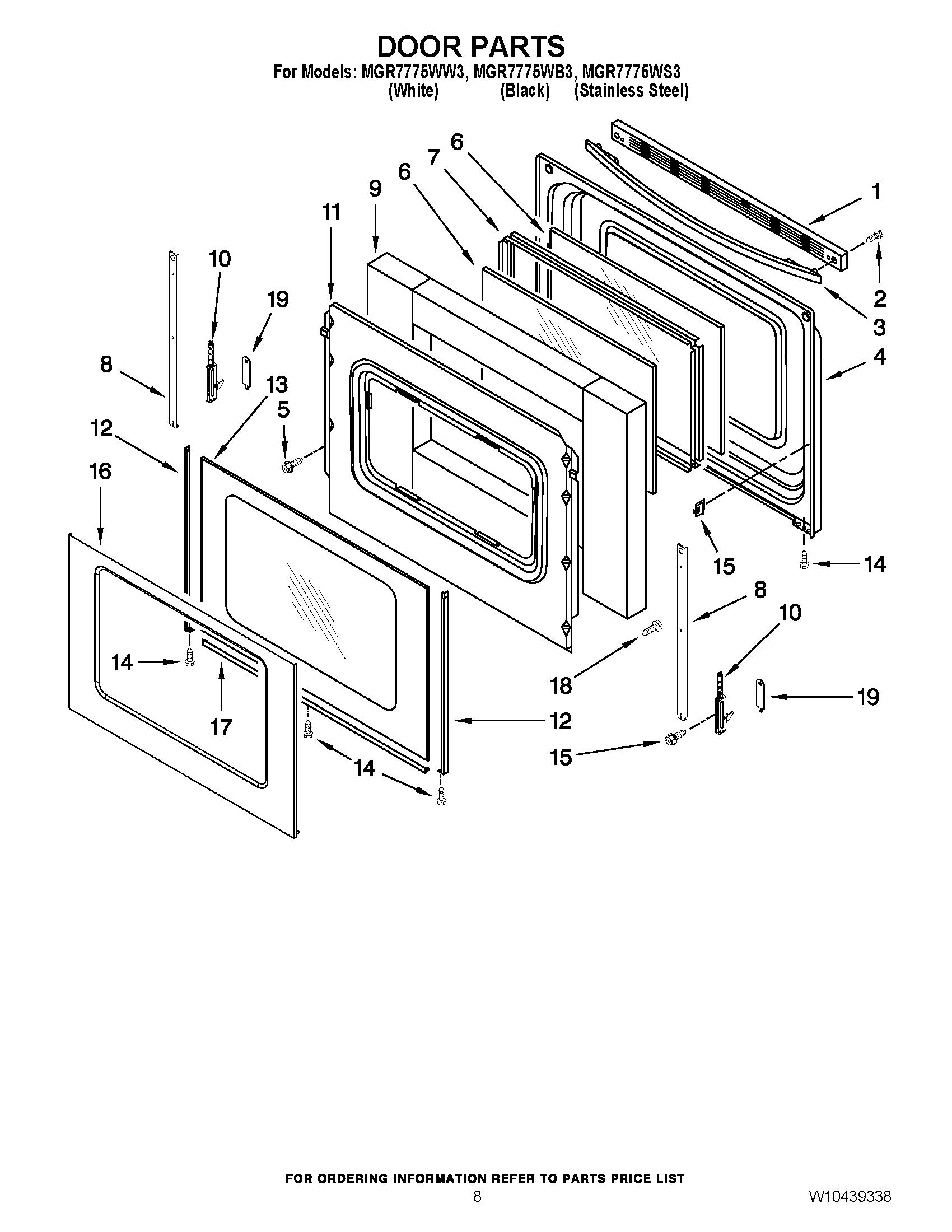

MGR7775WW3 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323581
3MAY W10171750
3MAY W10323584
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8STRAP, DOOR
9INSULATION, DOOR STRIP
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11RETAINER, INSULATION
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (WHITE (LEFT))
13GLASS, OUTER (STAINLESS)
13MAY W10106405
13GLASS, OUTER (WHITE)
14MAY 3196160
15CLIP, PANEL
16GLASS, OUTER (STAINLESS)
17TRIM, LOWER (BLACK)
17TRIM, LOWER (WHITE)
18SCREW
19Clip,Door Mntg(2)
