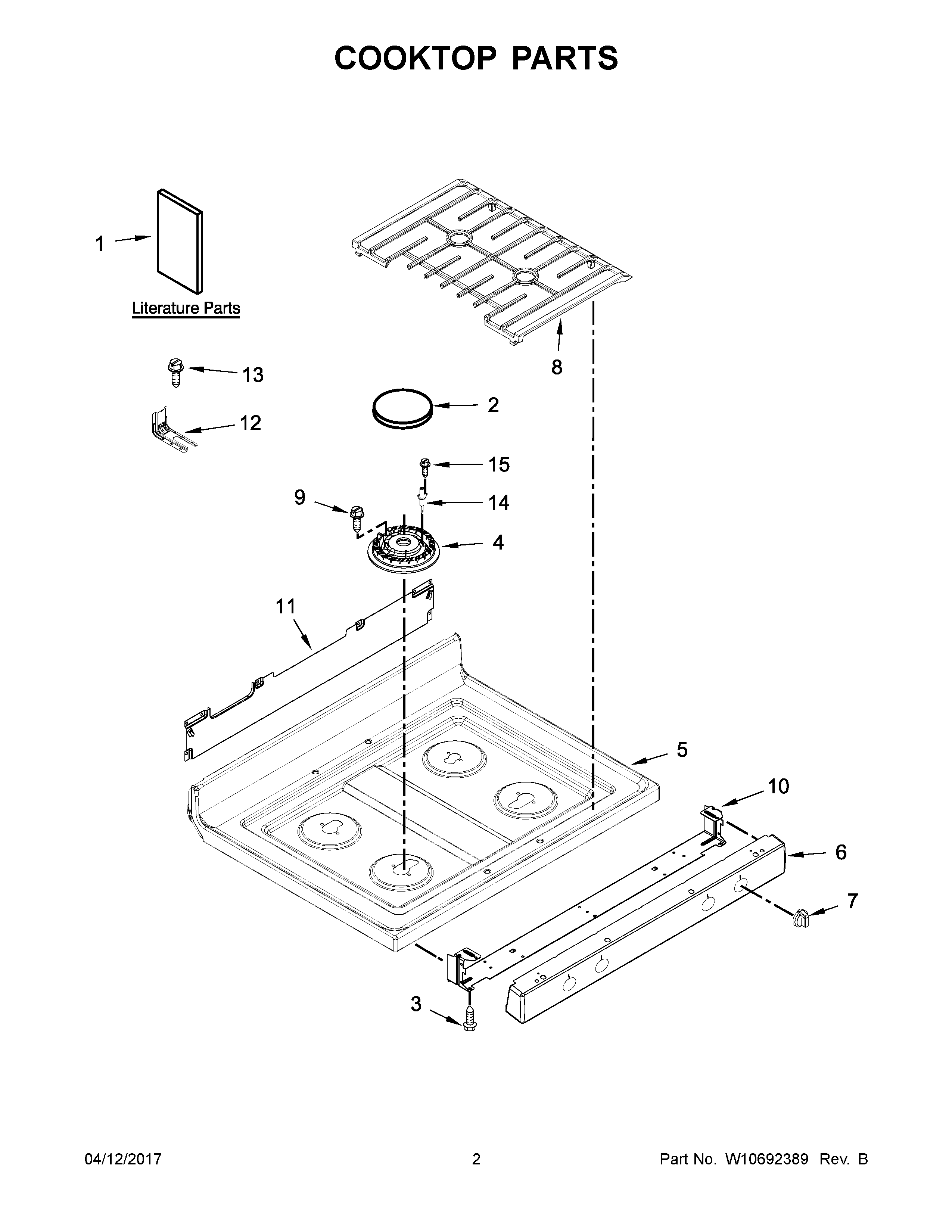

MGR8600DE0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE/BROIL
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	TIE, MANIFOLD WIRE
NI	CLIP, GAS WIRING
1C	TECH SHEET (FRENCH)
1F	MAY W10400066
1G	MAY W10400067
1A	MAY W10667178
1B	TECH SHEET (ENGLISH)
1	MAY W10553363
1D	TIPS, SAFE COOKING (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
2	CAP, BURNER LEFT FRONT (BLACK)
3	SCREW
4B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5A	MAY W10366732
5	MAY W10366731
6A	MAY W10655863
6	MAY W10655860
6B	MAY W10655866
7	MAY W10650400
8	MAY W10655132
9	SCREW
10	BRACKET, MAINFOLD (FRONT)
11	BRACKET, MANIFOLD (REAR)
12	BRACKET, ANTI-TIP
13	SCREW, ANTI-TIP KIT
14	ELECTRODE (RIGHT REAR)
15	MAY 8273062
