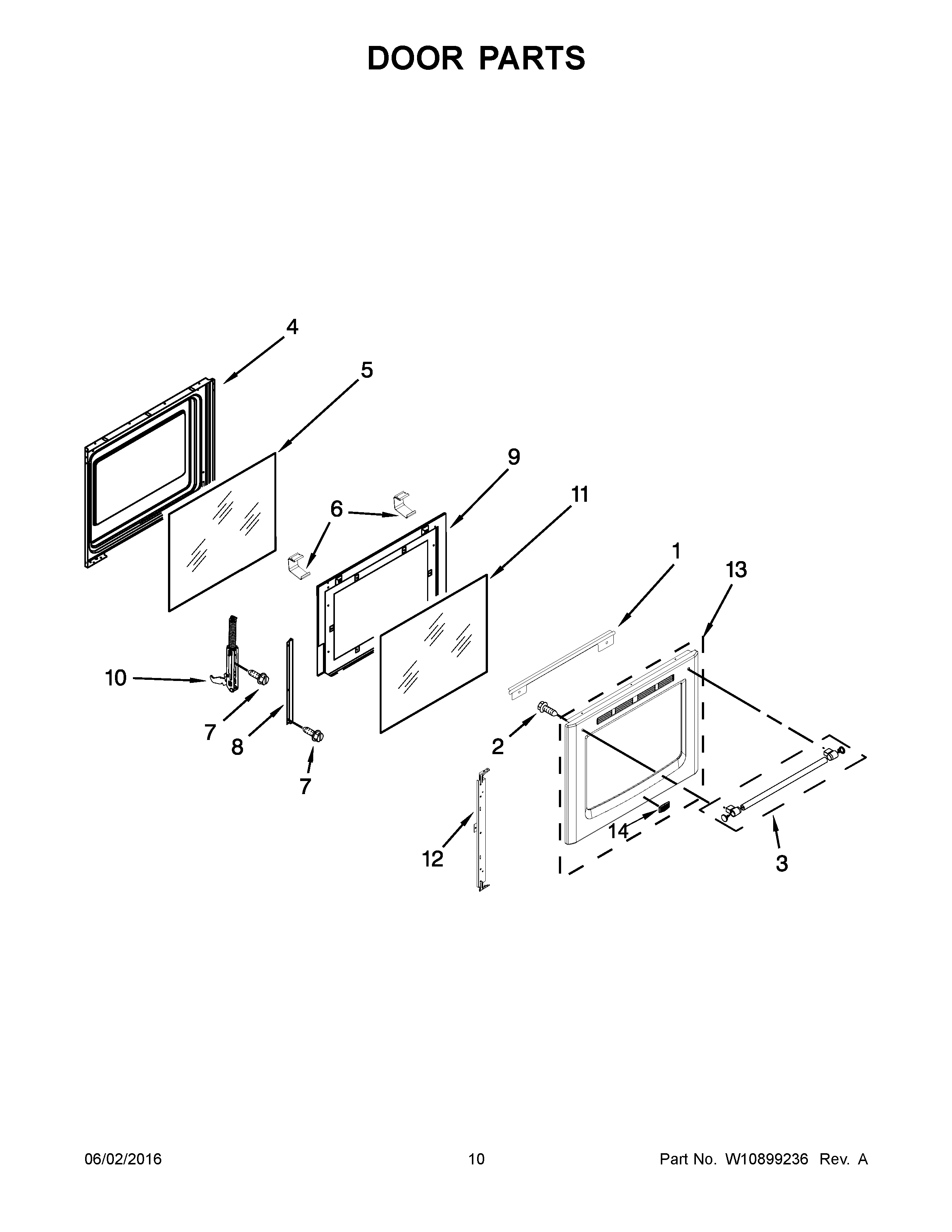

MGR8600DE2 06 – DOOR PARTS

MGR8600DE2 06 – DOOR PARTS

Written by

in

MGR8600DE2 06 – DOOR PARTS

Products

PositionProduct
1AMAY W10330075
1TRIM, VENT (BLACK)
2SCREW
3MAY W10665831
4LINING, DOOR
5GLASS, INNER
6CLIP, PANEL
7SCREW
8MAY W10294852
9MAY W10294853
10HINGE, DOOR (ACTIVE)
11MAY W10615599
12MAY W10294851
13MAY W10655834
13AMAY W10655831
13BMAY W10655838
14MAY W10636267
