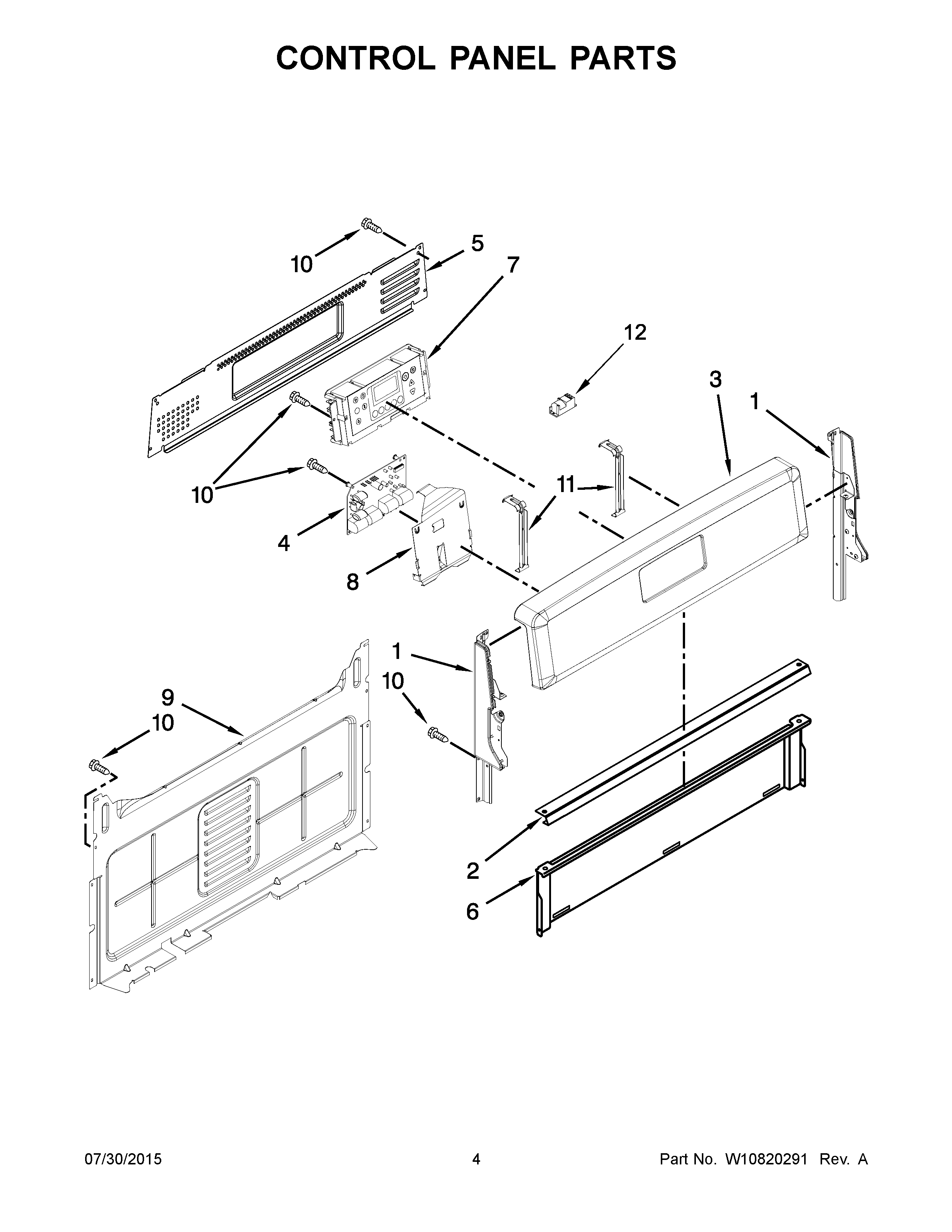

MGR8600DH1 03 – CONTROL PANEL PARTS

MGR8600DH1 03 – CONTROL PANEL PARTS

Written by

in

MGR8600DH1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1CENDCAP (BLACK (RIGHT))
1BENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3MAY W10655858
3AMAY W10655861
3BMAY W10655864
4MAY W10511278
5COVER, UPPER
6SHIELD, HEAT
7BMAY W10655865
7AMAY W10655862
7MAY W10655859
8MAY W10516463
9COVER, BACK
10SCREW
11MAY W10324410
12MODULE, SPARK
