MGR8600DS1 03 – CONTROL PANEL PARTS – Aparts

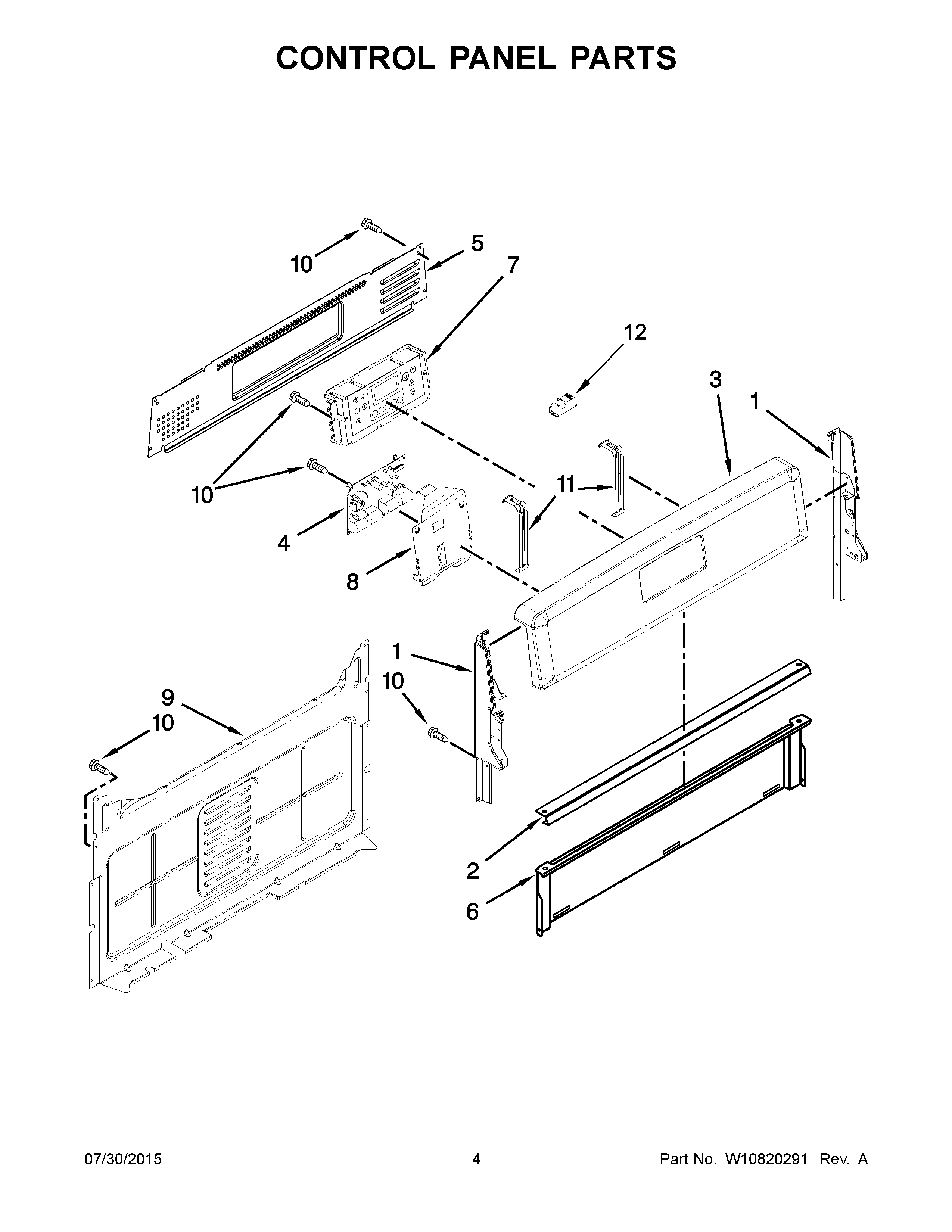

MGR8600DS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1C	ENDCAP (BLACK (RIGHT))
1B	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	MAY W10655858
3A	MAY W10655861
3B	MAY W10655864
4	MAY W10511278
5	COVER, UPPER
6	SHIELD, HEAT
7B	MAY W10655865
7A	MAY W10655862
7	MAY W10655859
8	MAY W10516463
9	COVER, BACK
10	SCREW
11	MAY W10324410
12	MODULE, SPARK
