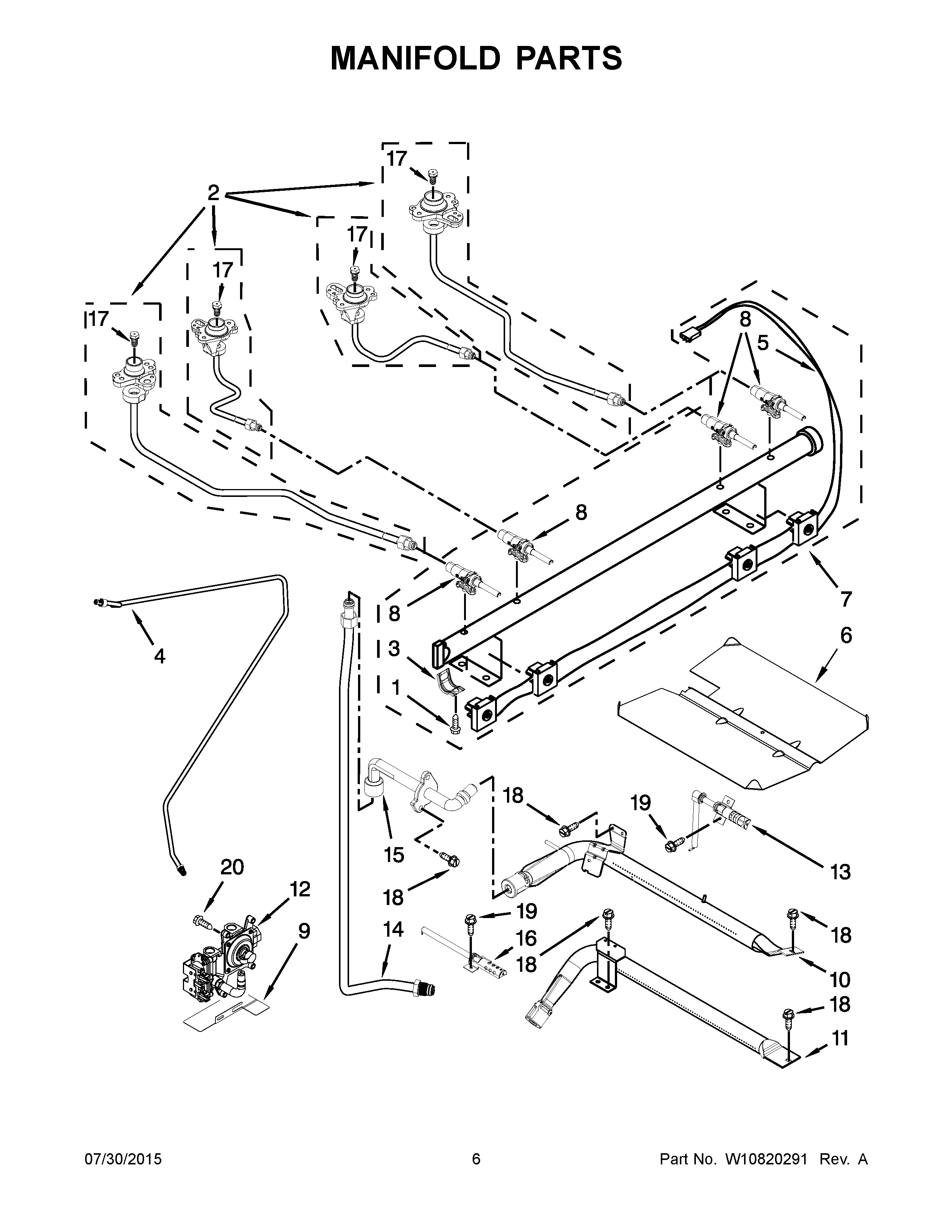

MGR8600DS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	ASSEMBLY, ORIFICE HOLDER (15K)
2C	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
2A	ASSEMBLY, ORIFICE HOLDER (5K)
2B	ASSEMBLY, ORIFICE HOLDER (9.5K)
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	MAY W10295998
6	MAY 3601P336-45
7	MAY W10314241
8A	VALVE, GAS (LEFT REAR)
8B	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10720102
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10732135
16	ELECTRODE, BROIL
17B	MAY W10170507
17	ORIFICE, BURNER (12K) (RIGHT FRONT)
17C	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17A	MAY W10732136
18	SCREW
19	SCREW
20	SCREW
