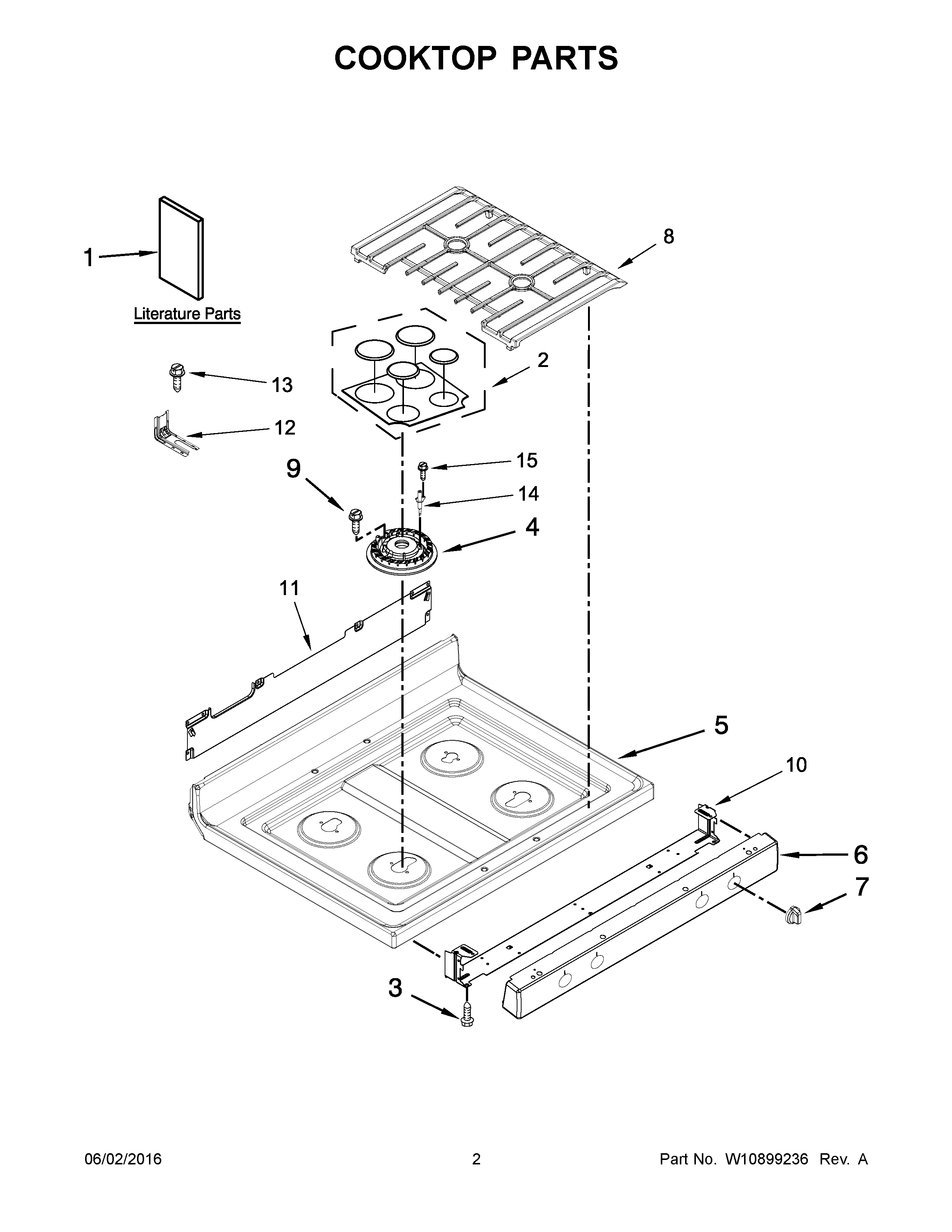

MGR8600DS2 02 – COOKTOP PARTSadmin2025-04-26T09:13:55+00:00MGR8600DS2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10797418 |
| NI | MAY W10519920 |
| NI | HARNESS, COOKTOP |
| NI | HARNESS, BAKE/BROIL |
| NI | CLIP, GAS WIRING |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| 1E | MAY W10400066 |
| 1B | TECH SHEET (FRENCH) |
| 1 | MAY W10667178 |
| 1A | TECH SHEET (ENGLISH) |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 1F | MAY W10400067 |
| 2 | CAP, BURNER LEFT FRONT (BLACK) |
| 3 | SCREW |
| 4B | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 4A | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 4 | ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT) |
| 5 | MAY W10366732 |
| 5A | MAY W10366731 |
| 6B | MAY W10655866 |
| 6A | MAY W10655860 |
| 6 | MAY W10655863 |
| 7 | MAY W10650400 |
| 8 | MAY W10655132 |
| 9 | SCREW |
| 10 | BRACKET, MAINFOLD (FRONT) |
| 11 | BRACKET, MANIFOLD (REAR) |
| 12 | BRACKET, ANTI-TIP |
| 13 | SCREW, ANTI-TIP KIT |
| 14 | ELECTRODE (RIGHT REAR) |
| 15 | MAY 8273062 |
