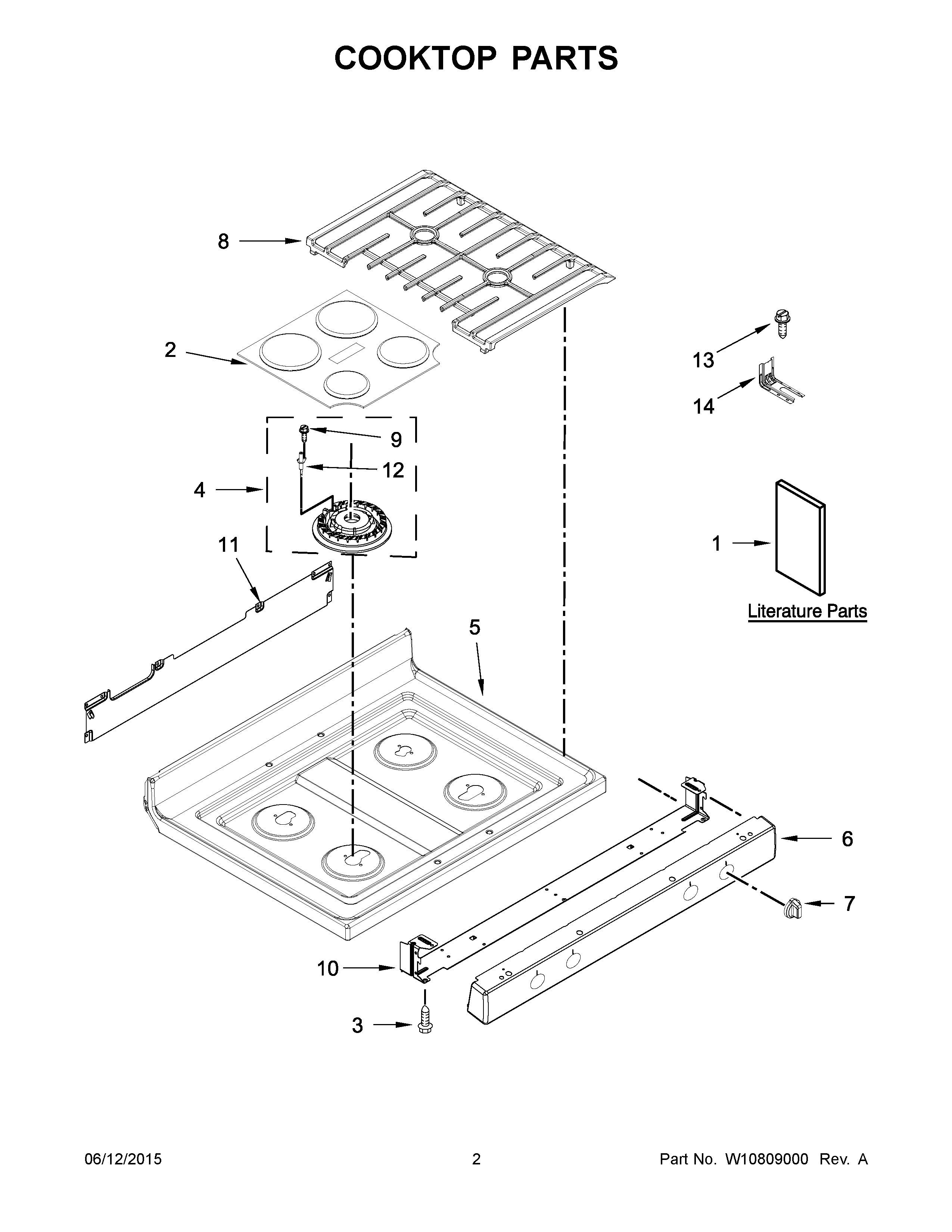

MGR8650ES0 02 – COOKTOP PARTS

MGR8650ES0 02 – COOKTOP PARTS

Written by

in

MGR8650ES0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, BAKE/BROIL
NIMAY W10519920
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIWIRING HARNESS PARTS, HARNESS, COOKTOP
NIMAY W10519952
NICLIP, GAS WIRING
1MAY W10553363
1AMAY W10667178
1BMAY W10758786
1CTIPS, SAFE COOKING (ENGLISH)
1DMAY W10400066
2CAP, BURNER LEFT FRONT (BLACK)
3SCREW
4BASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4AASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5MAY W10366732
6MAY W10655866
7MAY W10650400
8MAY W10655132
9MAY 8273062
10BRACKET, MAINFOLD (FRONT)
11BRACKET, MANIFOLD (REAR)
12ELECTRODE (RIGHT REAR)
13SCREW, ANTI-TIP KIT
14BRACKET, ANTI-TIP
