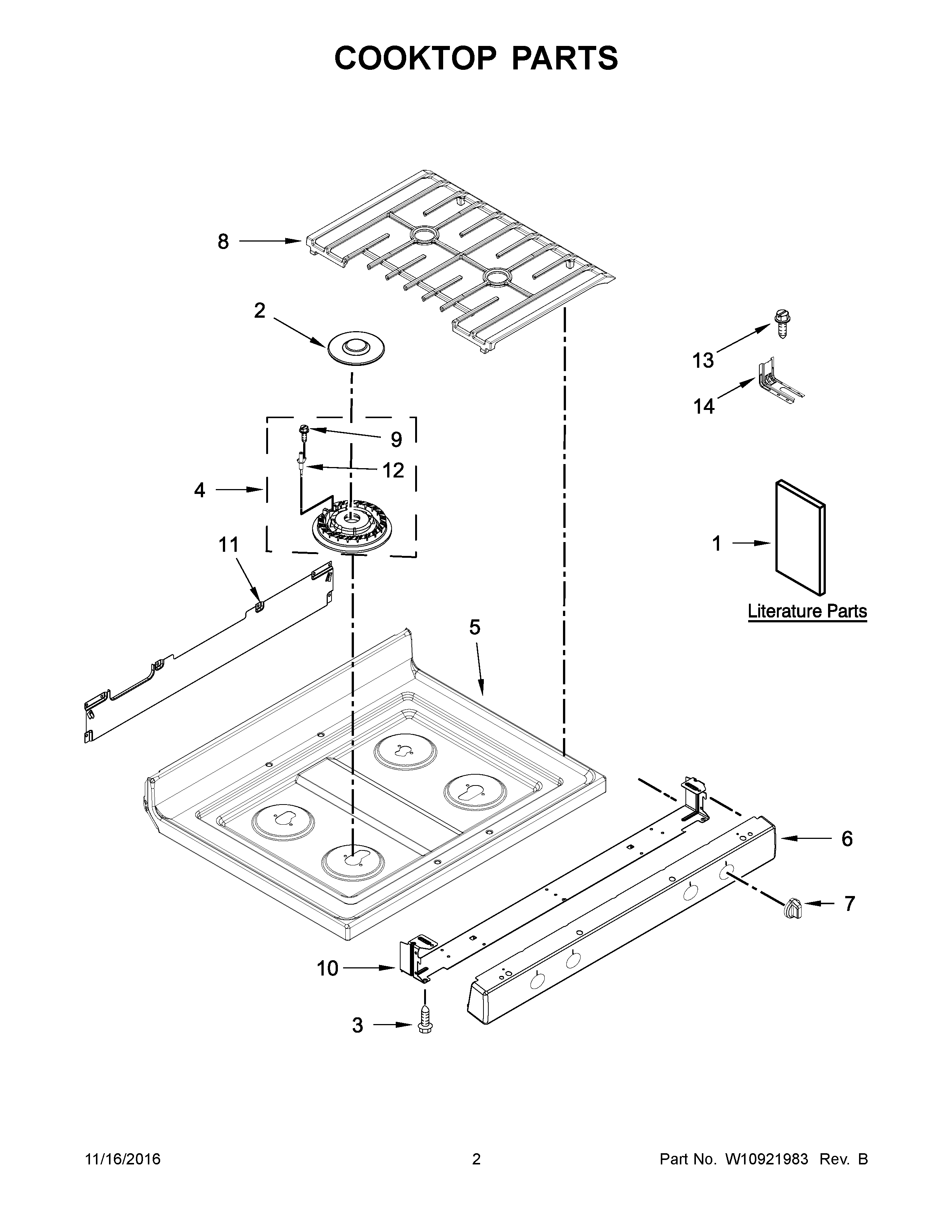

MGR8650FZ0 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, GAS WIRING
NIHARNESS, COOKTOP
NIMAY W10519920
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIMAY W10797420
NIHARNESS, BAKE/BROIL
1EMAY W10400066
1BMAY W10758786
1AMAY W10667178
1MAY W10553363
1DTIPS, SAFE COOKING (FRENCH)
1CTIPS, SAFE COOKING (ENGLISH)
2KIT, BURNER CAP (BLACK (SET OF 4))
3SCREW
4BASSEMBLY, BURNER (6K) (RIGHT REAR)
4AASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5MAY W10366732
6MAY W10861556
7MAY W10858253
8MAY W10655132
9SCREW
10BRACKET, MAINFOLD (FRONT)
11BRACKET, MANIFOLD (REAR)
12ELECTRODE (RIGHT REAR)
13SCREW, ANTI-TIP KIT
14BRACKET, ANTI-TIP
