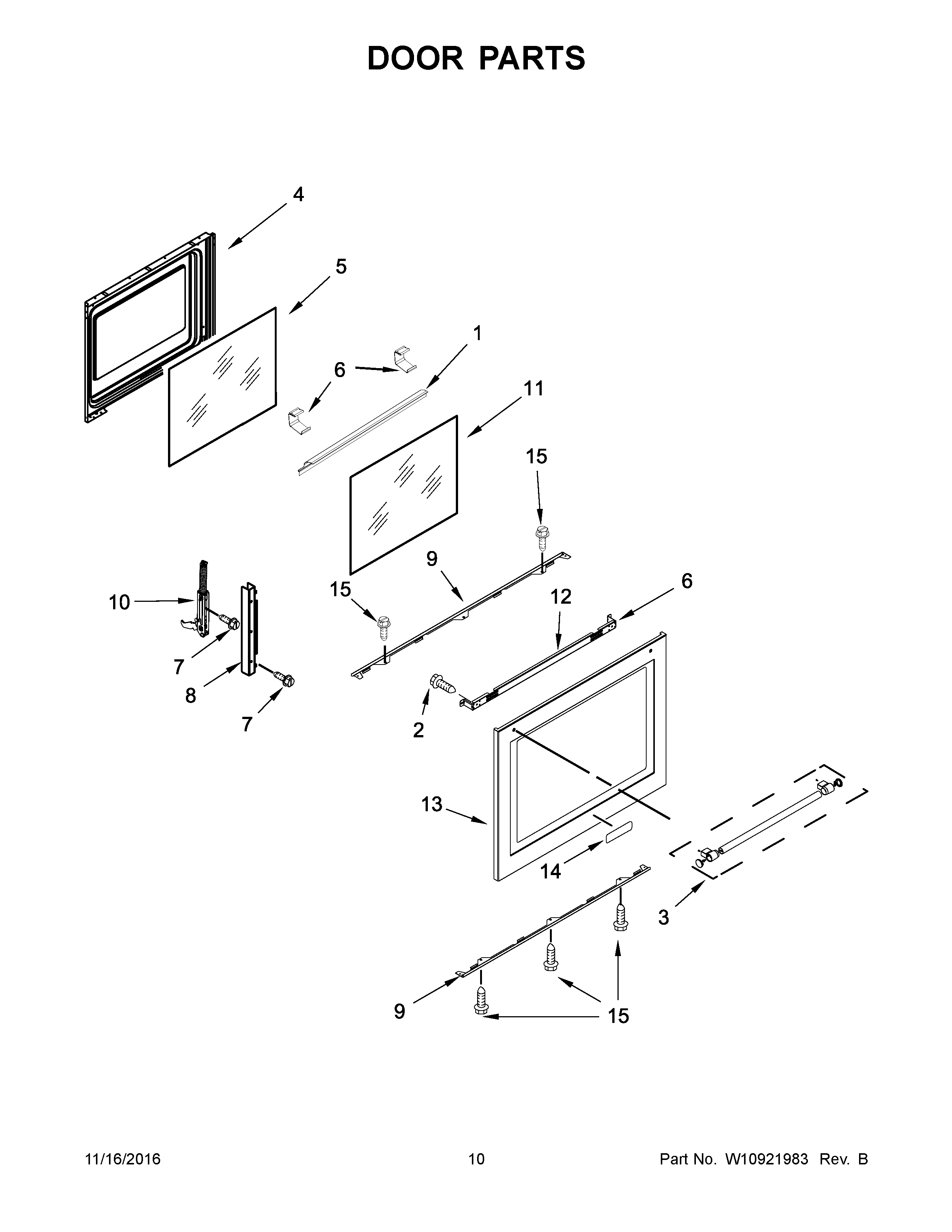

MGR8650FZ0 06 – DOOR PARTS

Written by

Products

Position	Product
1	SCOOP, DOOR (BLACK)
2	SCREW
3	HANDLE, OVEN DOOR (STAINLESS)
4	LINER, DOOR
5	GLASS, INNER
6	CLIP, PANEL
7	SCREW
8	RAIL, VERTICAL SUPPORT
9	RAIL, HORIZONTAL SUPPORT
10	HINGE, DOOR (ACTIVE)
11	GLASS, OUTER (STAINLESS)
12	BRACKET, GLASS UPPER HANDLE
13	ASSEMBLY, DOOR SKIN (STAINLESS)
14	BADGE
15	SCREW
