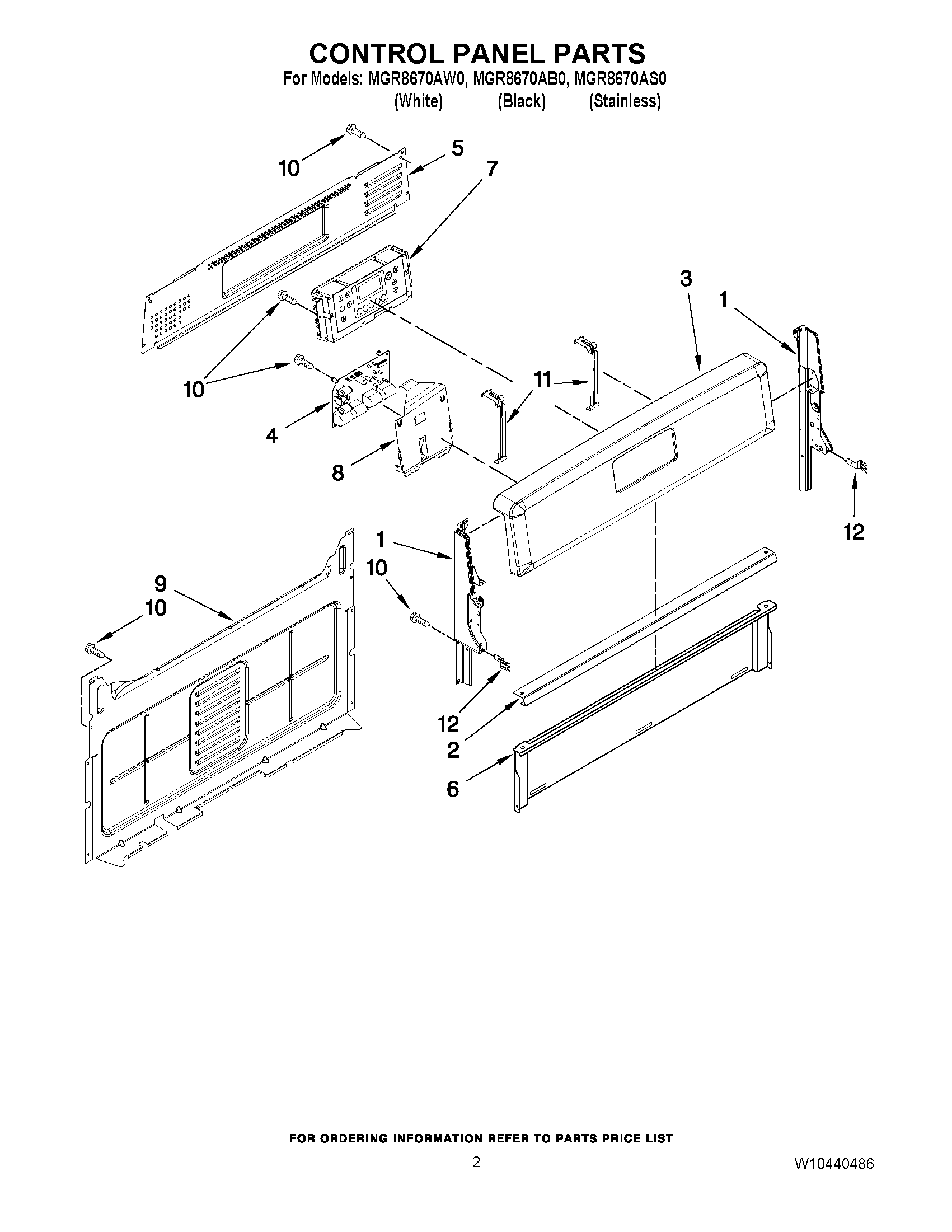

MGR8670AB0 02 – CONTROL PANEL PARTS

MGR8670AB0 02 – CONTROL PANEL PARTS

Written by

in

MGR8670AB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	BRKT-MNTG,CONSOLE
3	MAY W10333932
3	MAY W10333931
3	MAY W10333933
4	MAY W10331686
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10348721
7	MAY W10348720
7	MAY W10348722
8	Brkt-Mntg, DSI
9	Cover, Back
10	SCREW
11	MAY W10324410
12	BRACKET, REAR COOKTOP
