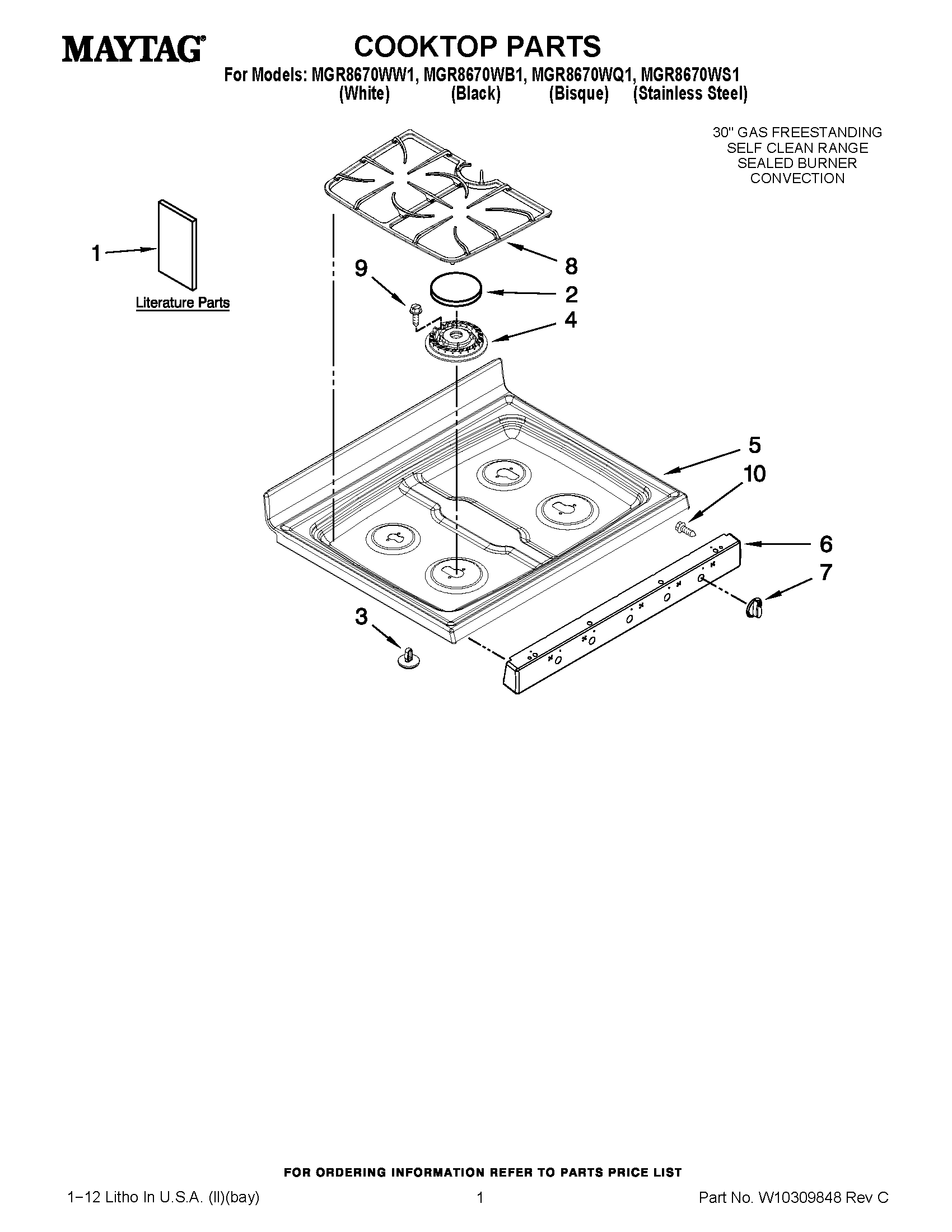

MGR8670WB1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1OWNERS MANUAL
1WIRING DIAGRAM (ENGLISH)
1MAY W10239473
1MAY W10258096
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER (BLACK (LR/RF))
2CAP, BURNER (WHITE(LR/RF))
2CAP, BURNER (WHITE(RR))
2CAP, BURNER (RF)
2CAP, BURNER (WHITE(LF))
2CAP, BURNER (LR)
2CAP, BURNER (RR & LF)
2Cap, Burner R. Front, L. Rear (Grey)
3MAY 8010P149-60
4BURNER (LR/RR/RF)
4HEAD, BURNER CTR.
4HEAD, BURNER (RF)
4HEAD, BURNER (LR/RR/LF)
5MAY W10225508
5MAY W10225509
5COOKTOP (BISQUE)
6MAY W10211395
6PANEL, MANIFOLD (BISQUE)
6MAY W10211381
6MAY W10211380
7MAY W10111302
7KNOB, BURNER (BLACK)
7KNOB, CONTROL (BISCUIT)
7MAY W10200192
8GRATE, BURNER (BLACK)
8GRATE, BURNER (GRAY)
9WP3368921 Whirlpool Screw
10MAY 7101P388-60
