MGR8670WB1 05 – DOOR PARTS – Aparts

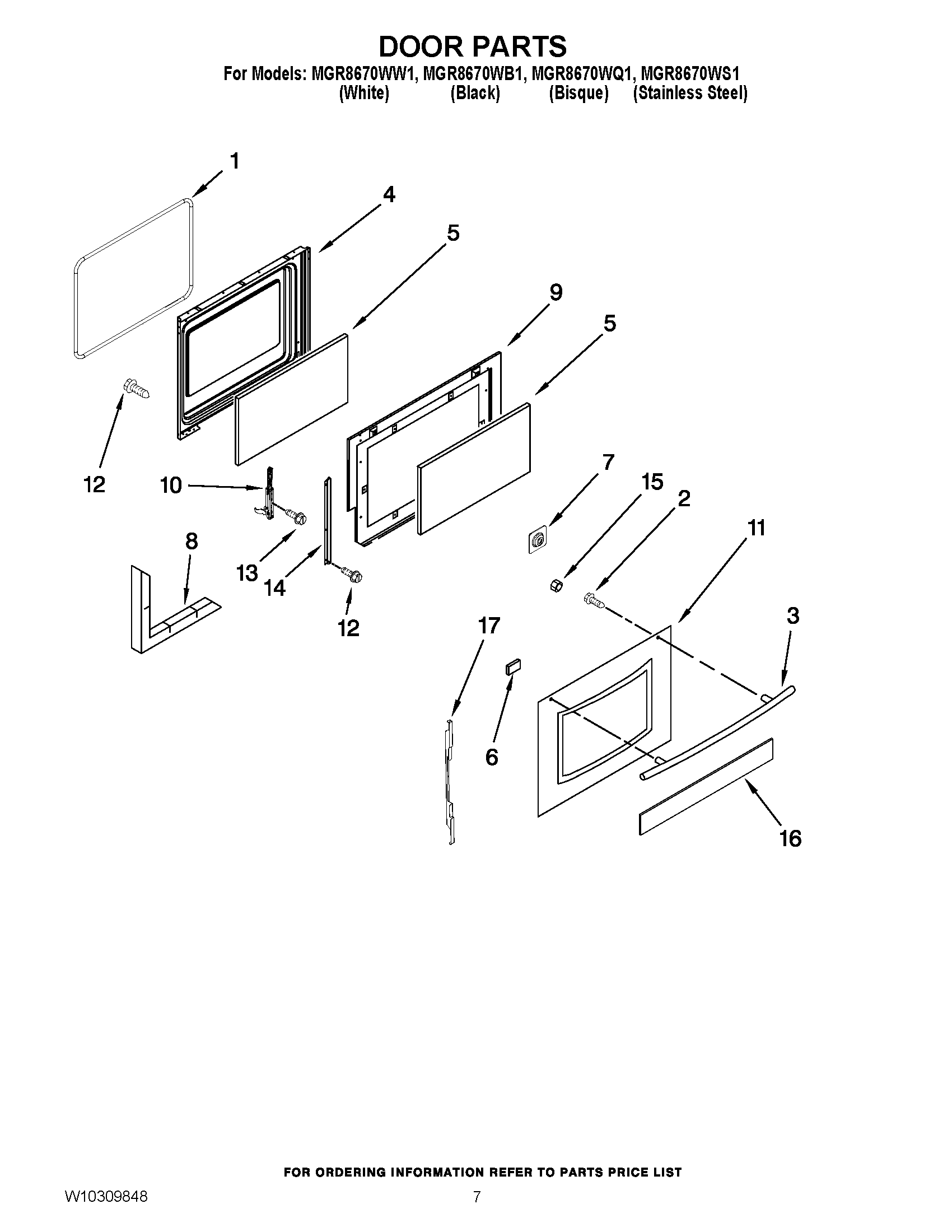

MGR8670WB1 05 – DOOR PARTS

Products

Position	Product
1	MAY W10290904
2	MAY W10241367
3	MAY W10171747
3	MAY W10161708
3	MAY W10171748
3	MAY W10171749
4	MAY 2402W297-19
5	Glass, Inner
6	WP74004224 Whirlpool Tape
7	MAY 3823F017-45
8	MAY 7002P246-60
9	Retainer, Side
10	MAY 7106P124-60
11	MAY W10181725
12	SCREW
13	SCREW (10-24X5/16-NI)
14	BRACKET, INNER GLASS
15	MAY 7103P176-60
16	MAY W10172590
16	MAY W10097300
16	MAY W10172591
16	MAY W10214541
17	MAY 3801P918-51
