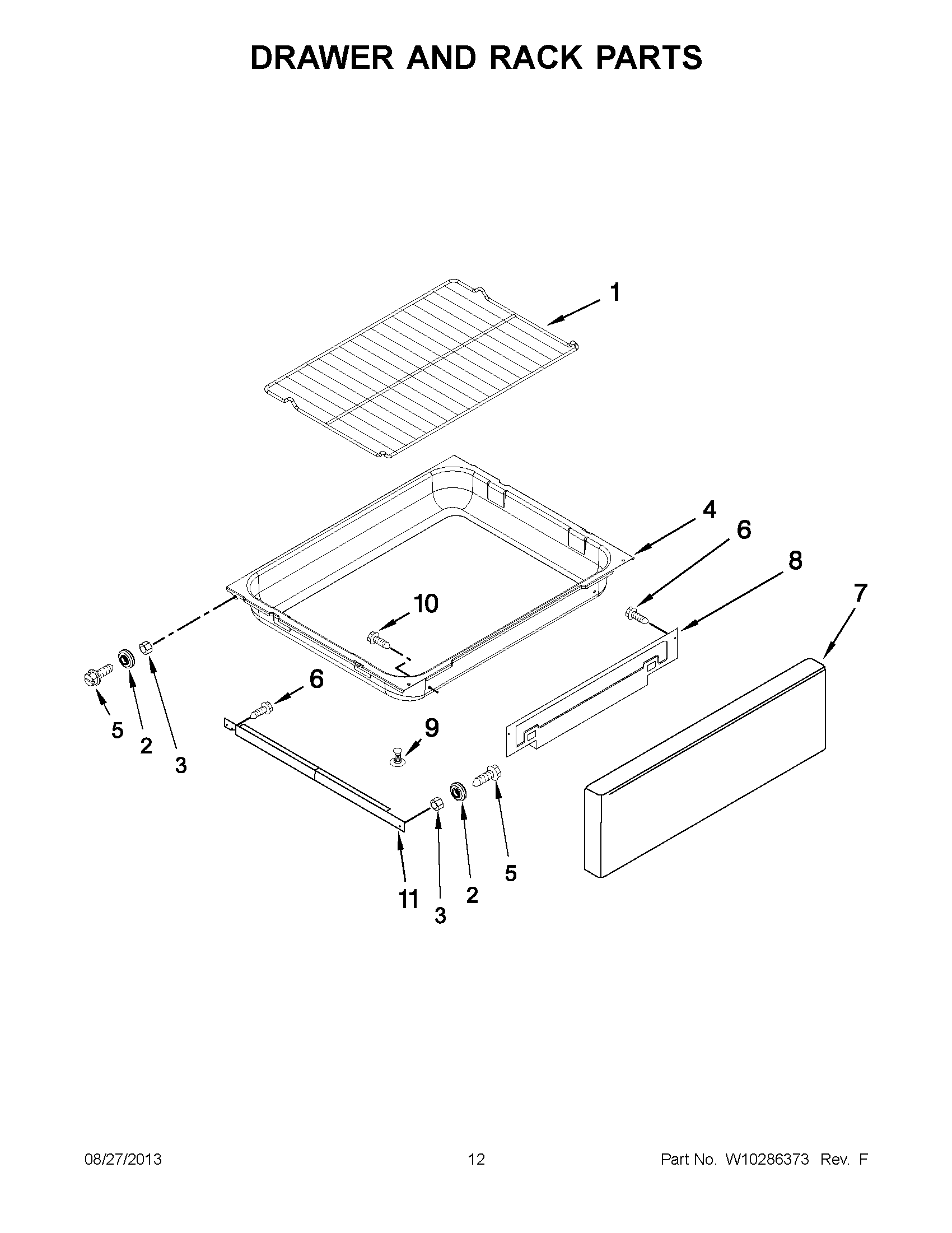

MGR8670WQ0 07 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	MAY W10179196
2	MAY W10272883
3	WP488130 Whirlpool Air Conditioner Nut
4	MAY 3405F037-80
5	MAY 7118P032-60
6	MAY 7101P388-60
7	PANEL, DRAWER FRNT (WHITE)
7	PANEL, DRAWER FRNT (BISQUE)
7	PANEL, DRAWER FRNT (BLACK)
7	PANEL, DRAWER FRNT (STAINLESS)
8	MAY W10173314
9	MAY 8038P037-60
10	WP7101P072-60 Whirlpool Screw
11	MAY 3406P034-51
