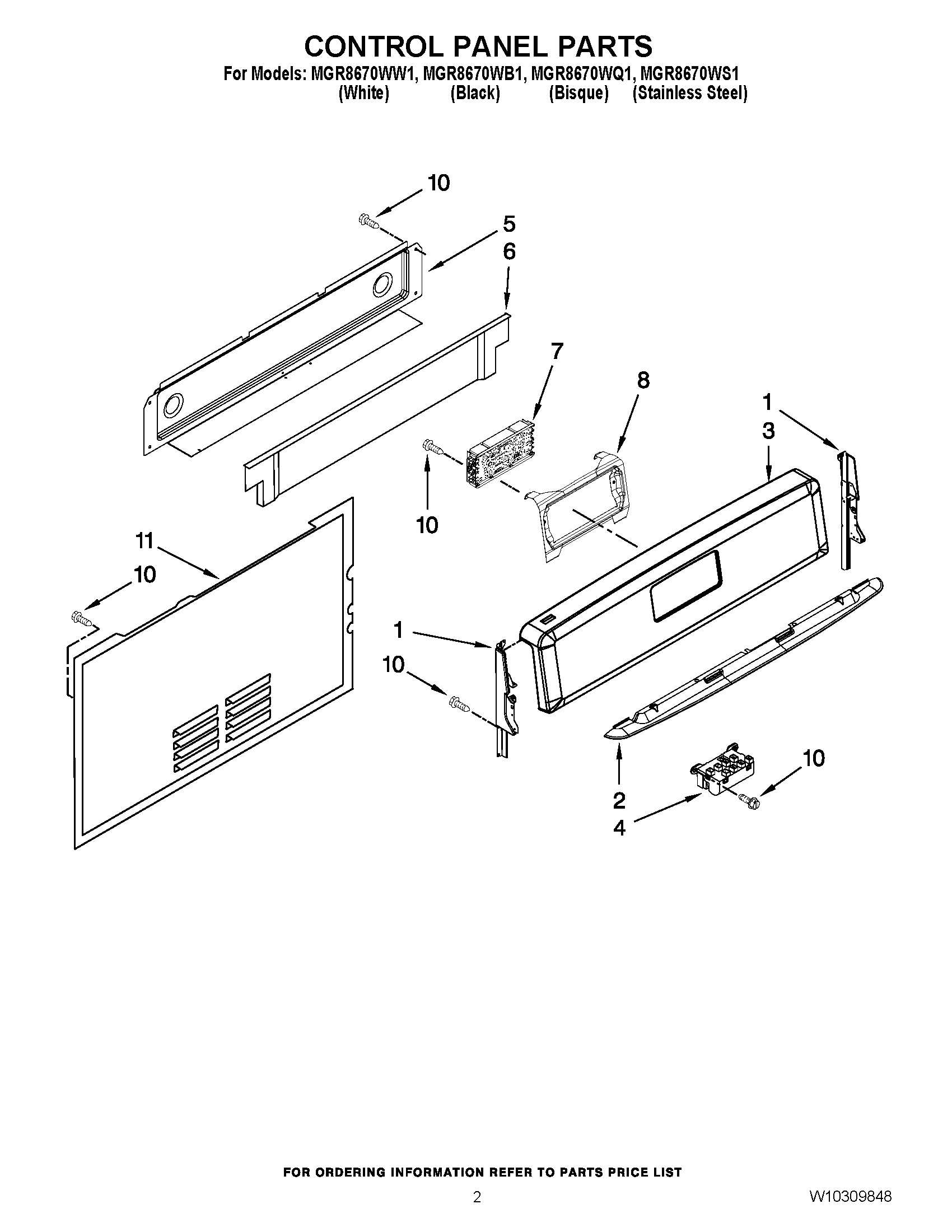

MGR8670WQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10171416
1	MAY W10163970
1	MAY W10163968
1	MAY W10171417
1	MAY W10163969
1	MAY W10163967
2	MAY 3604F382-09
2	MAY 3604F382-81
2	Shield, Heat Visor (Bisque)
3	MAY W10225562
3	MAY W10225564
3	PANEL, CONTROL (BISQUE)
3	MAY W10225561
4	MAY 7431P053-60
5	MAY W10243038
6	MAY 3604F381-19
7	CONTROL (INCLUDES OVERLAY) (BISQUE)
7	MAY W10236266
7	MAY W10236265
8	BRACKET, MOUNTING, EOC
10	SCREW
11	MAY W10243047
