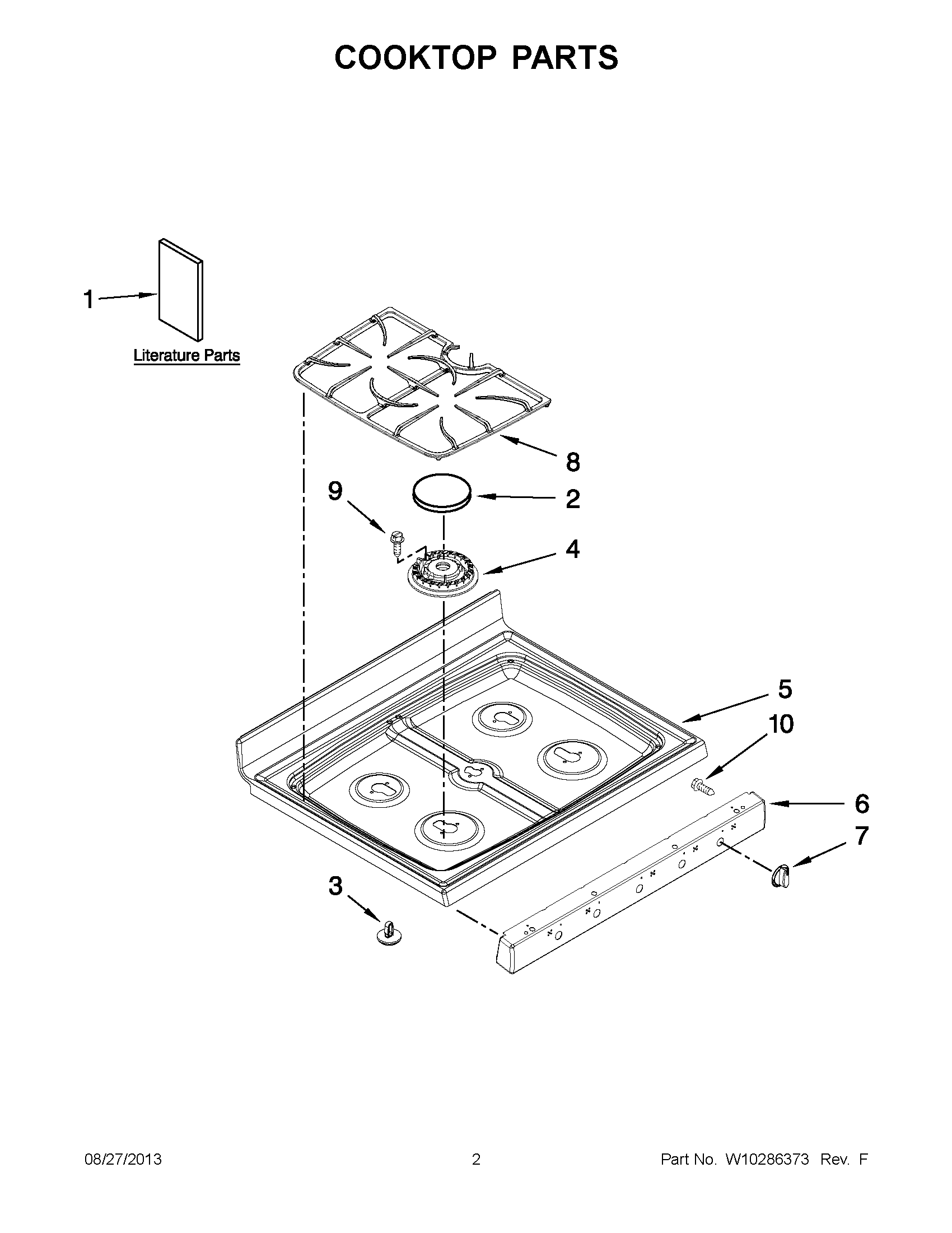

MGR8670WS0 02 – COOKTOP PARTSadmin2025-04-26T09:13:17+00:00MGR8670WS0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10258096 |
| 1 | WIRING DIAGRAM (ENGLISH) |
| 1 | OWNERS MANUAL |
| 2 | CAP, BURNER (WHITE(LR/RF)) |
| 2 | CAP, BURNER (WHITE(RR)) |
| 2 | CAP, BURNER (RF) |
| 2 | CAP, BURNER (WHITE(LF)) |
| 2 | CAP, BURNER (LR) |
| 2 | CAP, BURNER (RR & LF) |
| 2 | Cap, Burner R. Front, L. Rear (Grey) |
| 2 | CAP, BURNER (BLACK (LR/RF)) |
| 3 | MAY 8010P149-60 |
| 4 | BURNER (LR/RR/RF) |
| 4 | HEAD, BURNER CTR. |
| 4 | HEAD, BURNER (RF) |
| 4 | HEAD, BURNER (LR/RR/LF) |
| 5 | MAY W10225508 |
| 5 | MAY W10225509 |
| 5 | COOKTOP (BISQUE) |
| 6 | MAY W10211395 |
| 6 | PANEL, MANIFOLD (BISQUE) |
| 6 | MAY W10211381 |
| 6 | MAY W10211380 |
| 7 | MAY W10111302 |
| 7 | MAY W10200192 |
| 7 | KNOB, CONTROL (BISCUIT) |
| 7 | KNOB, BURNER (BLACK) |
| 8 | GRATE, BURNER (BLACK) |
| 8 | GRATE, BURNER (GRAY) |
| 9 | WP3368921 Whirlpool Screw |
| 10 | MAY 7101P388-60 |
