MGR8670WS0 05 – MANIFOLD PARTS
Written by
in

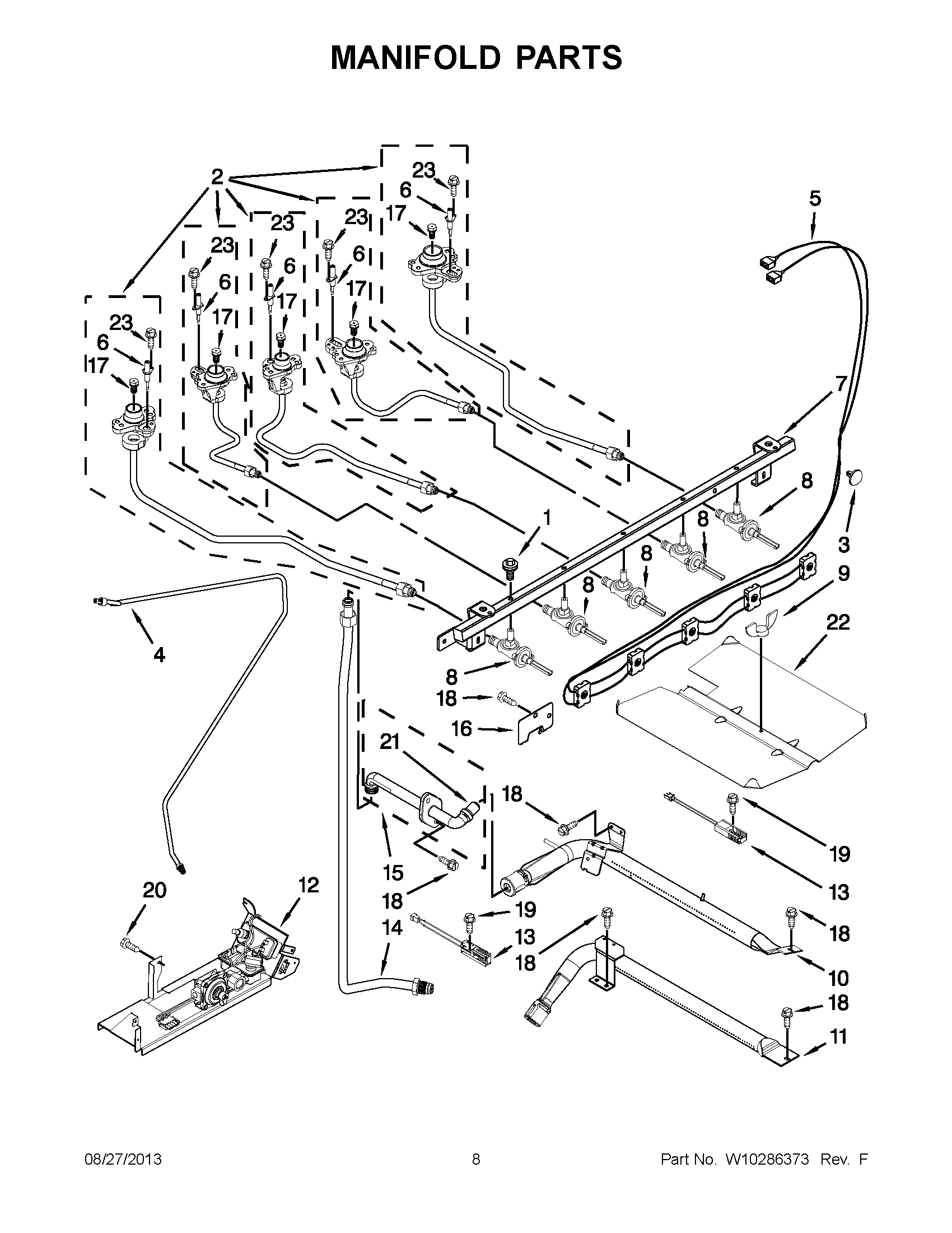

MGR8670WS0 05 – MANIFOLD PARTS
Products
Position
Product
NI
MAY W10271869
NI
LINER (NOT A SERVICEABLE PART)
1
MAY 7101P651-60
2
ORIFICE, BURNER (LEFT REAR)
2
ORIFICE, BURNER (RIGHT FRONT)
2
ORIFICE, BURNER (LEFT FRONT)
2
ORIFICE, BURNER (RIGHT REAR)
2
MAY W10169903
3
MAY 8010P149-60
4
MAY 7506P361-60
5
MAY 7403P983-60
6
Electrode (4)
7
MAY 7513P499-60
8
VALVE (CENTER)
8
VALVE (LR,LF,RR)
8
MAY 7502P501-60
8
MAY W10269504
9
NUT, WING
10
MAY W10160904
11
MAY 7505P331-60
12
MAY 7501P233-60
13
MAY 7432P136-60
13
IGNITOR, OVEN
14
MAY 7506P368-60
15
MAY W10247148
16
MAY 4005F421-45
17
ORIFICE, BURNER (CENTER)
17
ORIFICE, NATURAL (5K) (RIGHT REAR)
17
ORIFICE, BURNER (12K) (RIGHT FRONT)
17
ORIFICE, NATURAL (9.5K) (LEFT REAR)
17
MAY W10170511
18
SCREW
19
SCREW
20
SCREW
21
MAY 7507P366-60
22
MAY 3601P336-45
23
MAY 8273062
←
