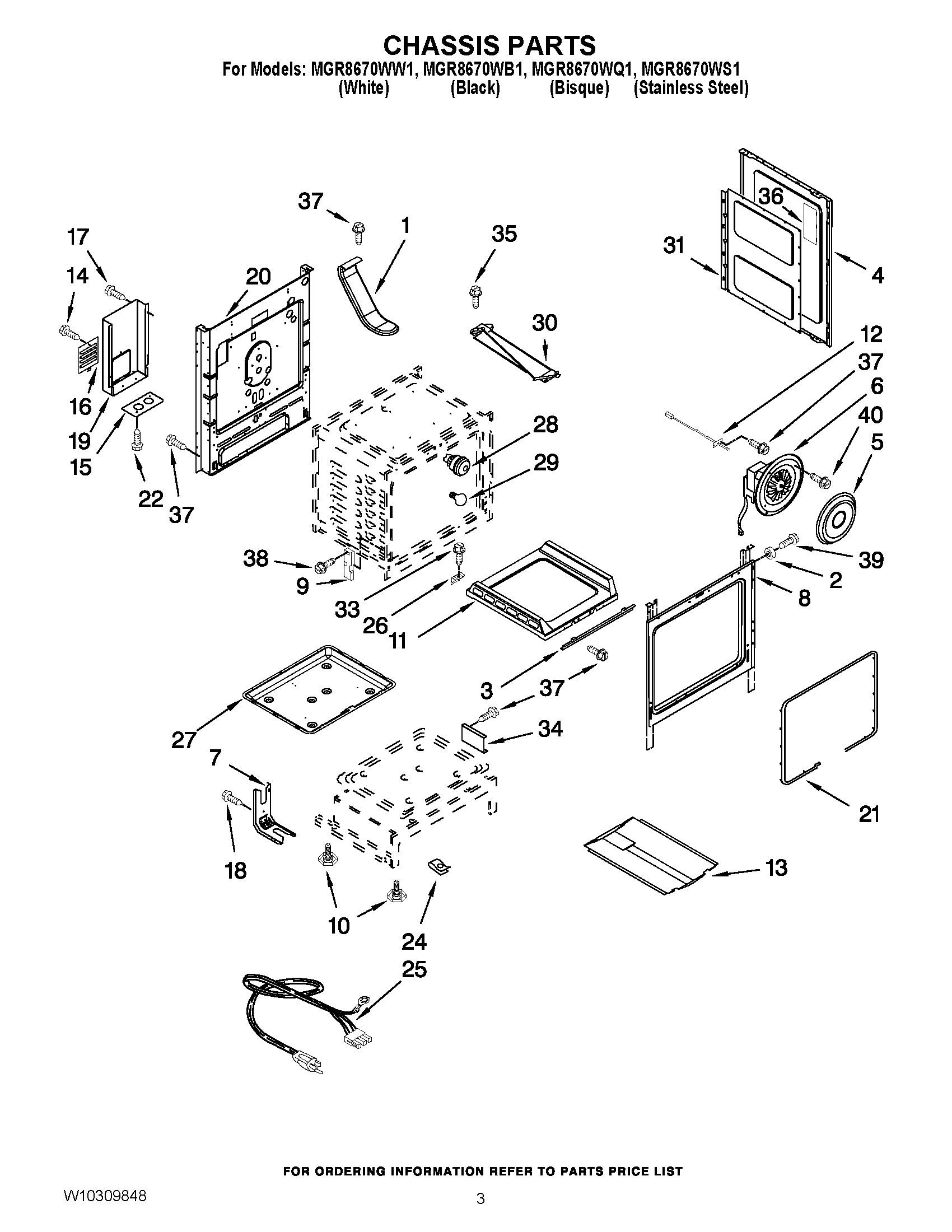

MGR8670WW1 03 – CHASSIS PARTS
Written by
in
MGR8670WW1 03 – CHASSIS PARTS
Products
Position
Product
NI
STRAP, INSULATION
NI
MAY 7002P424-60
NI
MAY W10243056
1
MAY 8026P080-60
2
MAY 8010P148-60
3
MAY 3807P680-45
4
Panel, Side (Bisque)
4
MAY 2618F172-69
4
MAY 2618F172-58
5
MAY 3604P409-51
7
BRACKET, ANTI-TIP
8
LINER (NOT A SERVICEABLE PART)
9
MAY 7106P125-60
10
Leg, Leveling
11
MAY W10211367
12
SENSOR, OVEN
13
MAY 3601P356-45
14
SCREW
15
MAY 3605P146-51
16
MAY 4005P704-51
17
MAY 3196160
18
SCREW, ANTI-TIP KIT
19
MAY W10243045
20
COVER, MAIN WIRE
21
MAY W10162385
22
MAY 7101P336-60
24
CLIP
25
MAY 7402P109-60
26
MAY 3801P798-51
27
MAY 3401F082-45
28
MAY 3196701
29
RANGE ONLY 40W 120V APPL BULB
30
MAY W10275451
31
MAY 3804F316-51
33
MAY 7101P500-60
34
MAY 3801P822-45
35
SCREW
36
MAY 7002P480-60
37
SCREW
38
SCREW (10-24X5/16-NI)
39
MAY 7101P618-60
40
MAY 7101P385-60
←
