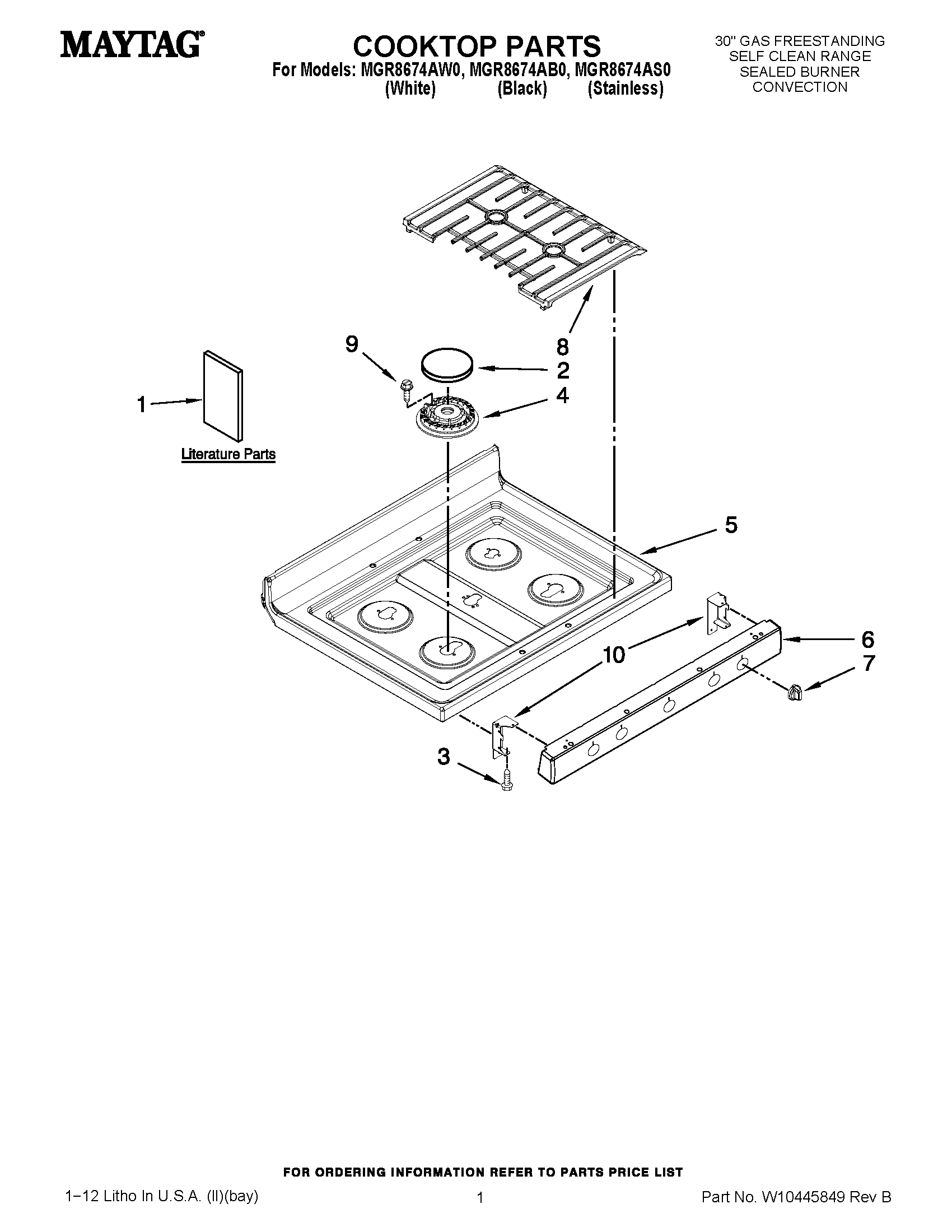

MGR8674AB0 01 – COOKTOP PARTS – Aparts

MGR8674AB0 01 – COOKTOP PARTS

Products

Position	Product
1	MAY W10403810
1	WIRING DIAGRAM (FRENCH)
1	MAY W10399029
1	MAY W10357517
1	MAY W10400067
1	MAY W10400066
1	TIPS, SAFE COOKING (FRENCH)
1	TIPS, SAFE COOKING (ENGLISH)
2	CAP, BURNER (SET)
3	SCREW
4	BURNER (LR/RR/RF)
4	HEAD, BURNER (RF)
4	HEAD, BURNER CTR.
5	MAY W10366729
5	MAY W10366730
6	MAY W10441315
6	MAY W10441313
6	MAY W10441312
7	MAY W10370187
7	MAY W10370188
7	MAY W10370189
8	MAY W10451804
9	SCREW
10	BRACKET, MANIFOLD (RIGHT)
10	MAY W10289096
