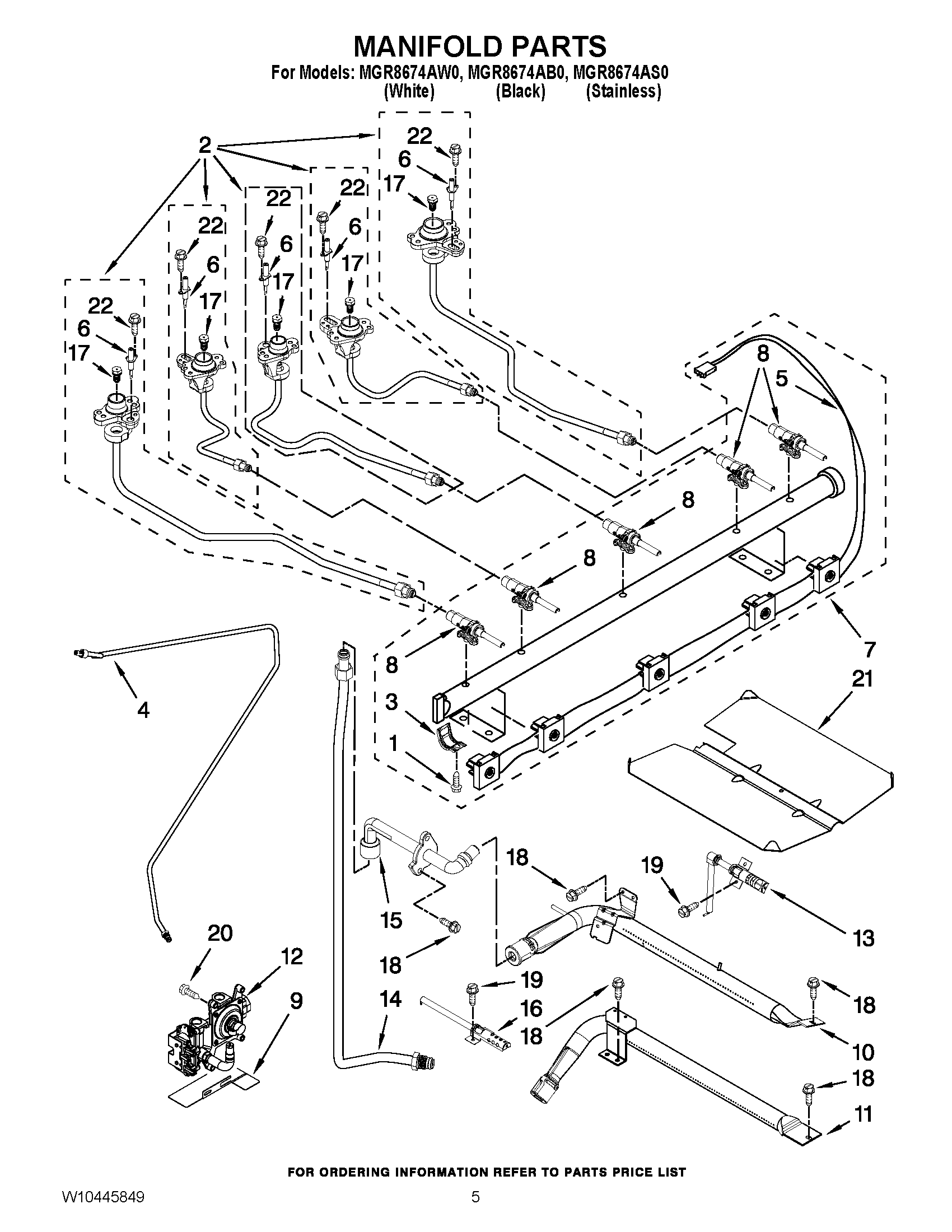

MGR8674AB0 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10400497
NI	MAY W10400494
NI	KIT, LP 5 ORIFICE CONVERSION
1	SCREW, VALVE
2	MAY W10157418
2	MAY W10157415
2	HOLDER, ORIFICE ((CENTER) 8K)
2	HOLDER, ORIFICE ((LF) 15K)
2	MAY W10347410
3	BRACKET, SADDLE VALVE
4	MAY W10224922
5	MAY W10413868
6	Electrode (4)
7	MAY W10413870
8	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8	VALVE, GAS (LEFT REAR)
9	BRACKET, AEGIS
10	MAY W10273197
11	MAY W10323984
12	MAY W10224915
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17	ORIFICE, NATURAL (5K) (RIGHT REAR)
17	ORIFICE, NATURAL (9.5K) (LEFT REAR)
18	SCREW
19	SCREW
20	SCREW
21	MAY 3601P336-45
22	MAY 8273062
