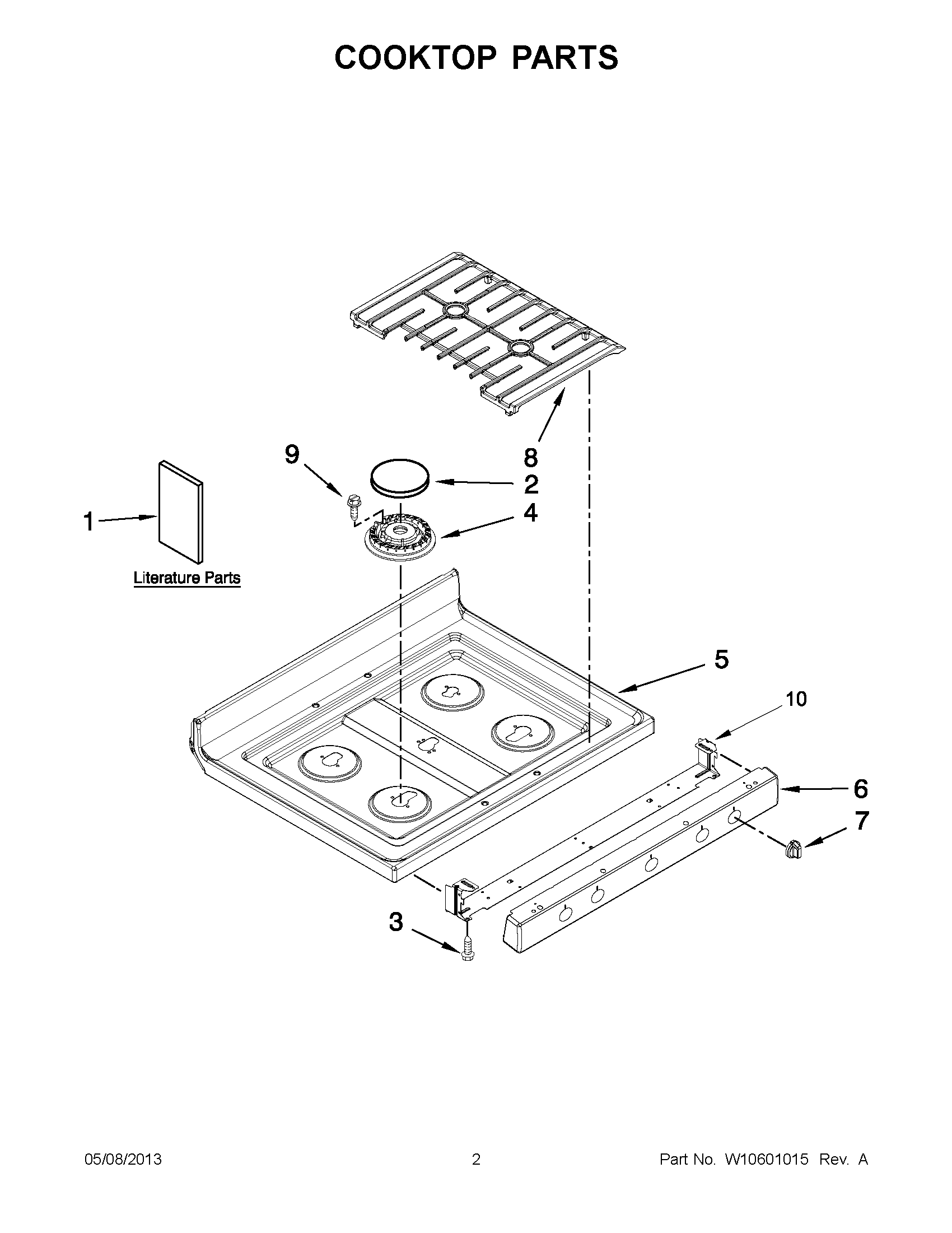

MGR8674AS1 01 – COOKTOP PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1MAY W10399029
1MAY W10553363
1MAY W10400067
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10400066
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER (SET)
3SCREW
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5MAY W10366729
5MAY W10366730
6MAY W10441315
6MAY W10441313
6MAY W10441312
7MAY W10370187
7MAY W10370188
7MAY W10370189
8MAY W10451804
9SCREW
10BRACKET, MANIFOLD (REAR)
10BRACKET, MAINFOLD (FRONT)
