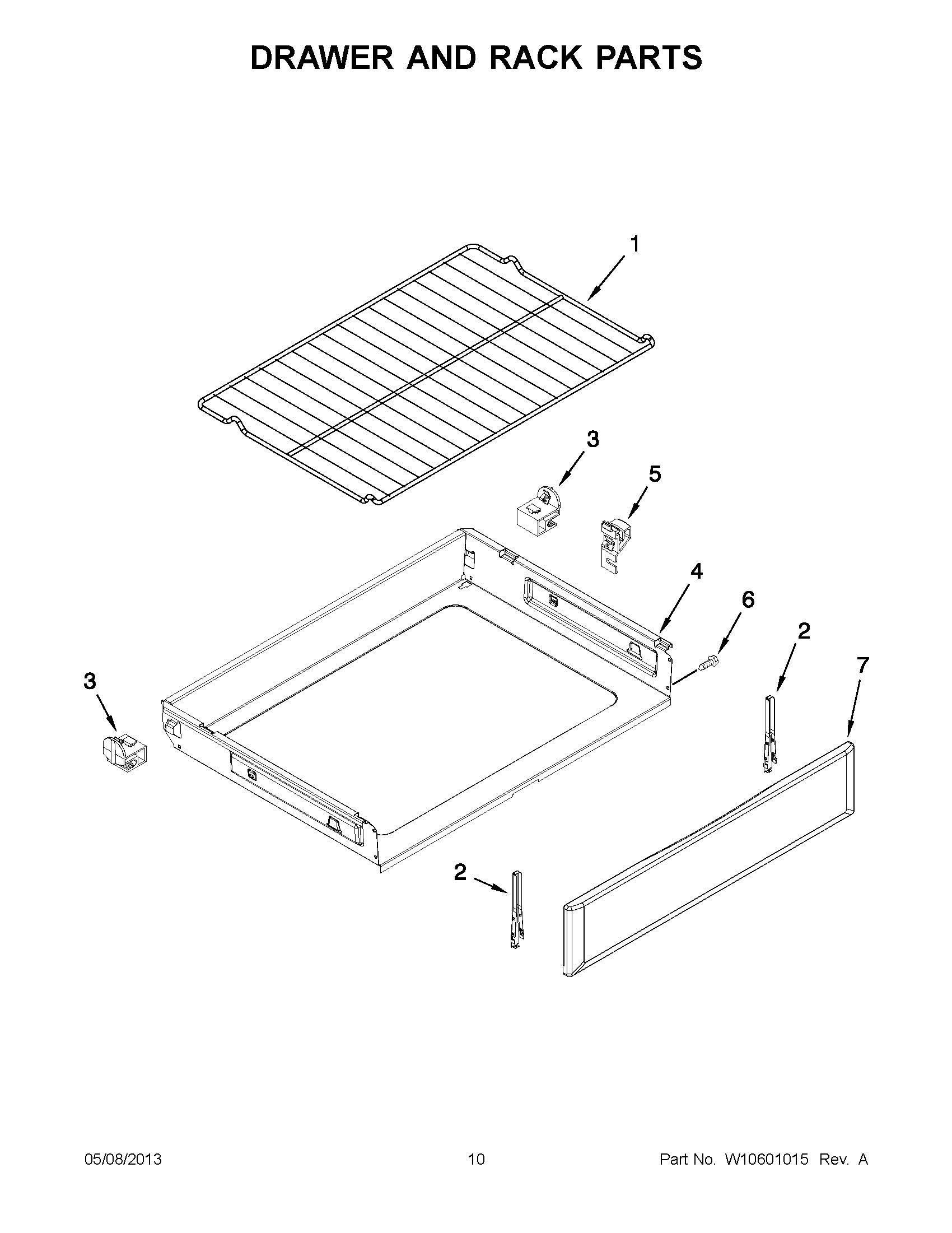

MGR8674AW1 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	MAY W10179196
2	BRACKET, MOUNTING
3	GLIDE, REAR DRAWER
4	MAY W10300032
5	GLIDE, DRAWER
6	SCREW
7	PANEL, DRAWER FRNT (WHITE)
7	PANEL, DRAWER FRNT (BLACK)
7	PANEL, DRAWER FRNT (STAINLESS)
