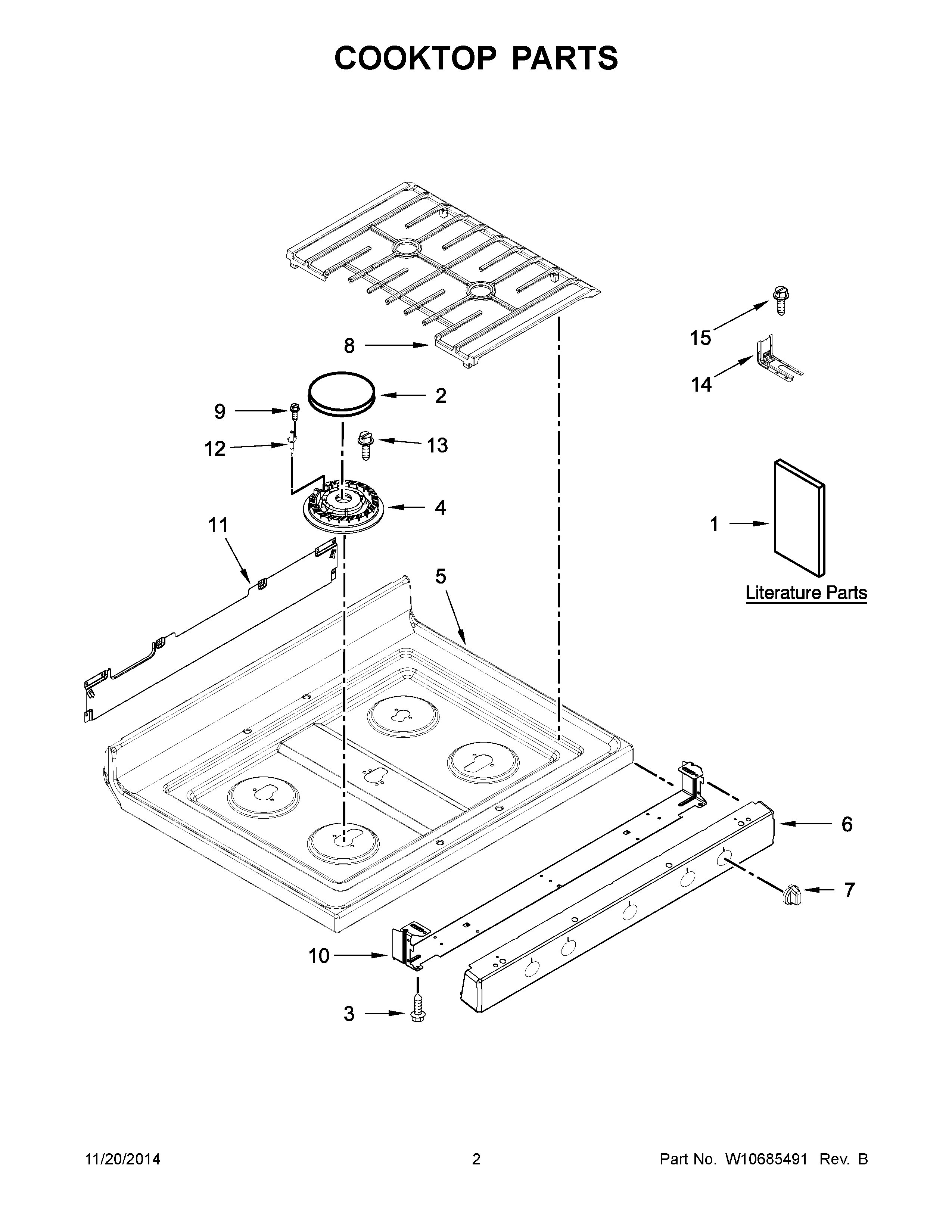

MGR8700DB0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10696251
NI	MAY W10519920
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW, GROUND (GRN)
NI	CLIP, WIRE
NI	WIRING HARNESS PARTS, HARNESS, DSI 200C
NI	MAY W10519952
NI	CLIP, GAS WIRING
1	MAY W10553363
1B	MAY W10538795
1A	MAY W10667178
1C	TIPS, SAFE COOKING (ENGLISH)
1D	MAY W10400066
2	CAP, BURNER (SET)
3	SCREW
4B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5	MAY W10366729
5A	MAY W10366730
6B	MAY W10655891
6A	MAY W10655890
6	MAY W10655889
7	MAY W10650400
8	MAY W10655132
9	SCREW
10	BRACKET, MAINFOLD (FRONT)
11	BRACKET, MANIFOLD (REAR)
12	ELECTRODE (RIGHT REAR)
13	MAY 8273062
14	BRACKET, ANTI-TIP
15	SCREW, ANTI-TIP KIT
