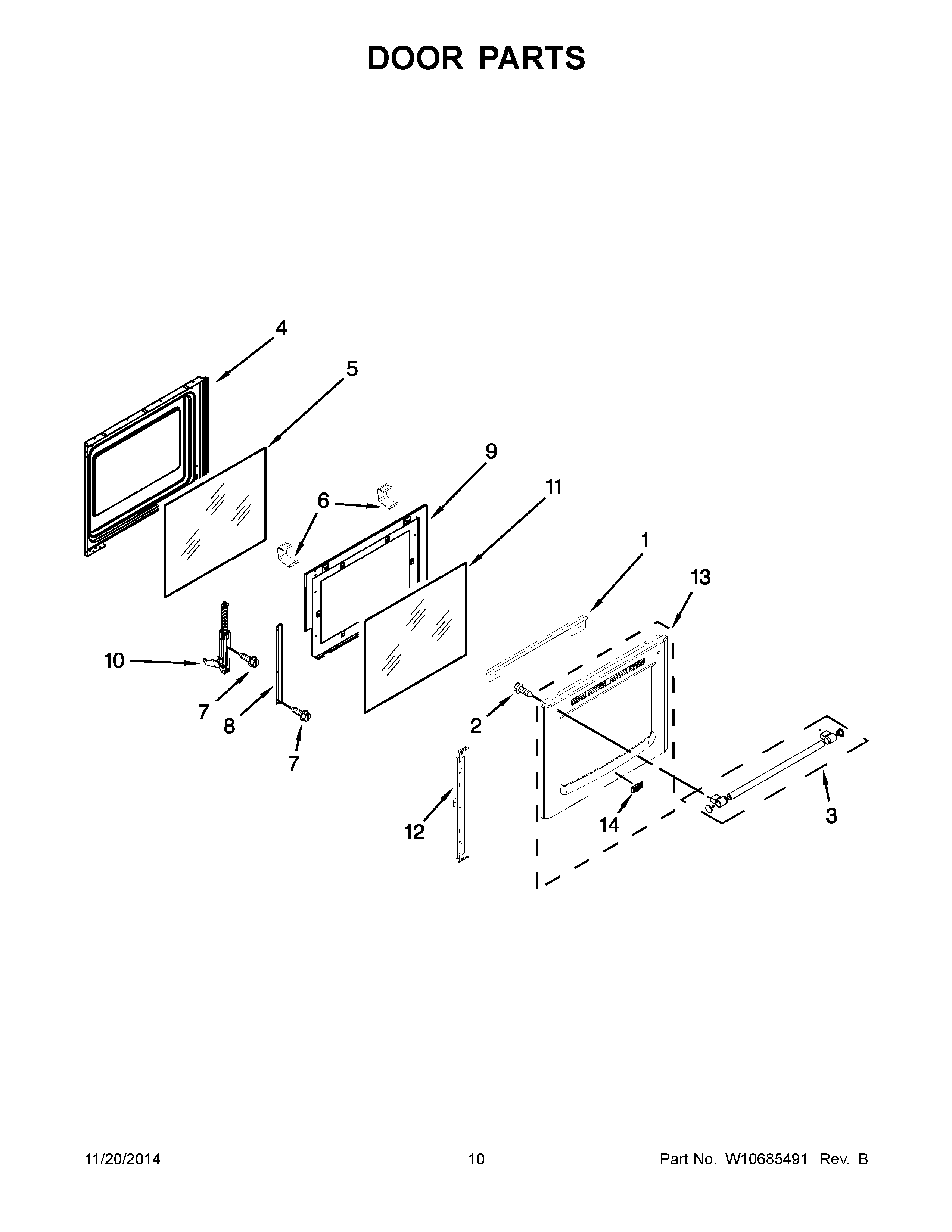

MGR8700DB0 06 – DOOR PARTS

MGR8700DB0 06 – DOOR PARTS

Written by

in

MGR8700DB0 06 – DOOR PARTS

Products

Position	Product
1	MAY W10330075
1A	TRIM, VENT (BLACK)
2	SCREW
3B	MAY W10665831
3	HANDLE, DOOR (WHITE)
3A	HANDLE, DOOR (BLACK)
4	LINING, DOOR
5	GLASS, INNER
6	CLIP, PANEL
7	SCREW
8	MAY W10294852
9	MAY W10294853
10	HINGE, DOOR (ACTIVE)
11	MAY W10615599
12	MAY W10294851
13	MAY W10325665
13A	MAY W10325666
13B	MAY W10325668
14	MAY W10636267
