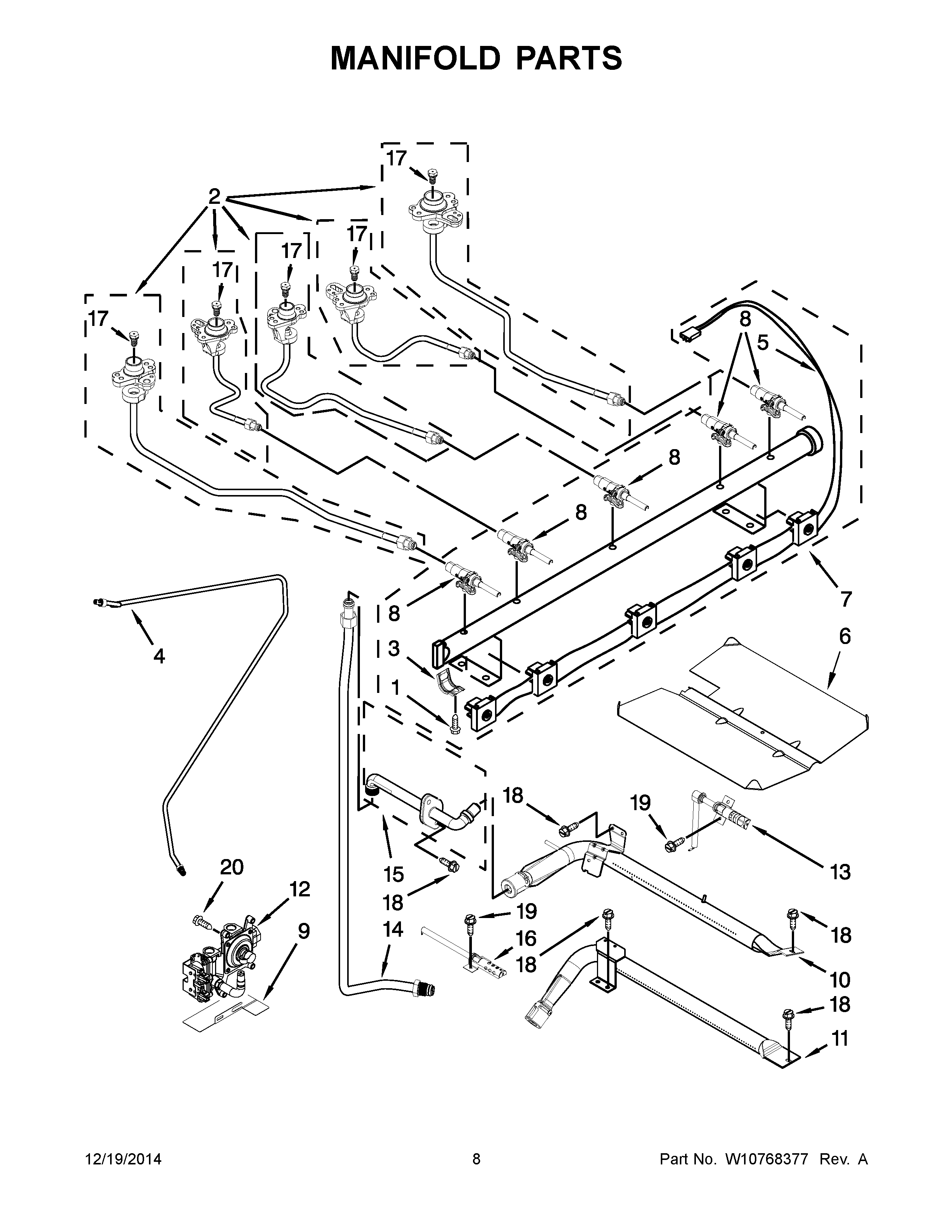

MGR8700DB1 05 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP 5 ORIFICE CONVERSION
NI	MISCELLANEOUS PARTS, KIT, BAKE & BROIL
1	SCREW, VALVE
2C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
2D	HOLDER, ORIFICE (CENTER (8K))
2B	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
2A	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
2	HOLDER, ORIFICE (LEFT FRONT (17K))
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	MAY W10413868
6	MAY 3601P336-45
7	MAY W10413870
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8B	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10602004
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17B	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17	MAY W10170511
17D	MAY W10170507
17C	ORIFICE, NATURAL (5K) (RIGHT REAR)
17A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
18	SCREW
19	SCREW
20	SCREW
