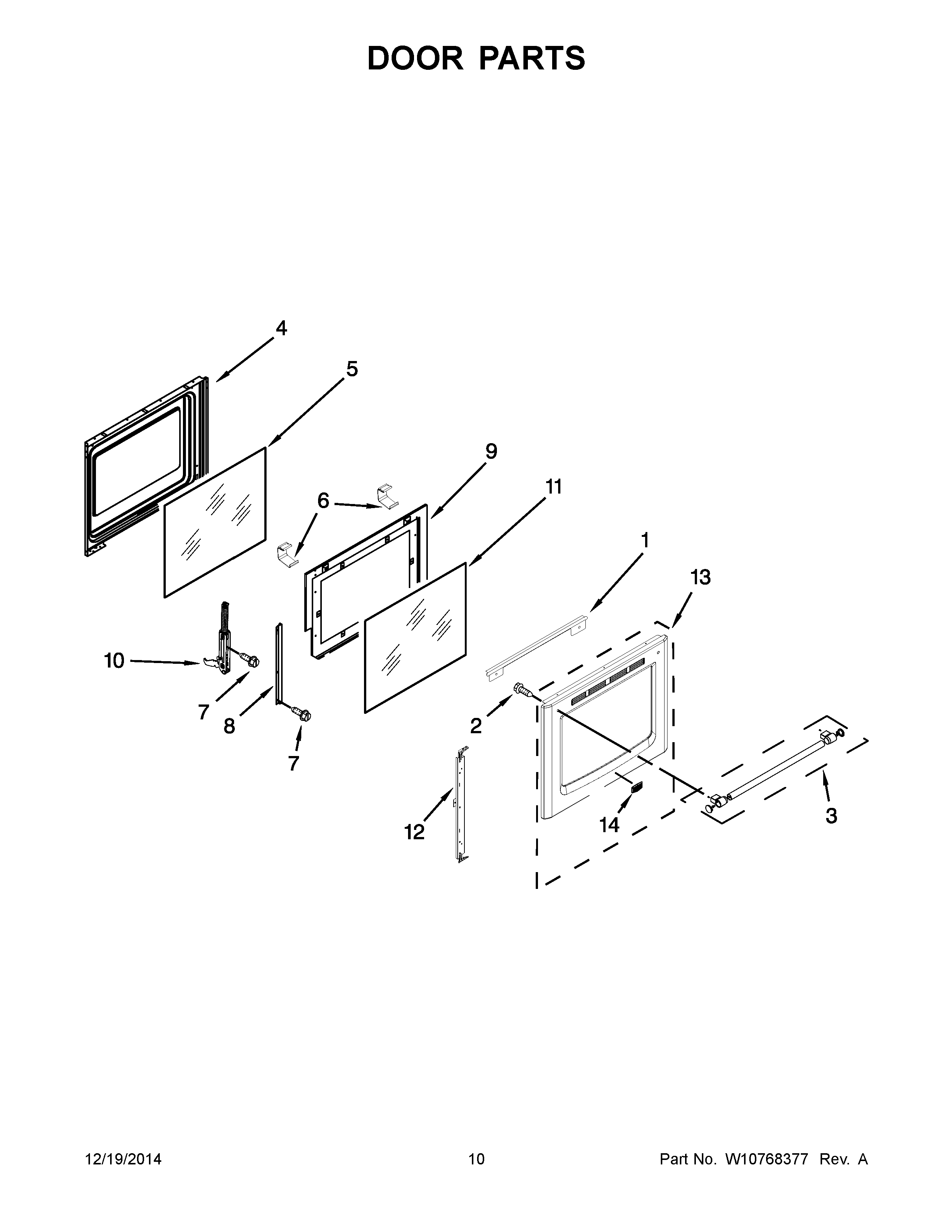

MGR8700DB1 06 – DOOR PARTS

MGR8700DB1 06 – DOOR PARTS

Written by

in

MGR8700DB1 06 – DOOR PARTS

Products

PositionProduct
1MAY W10330075
1ATRIM, VENT (BLACK)
2SCREW
3BMAY W10665831
3HANDLE, DOOR (WHITE)
3AHANDLE, DOOR (BLACK)
4LINING, DOOR
5GLASS, INNER
6CLIP, PANEL
7SCREW
8MAY W10294852
9MAY W10294853
10HINGE, DOOR (ACTIVE)
11MAY W10615599
12MAY W10294851
13MAY W10325665
13AMAY W10325666
13BMAY W10325668
14MAY W10636267
