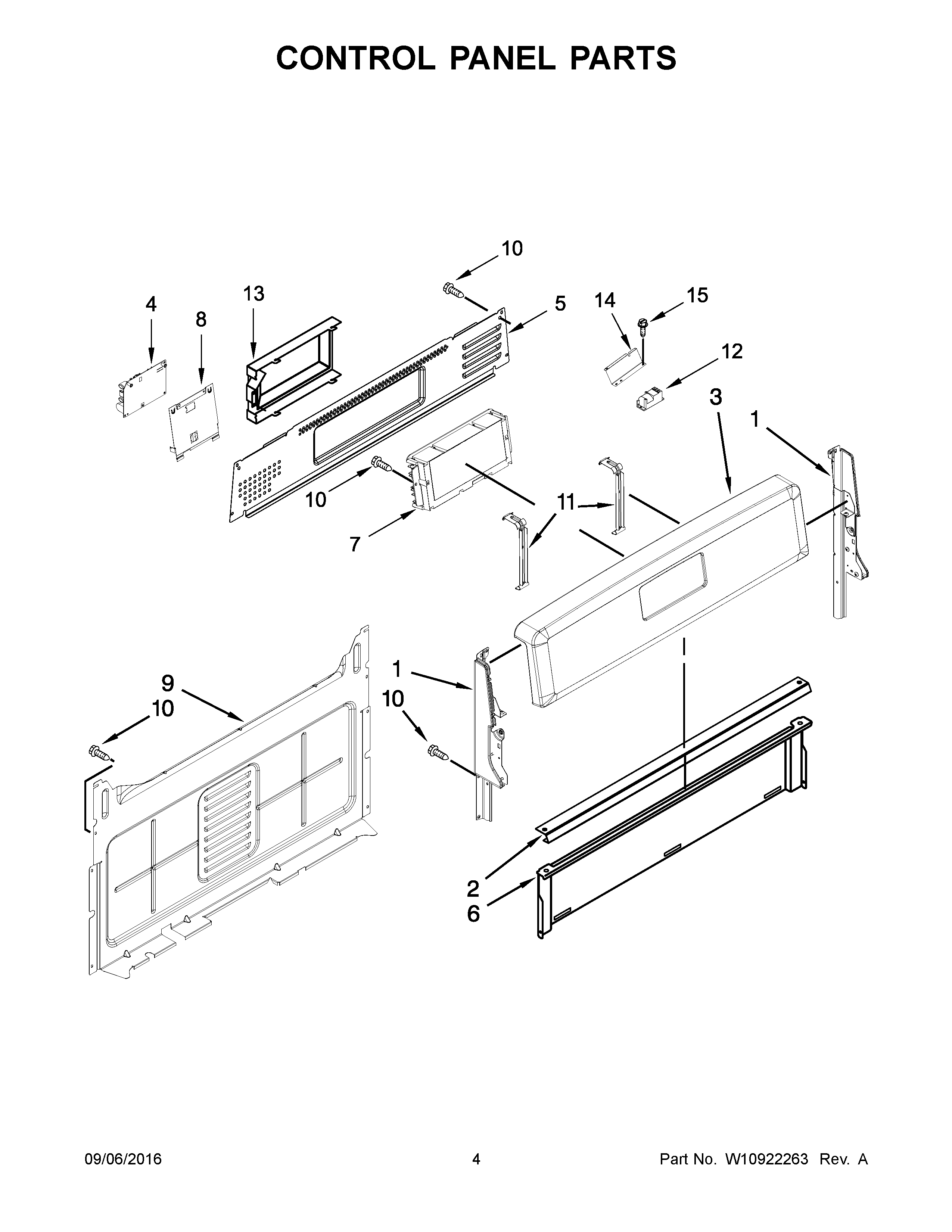

MGR8700DB3 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (WHITE (LEFT))
1A	ENDCAP (BLACK (RIGHT))
1C	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3B	MAY W10655864
3	MAY W10655861
3A	MAY W10655858
4	MAY W10511278
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10655868
7B	MAY W10655869
7A	MAY W10655867
8	MAY W10516463
9	Cover, Back
10	SCREW
11	BRACKET, CONTROL
12	MAY W10475149
13	Cover
14	BRACKET, IGNITOR
15	SCREW
