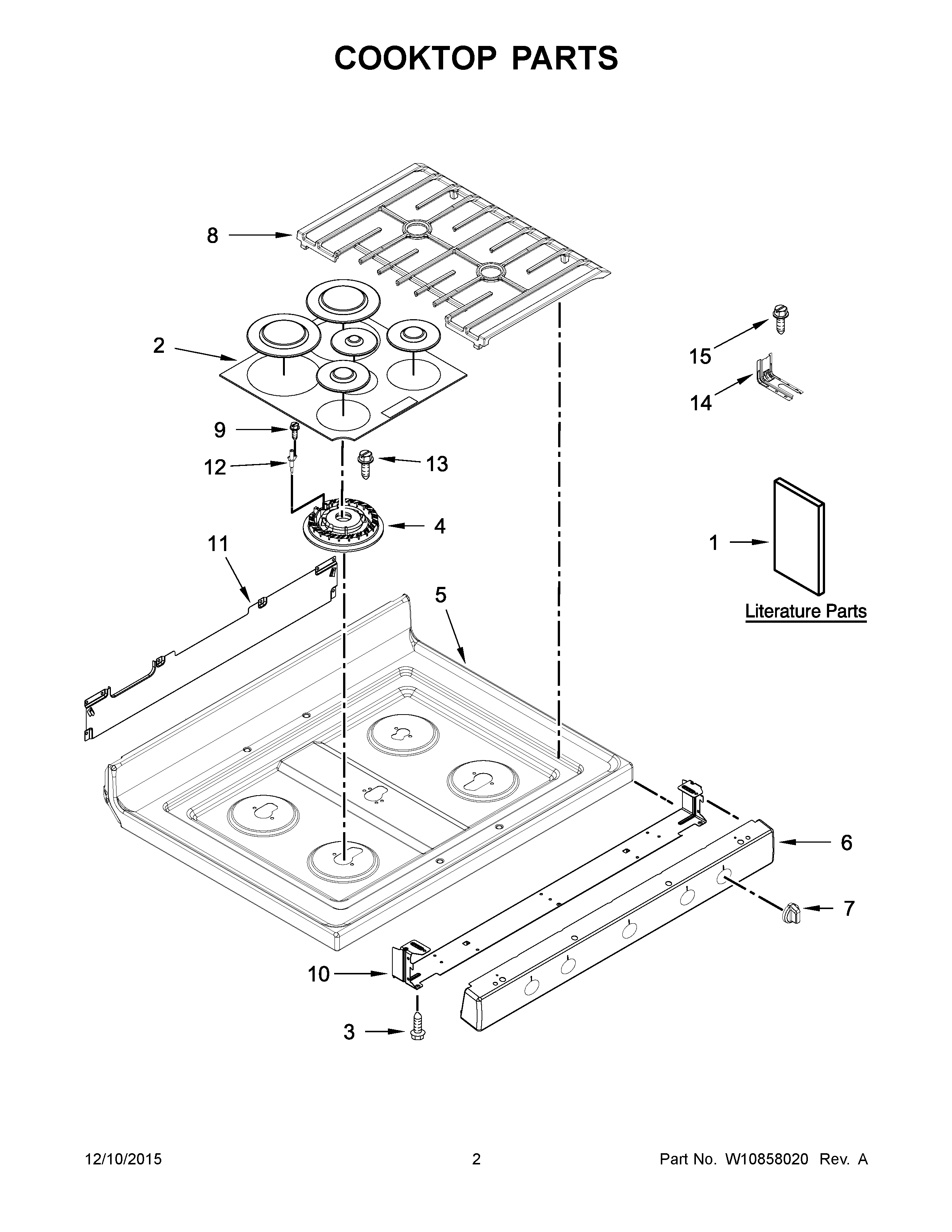

MGR8700DE2 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10744212
NIMAY W10519952
NIMAY W10519920
NIHARNESS, BAKE/BROIL
NICLIP, GAS WIRING
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
1MAY W10694025
1AMAY W10667178
1CTIPS, SAFE COOKING (ENGLISH)
1DMAY W10538795
1BMAY W10400066
2CAP, BURNER (SET)
3SCREW
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4BASSEMBLY, BURNER (6K) (RIGHT REAR)
4AASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5AMAY W10366730
5MAY W10366729
6AMAY W10655890
6BMAY W10655891
6MAY W10655889
7MAY W10650400
8MAY W10655132
9SCREW
10BRACKET, MAINFOLD (FRONT)
11BRACKET, MANIFOLD (REAR)
12ELECTRODE (RIGHT REAR)
13MAY 8273062
14BRACKET, ANTI-TIP
15SCREW, ANTI-TIP KIT
