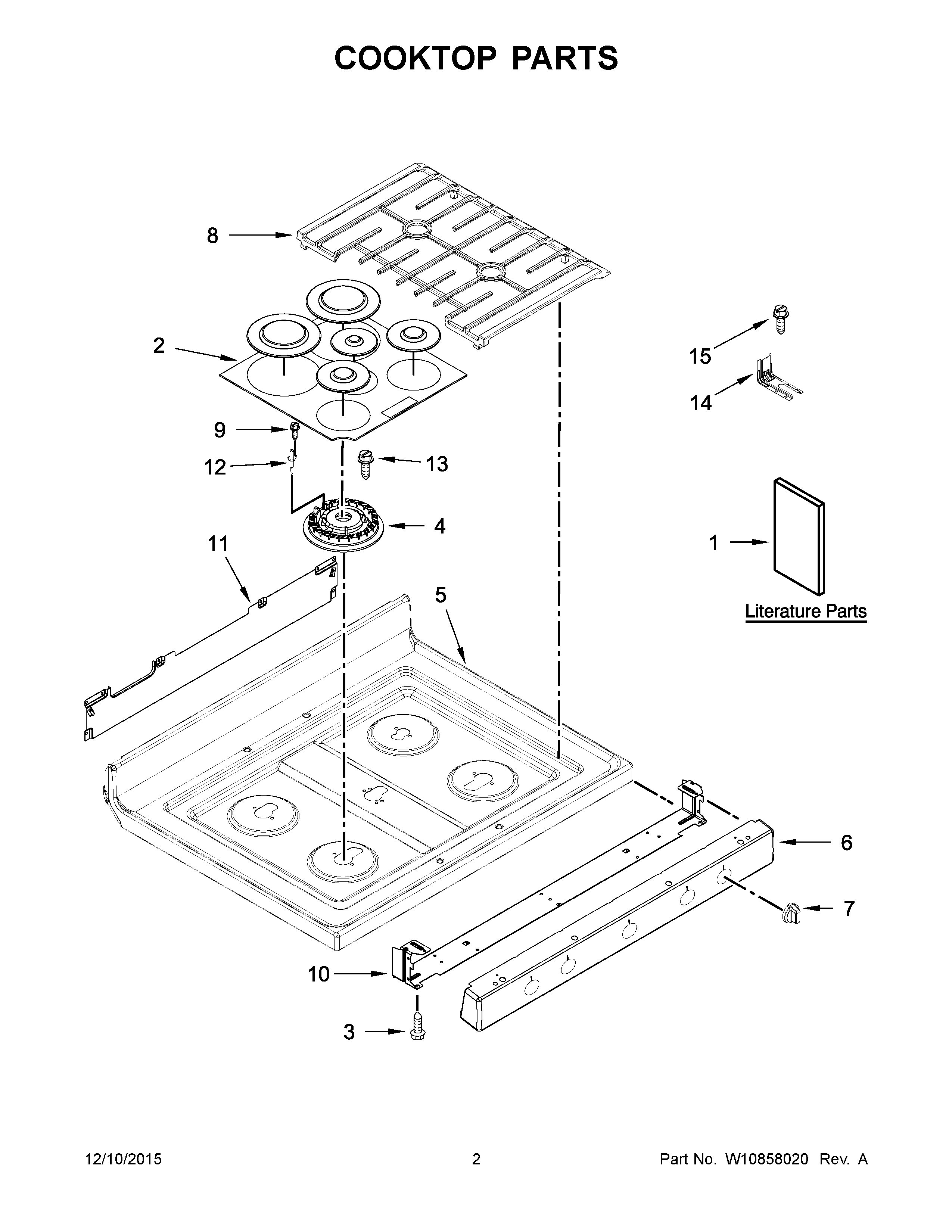

MGR8700DH2 02 – COOKTOP PARTSadmin2025-04-26T09:15:22+00:00MGR8700DH2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10744212 |
| NI | MAY W10519952 |
| NI | MAY W10519920 |
| NI | HARNESS, BAKE/BROIL |
| NI | CLIP, GAS WIRING |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CLIP, HARNESS |
| 1 | MAY W10694025 |
| 1A | MAY W10667178 |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1D | MAY W10538795 |
| 1B | MAY W10400066 |
| 2 | CAP, BURNER (SET) |
| 3 | SCREW |
| 4 | ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT) |
| 4B | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 4A | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 5A | MAY W10366730 |
| 5 | MAY W10366729 |
| 6A | MAY W10655890 |
| 6B | MAY W10655891 |
| 6 | MAY W10655889 |
| 7 | MAY W10650400 |
| 8 | MAY W10655132 |
| 9 | SCREW |
| 10 | BRACKET, MAINFOLD (FRONT) |
| 11 | BRACKET, MANIFOLD (REAR) |
| 12 | ELECTRODE (RIGHT REAR) |
| 13 | MAY 8273062 |
| 14 | BRACKET, ANTI-TIP |
| 15 | SCREW, ANTI-TIP KIT |
