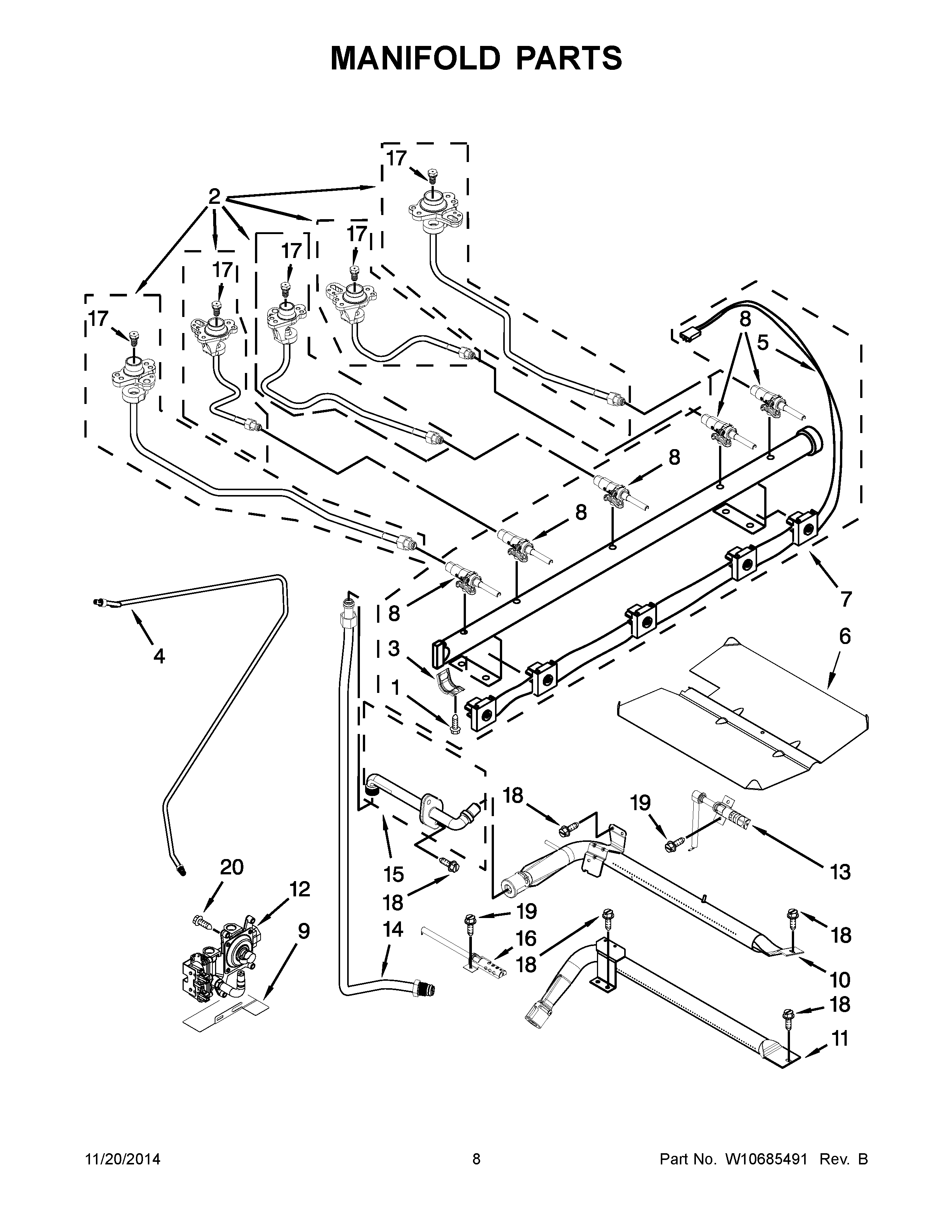

MGR8700DS0 05 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP 5 ORIFICE CONVERSION
1	SCREW, VALVE
2C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
2	HOLDER, ORIFICE (LEFT FRONT (17K))
2A	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
2D	HOLDER, ORIFICE (CENTER (8K))
2B	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	MAY W10413868
6	MAY 3601P336-45
7	MAY W10413870
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8A	VALVE, GAS (LEFT REAR)
8B	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10602004
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17	MAY W10170511
17D	MAY W10170507
17A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
17C	ORIFICE, NATURAL (5K) (RIGHT REAR)
17B	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
18	SCREW
19	SCREW
20	SCREW
