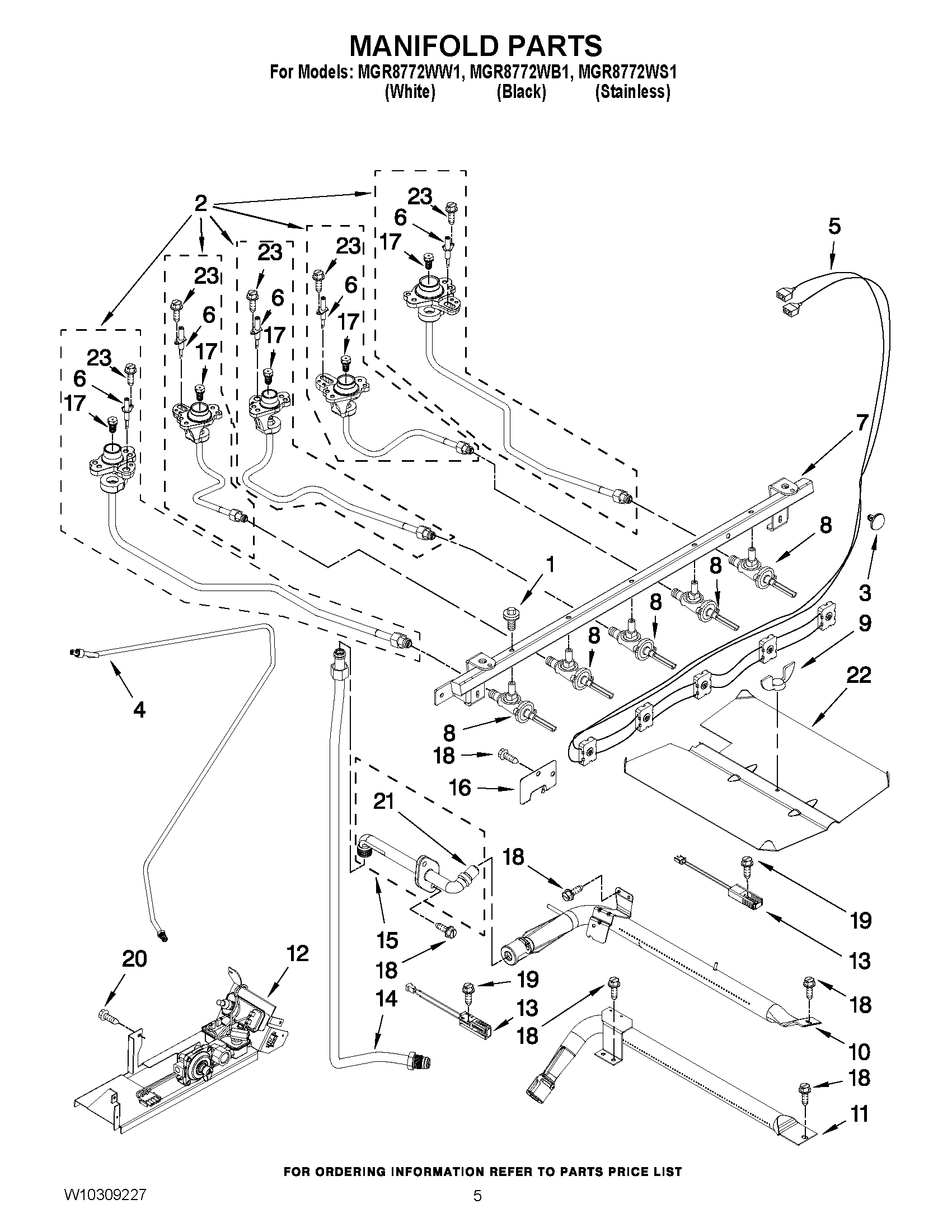

MGR8772WS1 04 – MANIFOLD PARTSadmin2025-04-26T09:13:58+00:00MGR8772WS1 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10271868 |
| 1 | BOLT |
| 2 | MAY W10169909 |
| 2 | ORIFICE, BURNER (RIGHT FRONT) |
| 2 | ORIFICE, BURNER (LEFT REAR) |
| 2 | ORIFICE, BURNER (RIGHT REAR) |
| 2 | MAY W10169903 |
| 3 | MAY 8010P149-60 |
| 4 | MAY 7506P361-60 |
| 5 | MAY 7403P983-60 |
| 6 | Electrode (4) |
| 7 | MAY 7513P499-60 |
| 8 | MAY W10269504 |
| 8 | MAY 7502P501-60 |
| 8 | VALVE (LR,LF,RR) |
| 10 | MAY W10160904 |
| 11 | MAY 7505P331-60 |
| 12 | MAY 7501P233-60 |
| 13 | MAY 7432P136-60 |
| 13 | IGNITOR, OVEN |
| 14 | MAY 7506P368-60 |
| 15 | MAY W10247148 |
| 16 | MAY 4005F421-45 |
| 17 | ORIFICE, BURNER (CENTER) |
| 17 | ORIFICE, BURNER (LEFT FRONT) |
| 17 | ORIFICE, NATURAL (5K) (RIGHT REAR) |
| 17 | ORIFICE, NATURAL (9.5K) (LEFT REAR) |
| 17 | MAY W10170511 |
| 18 | SCREW |
| 19 | SCREW |
| 20 | SCREW |
| 21 | MAY 7507P366-60 |
| 22 | MAY 3601P336-45 |
| 23 | MAY 8273062 |
