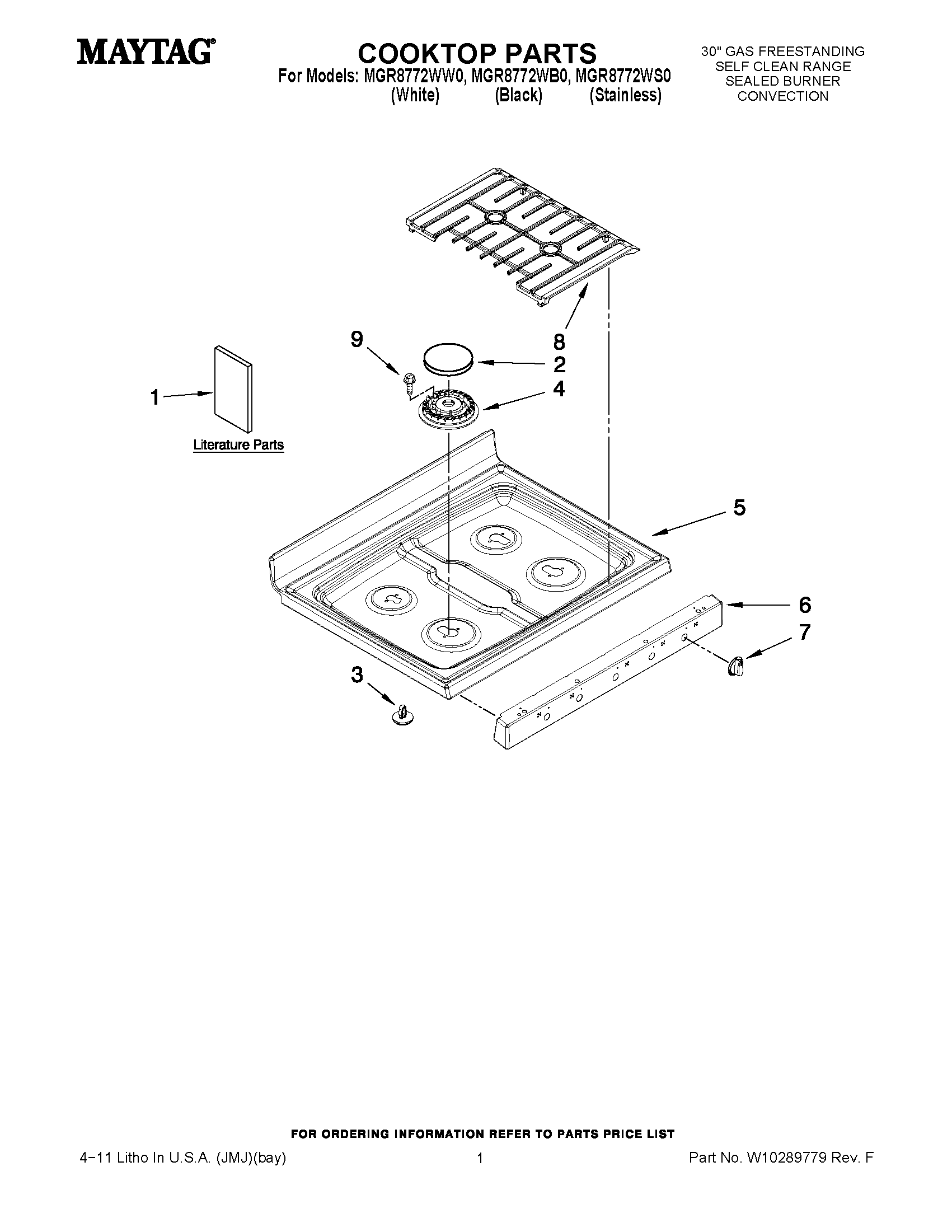

MGR8772WW0 01 – COOKTOP PARTS

MGR8772WW0 01 – COOKTOP PARTS

Written by

in

MGR8772WW0 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TECH SHEET
1MAY W10239464
1MAY W10258096
2Cap, Burner R. Front, L. Rear (Grey)
2CAP, BURNER (BLACK (LR/RF))
2CAP, BURNER (WHITE(RR))
2CAP, BURNER (WHITE(LF))
2CAP, BURNER (LR)
2CAP, BURNER (RR & LF)
3MAY 8010P149-60
4BURNER (LR/RR/RF)
4HEAD, BURNER CTR.
4HEAD, BURNER (RF)
5MAY W10237151
5MAY W10237150
6MAY W10211380
6MAY W10211381
6MAY W10211395
7MAY W10111302
7MAY W10200192
7KNOB, BURNER (BLACK)
8GRATE, BURNER (BLACK)
8GRATE, BURNER (GRAY)
9SCREW
