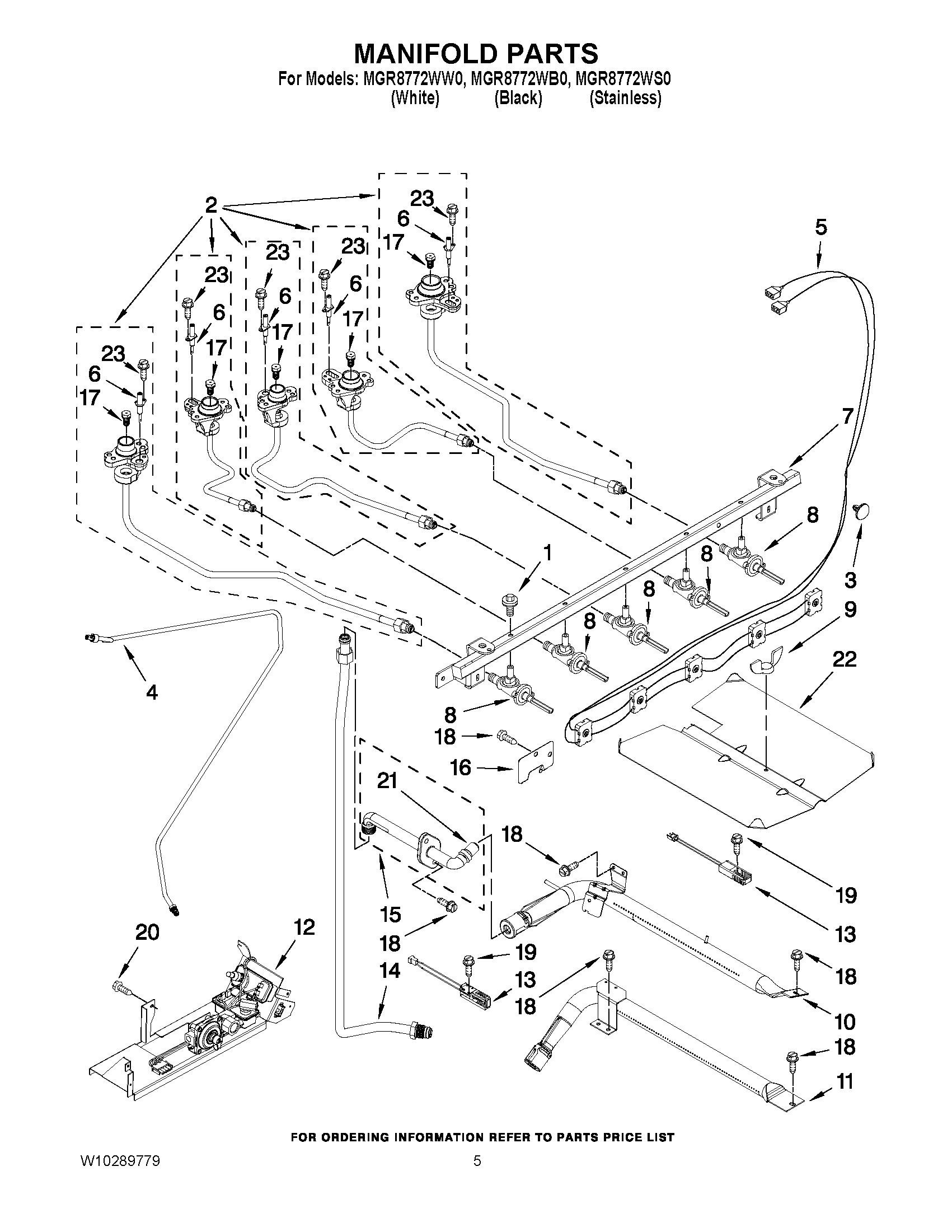

MGR8772WW0 04 – MANIFOLD PARTS
Written by
in
MGR8772WW0 04 – MANIFOLD PARTS
Products
Position
Product
NI
MAY W10271868
1
MAY 7101P651-60
2
MAY W10169909
2
ORIFICE, BURNER (RIGHT FRONT)
2
ORIFICE, BURNER (LEFT REAR)
2
MAY W10169903
2
ORIFICE, BURNER (RIGHT REAR)
3
MAY 8010P149-60
4
MAY 7506P361-60
5
MAY 7403P983-60
6
Electrode (4)
7
MAY 7513P499-60
8
MAY 7502P501-60
8
VALVE (LR,LF,RR)
8
VALVE (CENTER)
9
NUT, WING
10
MAY W10160904
11
MAY 7505P331-60
12
MAY 7501P233-60
13
MAY 7432P136-60
13
IGNITOR, OVEN
14
MAY W10247148
15
MAY 7507P357-60
16
MAY 4005F421-45
17
ORIFICE, BURNER (CENTER)
17
HEAD, BURNER CTR.
17
HEAD, BURNER (RF)
17
BURNER (LR/RR/RF)
18
SCREW
19
SCREW
20
SCREW
21
MAY 7507P366-60
22
MAY 3601P336-45
23
MAY 8273062
←
