MGR8772WW1 03 – CHASSIS PARTS – Aparts

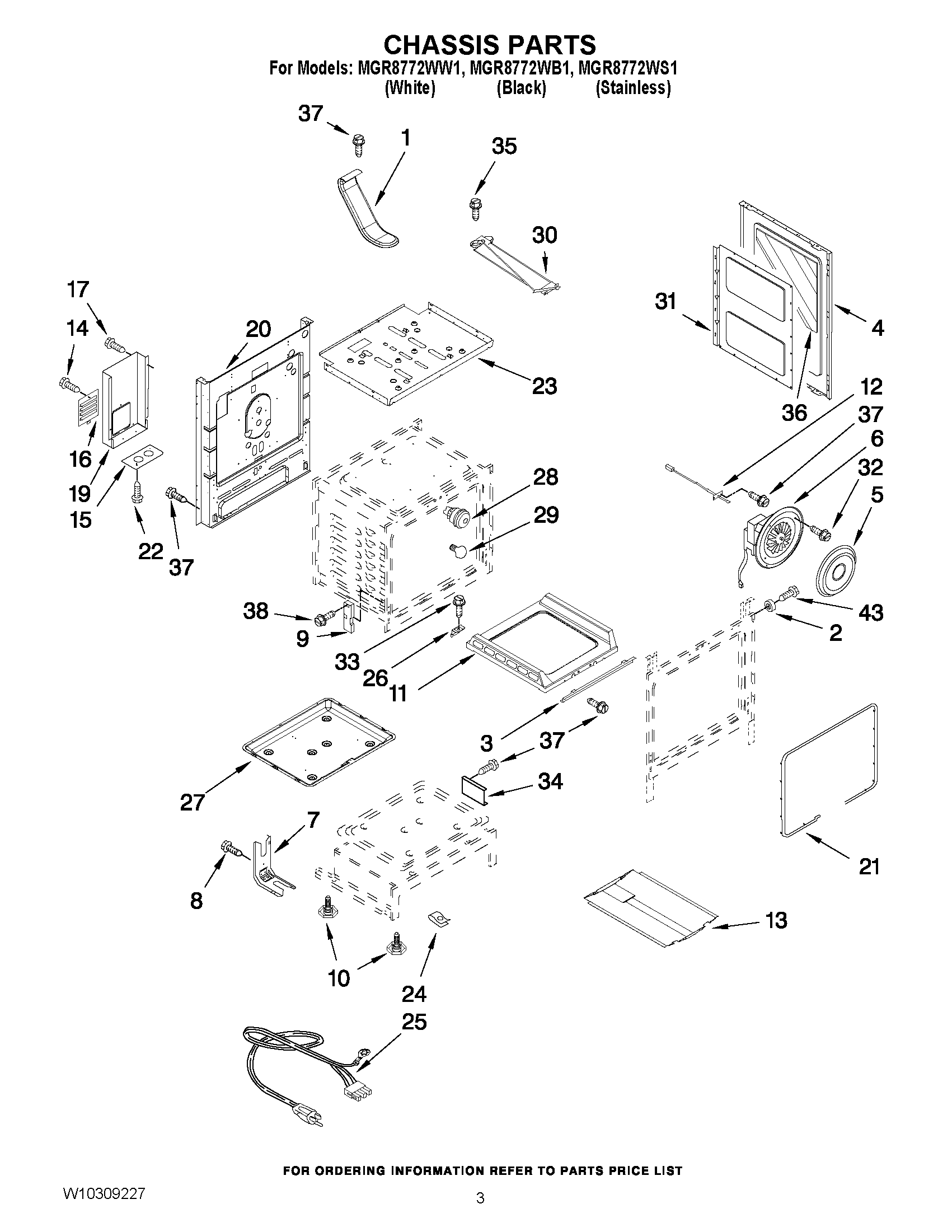

MGR8772WW1 03 – CHASSIS PARTS

Products

Position	Product
NI	STRAP, INSULATION
NI	MAY 7002P424-60
NI	MAY W10243056
NI	INSULATION
1	MAY 8026P080-60
2	MAY 8010P148-60
3	MAY 3807P680-45
4	MAY 2618F172-69
4	MAY 2618F172-58
5	MAY 3605F305-19
6	Fan, Convection
7	BRACKET, ANTI-TIP
8	SCREW, ANTI-TIP KIT
9	MAY 7106P125-60
10	Leg, Leveling
11	MAY W10211367
12	SENSOR, OVEN
13	MAY 3601P356-45
15	MAY 3605P146-51
16	MAY 4005P704-51
17	MAY 3196160
19	MAY W10243045
20	COVER, MAIN WIRE
21	MAY W10162385
22	MAY 7101P336-60
23	MAY 3604P409-51
24	CLIP
25	MAY 7402P109-60
26	MAY 3801P798-51
27	MAY 3401F082-45
28	MAY 3196701
29	RANGE ONLY 40W 120V APPL BULB
30	MAY W10275451
31	MAY 3804F316-51
32	SCREW
34	MAY 3801P822-45
35	SCREW
36	MAY W10182346
37	SCREW
38	SCREW (10-24X5/16-NI)
43	SCREW
