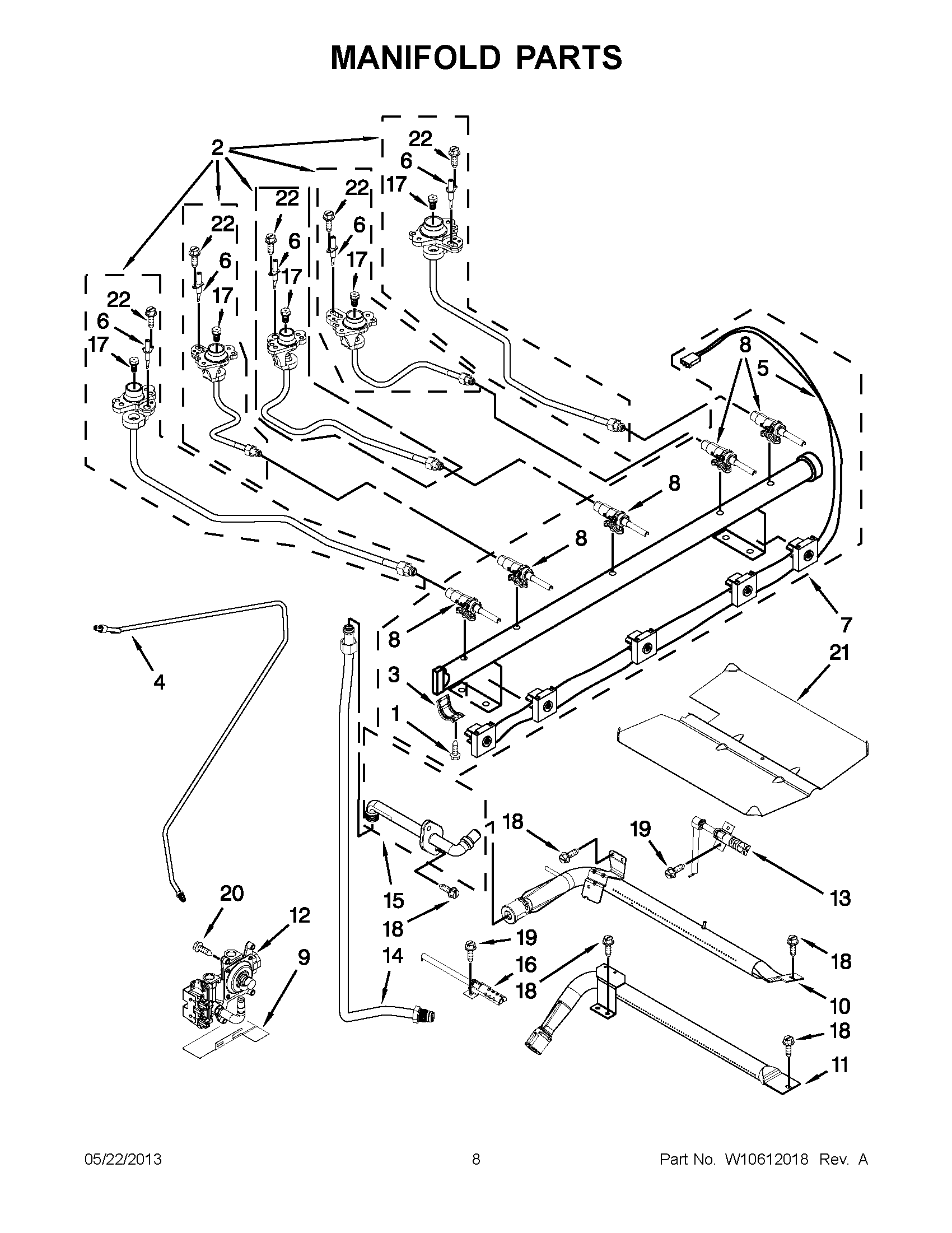

MGR8775AB1 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP 5 ORIFICE CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
2	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
2	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
2	HOLDER, ORIFICE (LEFT FRONT (17K))
2	HOLDER, ORIFICE (CENTER (8K))
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	MAY W10413868
6	Electrode (4)
7	MAY W10413870
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10439243
12	MAY W10224915
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17	MAY W10170507
17	MAY W10170511
17	ORIFICE, NATURAL (5K) (RIGHT REAR)
17	ORIFICE, NATURAL (9.5K) (LEFT REAR)
17	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
18	SCREW
19	SCREW
20	SCREW
21	MAY 3601P336-45
22	MAY 8273062
