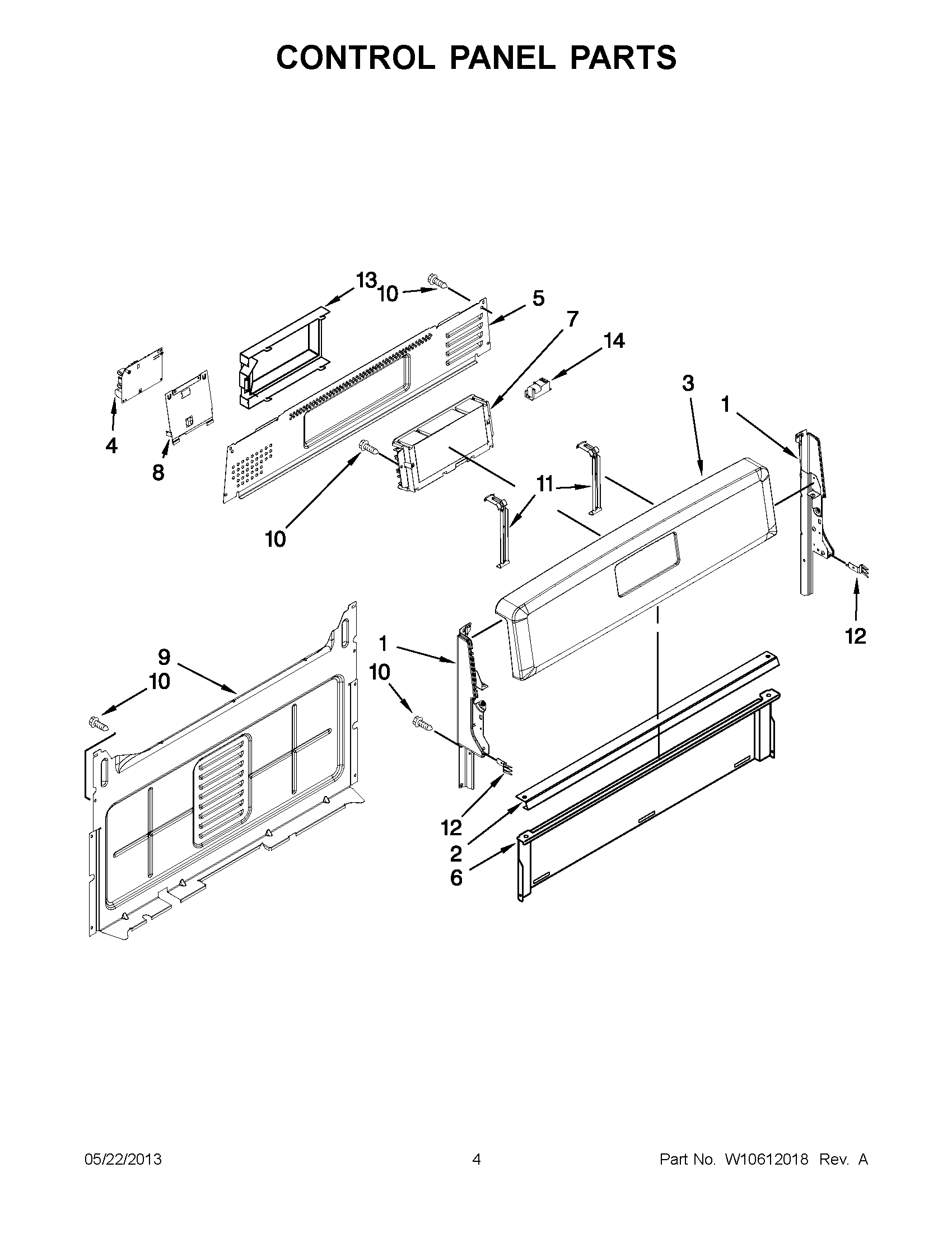

MGR8775AS1 02 – CONTROL PANEL PARTS

MGR8775AS1 02 – CONTROL PANEL PARTS

Written by

in

MGR8775AS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3WPL W10333932
3WPL W10333931
3WPL W10333933
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPL W10477078
7WPL W10477077
7WPL W10477079
8W10516463 Whirlpool Mounting Bracket
9W10184251 Whirlpool Rear Cover
10SCREW
11W11230932 Whirlpool Bracket Mounting
128523412 Whirlpool Mounting Bracket
13W10158780 Whirlpool Rear Cover
14WPW10475149 Whirlpool Spark Module
