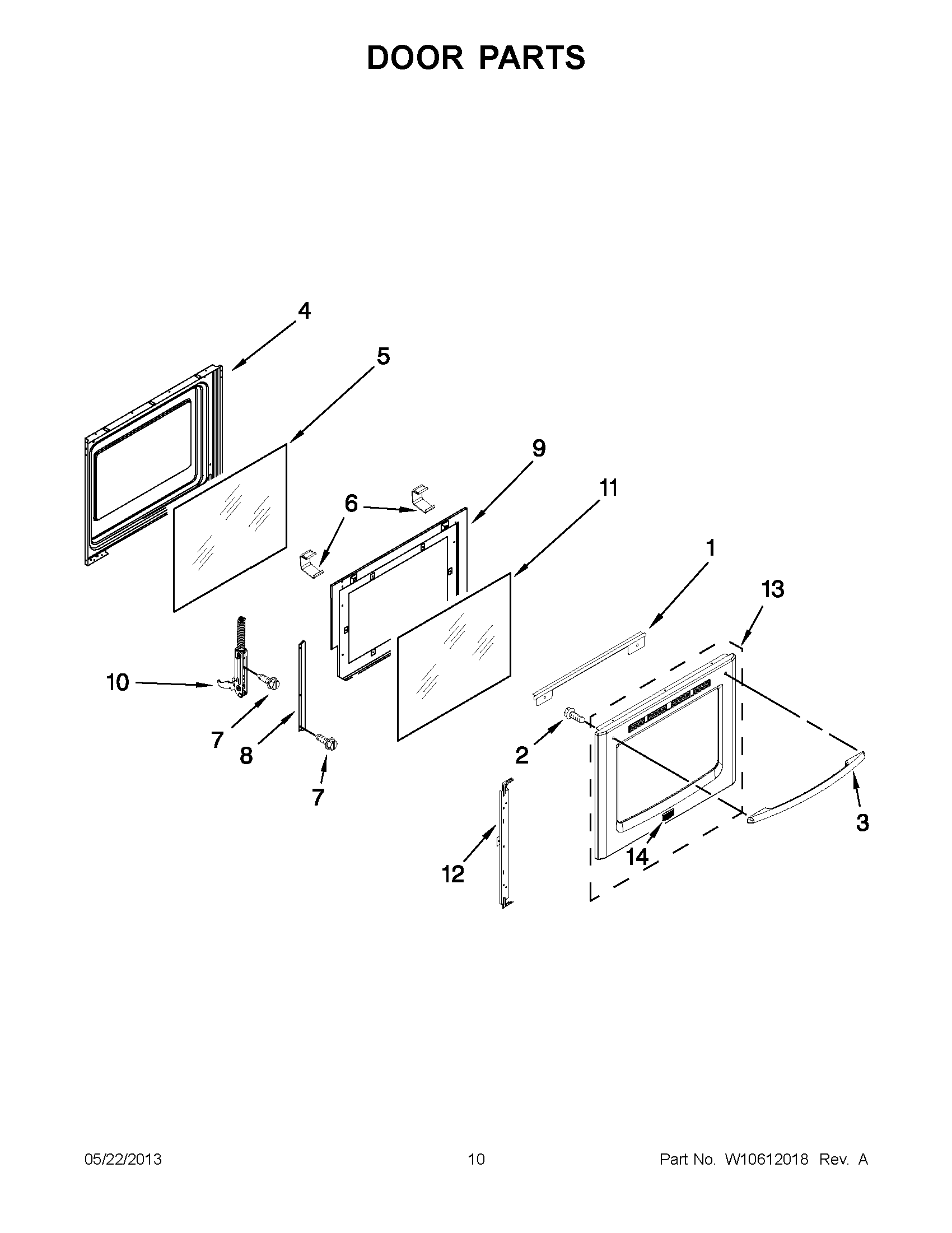

MGR8775AS1 05 – DOOR PARTS

Products

PositionProduct
1WPL W10330075
1TRIM, VENT (BLACK)
2WPW10317886 Whirlpool Screw
3WPW10161708 Whirlpool Door Handle
3WPW10171747 Whirlpool Door Handle
3WPW10171748 Whirlpool Door Handle
4WPW10297318 Whirlpool Door Liner
5WPW10300487 Whirlpool Door Glass
6W10137382 Whirlpool Clip
7WP3196175 Whirlpool Screw
8W10294852 Whirlpool Mounting Bracket
9W10294853 Whirlpool Mounting Bracket
10WPW10388635 Whirlpool Door Hinge
11WPW10615599 Whirlpool Door Glass
12W11116956 Whirlpool Support Bracket
13WPW10655838 Whirlpool Door Panel
13WPL W10325665
13WPL W10325666
14WPL W10429490
